HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) MUFFLER Parts Diagram
32" Snow Blower, Made in Japan

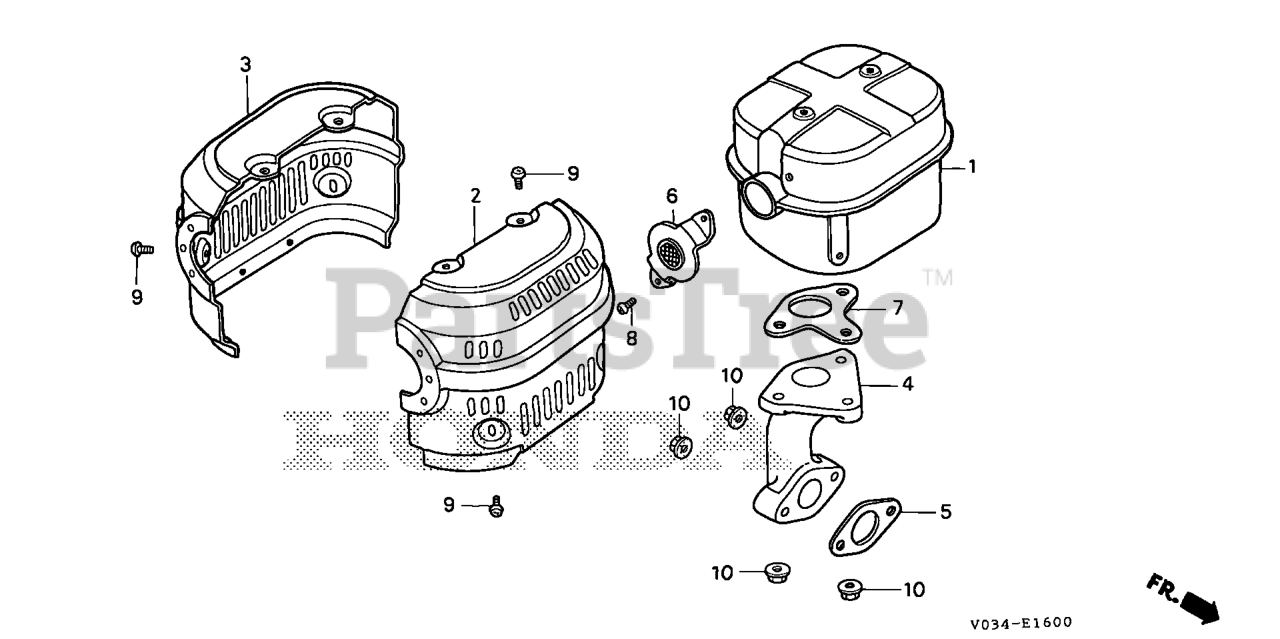

MUFFLER Parts Diagram
Honda 18310-ZE3-003
MUFFLER (Honda Code 2108041).
$131.99
$
Usually ships in 3-6 days
Honda 18320-ZE3-H01
SEE PART DETAILS - PRI; PROTECTOR, R. MUFFLER
$46.99
$
In Stock, only 1 left!
Honda 18325-ZE3-H00
PROTECTOR, L. MUFFLER
$60.99
$
In Stock, only 1 left!
Honda 18330-ZE2-000
PIPE, EX. (Honda Code 2026219).
$65.99
$
In Stock, only 1 left!
Honda 18333-ZE3-800
SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)
$4.99
$
In Stock, Qty 14
Honda 18333-ZK6-Y00
SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).
$4.99
$
In Stock, Qty 14
Honda 18336-ZE3-000
FLANGE, BAFFLE (Honda Code 2309581).
$12.99
$
Usually ships in 3-6 days
Honda 18381-ZE2-800
SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 3678810).
(Superseded to 18381-ZE2-801)
$10.99
$
In Stock, Qty 10
Honda 18381-ZE2-801
SEE PART DETAILS - PRI; GASKET, MUFFLER (NIPPON LEAKLESS)
$10.99
$
In Stock, Qty 10
Honda 90050-ZE1-000
SCREW, TAPPING (5X8) (Honda Code 1431105).
$1.99
$
In Stock, Qty 20+
Honda 90050-ZE3-H00
SCREW, TAPPING (5X8)
$2.99
$
Usually ships in 3-6 days
Honda 94050-08000
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).
$1.49
$
In Stock, Qty 20+
