HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) AUGER + BLOWER (2) Parts Diagram

36" Snow Blower, Made in Japan

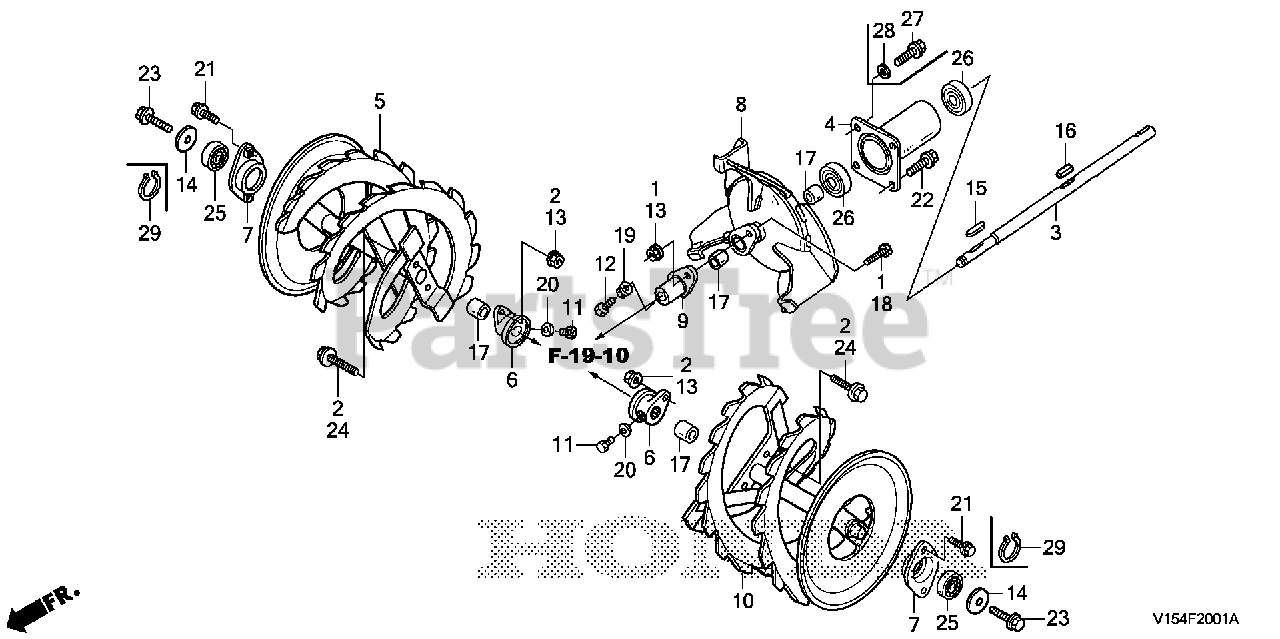

AUGER + BLOWER (2) Parts Diagram

  • Title

1

Honda 06921-V15-F00

BOLT SET, BLOWER

Note: (Optional).

$5.49

$

In Stock, only 1 left!

0

2

Honda 06957-V15-F00

BOLT SET, AUGER

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0

3

Honda 23376-V15-030

SHAFT, AUGER DRIVE

$303.99

$

Usually ships in 3-6 days

0

4

Honda 50120-V15-010

HOLDER, BEARING

$101.99

$

Usually ships in 3-6 days

0

5

Honda 72410-V15-305

AUGER, R. (COO)
(Superseded to 72410-V15-N11)

$542.99

$

Usually ships in 3-6 days

0

6

Honda 72419-V15-N00

FLANGE, AUGER SHEAR

$39.99

$

Usually ships in 3-6 days

0

7

Honda 72423-V15-000

HOLDER, AUGER BEARING

$16.99

$

Usually ships in 3-6 days

0

8

Honda 72440-V27-003

BLOWER

$296.99

$

Usually ships in 3-6 days

0

9

Honda 72446-V15-010

PIPE, JOINT

$131.99

$

Usually ships in 3-6 days

0

10

Honda 72450-V15-305

AUGER, L. (COO)
(Superseded to 72450-V15-N11)

$542.99

$

Usually ships in 3-6 days

0

11

Honda 90105-792-000

BOLT, SPECIAL (10X16)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 90106-V15-003

BOLT, SPECIAL (8X25)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (CLINCH)

$0.99

$

In Stock, Qty 20+

0

15

Honda 90758-V15-000

KEY (6X6X40)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 90762-V15-003

KEY (7X7X33)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 91551-V15-003

BUSH (25X28X25)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 92101-08025-0A

BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 7

0

19

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94111-10800

WASHER, SPRING (10MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 95701-08012-07

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

25

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$21.99

$

In Stock, Qty 7

0

26

Honda 96150-62050-10

BEARING, RADIAL BALL (6205UU)

$41.99

$

Usually ships in 3-6 days

0

27

Honda 90103-MW3-670

BOLT, FLANGE (8X20)

$4.99

$

Usually ships in 3-6 days

0

28

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94510-20000

CIRCLIP, OUTER (20MM)

$1.99

$

Usually ships in 3-6 days

0
