HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) CONTROL PANEL Parts Diagram

36" Snow Blower, Made in Japan

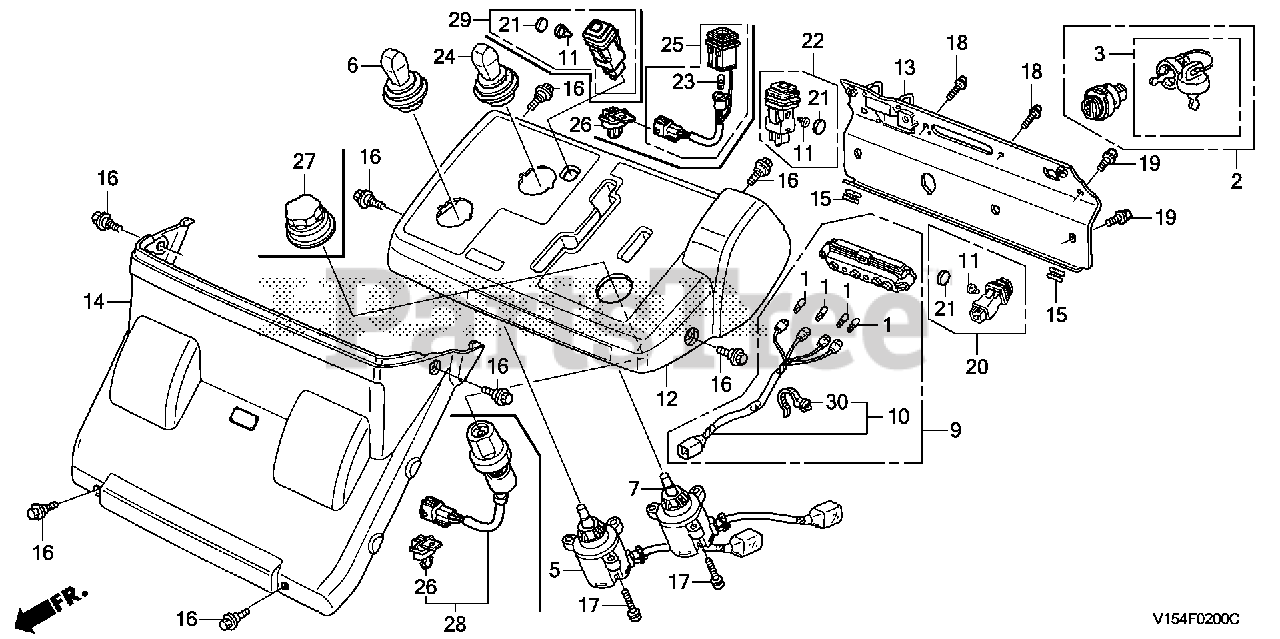

CONTROL PANEL Parts Diagram

  • Title

1

Honda 34908-V15-003

BULB, WEDGE BASE (24V 1.4W)

$3.99

$

Usually ships in 3-6 days

0

2

Honda 35100-V41-701

SWITCH ASSY., COMBINATION

$101.99

$

Usually ships in 3-6 days

0

3

Honda 35110-V15-004

KEY ASSY., COMBINATION SWITCH

$11.99

$

In Stock, only 2 left!

0

5

Honda 35360-797-631

SWITCH ASSY., CHUTE CONTROL

$193.99

$

Usually ships in 3-6 days

0

6

Honda 35362-797-631

BOOT, RUBBER (BLACK)

$7.99

$

Usually ships in 3-6 days

0

7

Honda 35360-797-631

SWITCH ASSY., CHUTE CONTROL

$193.99

$

Usually ships in 3-6 days

0

9

Honda 37155-V27-003

INDICATOR ASSY., WARNING

$119.99

$

Usually ships in 3-6 days

0

10

Honda 37159-V27-003

SOCKET

$71.99

$

Usually ships in 3-6 days

0

11

Honda 37560-V15-003

SOCKET ASSY., LAMP

$17.99

$

Usually ships in 3-6 days

0

12

Honda 54221-V27-000

PANEL, CONTROL

$247.99

$

Usually ships in 3-6 days

0

13

Honda 63360-V15-N00

PANEL, RR.

$145.99

$

Usually ships in 3-6 days

0

14

Honda 63531-V15-010ZA

COVER, FR. PANEL *NH296* (ALPS GRAY)

$107.99

$

Usually ships in 3-6 days

0

16

Honda 90123-V15-000

BOLT, CONTROL PANEL

$5.49

$

Usually ships in 3-6 days

0

17

Honda 93403-05020-08

BOLT-WASHER (5X20)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 93893-04016-07

SCREW-WASHER (4X16)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 5

0

21

Honda 35331-V15-003

CAP, VALVE

$7.49

$

Usually ships in 3-6 days

0

23

Honda 34351-V15-E01

BULB (28V/2.5W)

$17.99

$

Usually ships in 3-6 days

0

24

Honda 35362-V15-F01

BOOT, RUBBER (LIGHT GRAY)

$7.49

$

Usually ships in 3-6 days

0

25

Honda 35422-V15-E02

SEE PART DETAILS - SUP; SWITCH ASSY., CLUTCH ON OPERATING
(Superseded to 35422-V15-E03)

Note: Use up to Frame SN 5000216.

$43.99

$

Usually ships in 3-6 days

0

25

Honda 35422-V15-E03

SEE PART DETAILS - PRI; SWITCH ASSY., CLUTCH ON OPERATING

$43.99

$

Usually ships in 3-6 days

0

26

Honda 91565-S0X-003

CLIP, CONNECTOR (DARK GREEN)

$5.49

$

Usually ships in 3-6 days

0

27

Honda 22852-V15-N00

KNOB, MODE SELECT

$23.99

$

Usually ships in 3-6 days

0

28

Honda 35335-V27-003

SWITCH ASSY., MODE SELECT

$67.99

$

Usually ships in 3-6 days

0

29

Honda 35422-V15-033

SWITCH ASSY., CLUTCH ON OPERATING

$46.99

$

Usually ships in 3-6 days

0

30

Honda 91551-SF4-003

BAND, WIRE HARNESS (110MM) (BROWN)

$10.99

$

Usually ships in 3-6 days

0
