HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) CONTROL UNIT (2) Parts Diagram

36" Snow Blower, Made in Japan

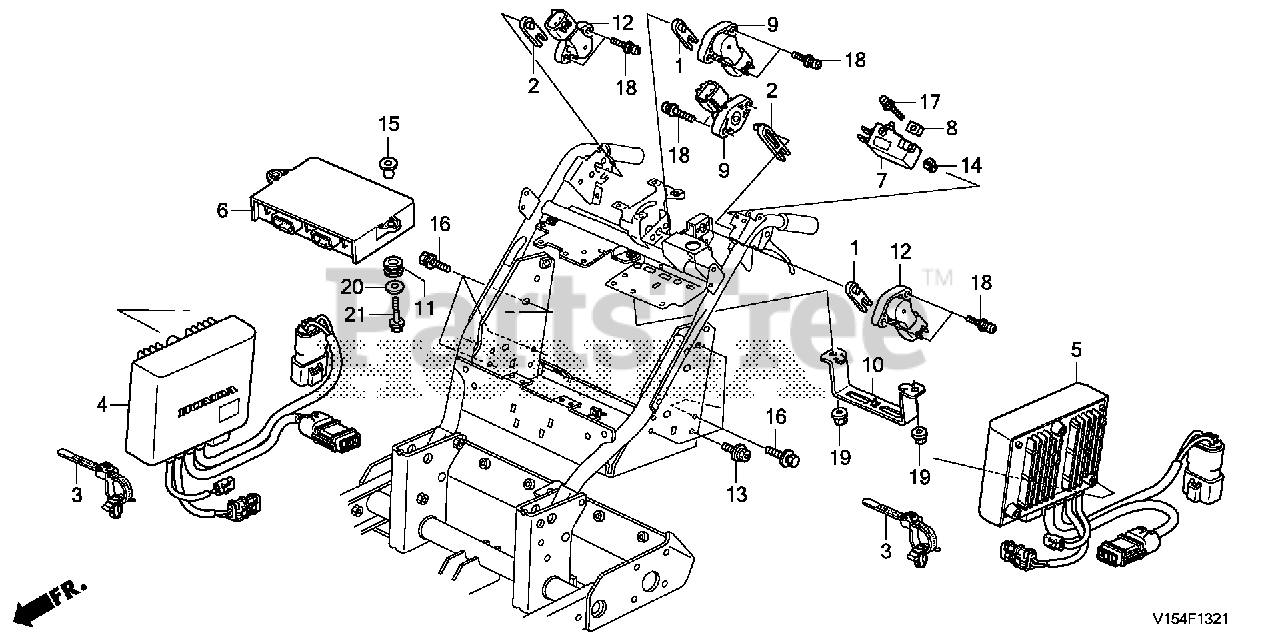

CONTROL UNIT (2) Parts Diagram

  • Title

1

Honda 24412-V15-000

ARM, CHANGE LEVER

$32.99

$

Usually ships in 3-6 days

0

2

Honda 24419-V15-000

ARM, TURN LEVER

$8.99

$

Usually ships in 3-6 days

0

3

Honda 32161-V15-003

BAND, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

4

Honda 34330-V15-N01

CONTROL UNIT, R.

$881.99

$

Usually ships in 3-6 days

0

5

Honda 34335-V15-N01

CONTROL UNIT, L.

$881.99

$

Usually ships in 3-6 days

0

6

Honda 34750-V15-N01

CONTROL UNIT, ELECTRONIC

$1223.99

$

Usually ships in 3-6 days

0

7

Honda 35340-HR0-305

SEE PART DETAILS - PRI; SWITCH ASSY., FR. STOP (COO)

$24.99

$

Usually ships in 3-6 days

0

7

Honda 35340-ML4-005

SEE PART DETAILS - SUP; SWITCH ASSY., FR. STOP (OMRON)
(Superseded to 35340-HR0-305)

$24.99

$

Usually ships in 3-6 days

0

8

Honda 35345-HF1-830

COLLAR, STOP SWITCH

$7.99

$

Usually ships in 3-6 days

0

9

Honda 35750-V15-003

SENSOR ASSY., ANGLE

$106.99

$

Usually ships in 3-6 days

0

10

Honda 38217-V15-000

BRACKET, FUSE

$12.99

$

Usually ships in 3-6 days

0

11

Honda 38551-ZW1-000

GROMMET, RELAY

$8.49

$

Usually ships in 3-6 days

0

12

Honda 38800-HN5-A11

SENSOR ASSY., ANGLE

$111.99

$

Usually ships in 3-6 days

0

13

Honda 90148-SE0-003

BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

$10.99

$

Usually ships in 3-6 days

0

14

Honda 90201-Z0H-J00

NUT, SPECIAL (4MM)

Note: Use up to Frame SN 5000216.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90201-Z0H-J01

NUT, SPECIAL (4MM)

Note: Use from Frame SN 5000217.

$1.99

$

Usually ships in 3-6 days

0

15

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 93403-06020-07

BOLT-WASHER (6X20)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 93893-04025-08

SCREW-WASHER (4X25)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 93893-05018-00

SCREW-WASHER (5X18) (NOT AVAILABLE)

$

$

Not available

19

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 94103-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, only 2 left!

0

21

Honda 95701-06022-00

BOLT, FLANGE (6X22)

$2.49

$

In Stock, Qty 5

0
