HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) FUEL TANK (2) Parts Diagram

36" Snow Blower, Made in Japan

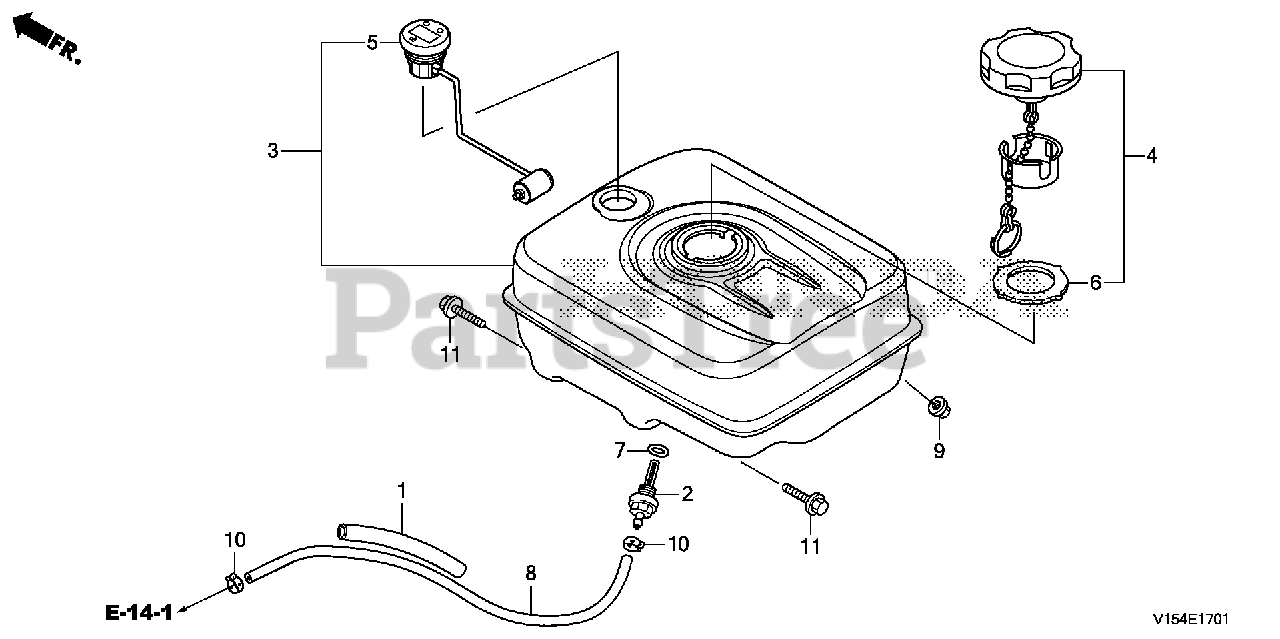

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 9

0

2

Honda 16955-ZE1-010

JOINT, FUEL TANK

$7.99

$

In Stock, Qty 17

0

3

Honda 17500-Z5T-810ZE

TANK ASSY., FUEL *R280* (GAUGE) (POWER RED)
(Superseded to 17500-Z5T-811ZE)

$110.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 1211806.

$69.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

$69.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$69.99

$

Usually ships in 3-6 days

0

5

Honda 17630-Z5T-003

GAUGE ASSY., FUEL

$36.99

$

Usually ships in 3-6 days

0

6

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

$0.99

$

In Stock, Qty 8

0

7

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.49

$

In Stock, Qty 14

0

7

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.49

$

In Stock, Qty 14

0

8

Honda 91424-Z5T-003

TUBE, FUEL (4.5X235) (FKM)
(Superseded to 91424-Z5T-013)

$12.99

$

Usually ships in 3-6 days

0

9

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

10

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 17

0

11

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

Usually ships in 3-6 days

0
