HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) WIRE HARNESS Parts Diagram

36" Snow Blower, Made in Japan

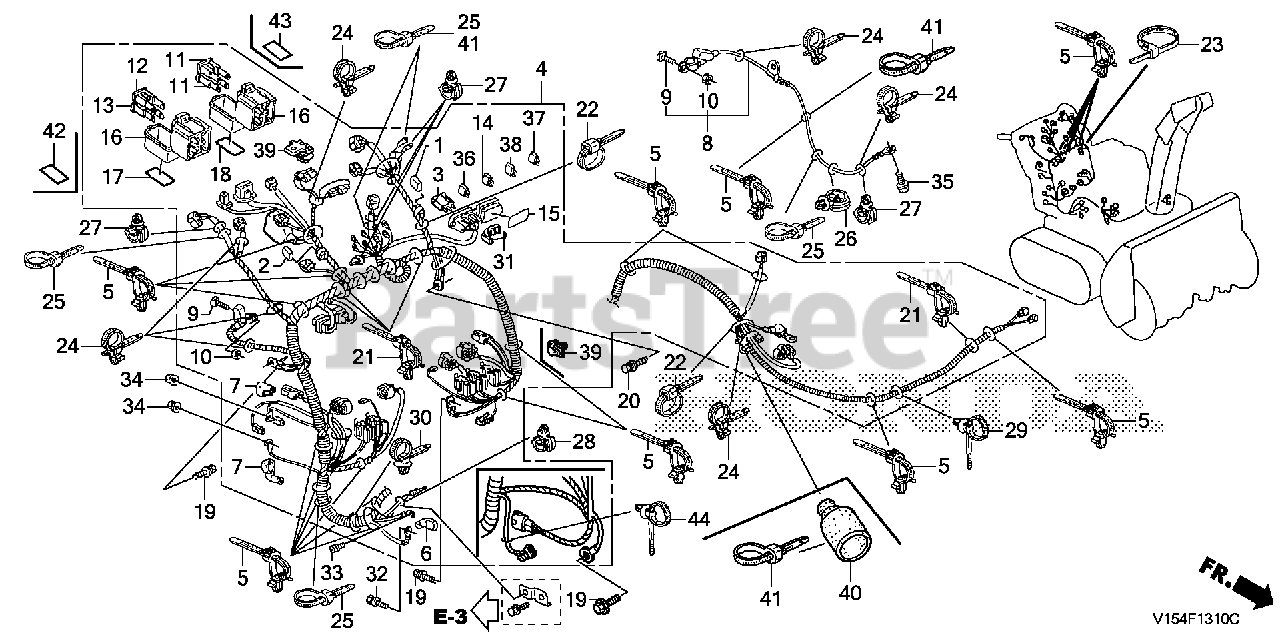

WIRE HARNESS Parts Diagram

  • Title

4

Honda 32100-V15-N10

WIRE HARNESS ASSY., MAIN

$893.99

$

Usually ships in 3-6 days

0

5

Honda 32161-V15-003

BAND, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

8

Honda 32600-V15-N30

CABLE ASSY., GROUND

$36.99

$

Usually ships in 3-6 days

0

9

Honda 32601-SK7-900

BOLT, BATTERY TERMINAL

$11.99

$

Usually ships in 3-6 days

0

10

Honda 32602-SK7-900

NUT, BATTERY TERMINAL

$6.99

$

Usually ships in 3-6 days

0

11

Honda 38201-V15-003

FUSE (80A) (BLOCK)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 38202-762-003

FUSE, BLOCK (70A)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 38219-V15-N00

LABEL, BLADE FUSE

$6.99

$

Usually ships in 3-6 days

0

16

Honda 38221-762-003

CASE, MAIN FUSE

$24.99

$

Usually ships in 3-6 days

0

17

Honda 87117-V15-N00

MARK, MAIN FUSE

$7.99

$

Usually ships in 3-6 days

0

18

Honda 87118-V15-000

MARK, MOTOR FUSE

$7.49

$

Usually ships in 3-6 days

0

19

Honda 90148-SE0-003

BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90148-759-013

BOLT (6X19 SN)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL)

$8.49

$

Usually ships in 3-6 days

0

22

Honda 90650-KV6-003

BAND, WIRE (95MM)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 90672-SB2-003

STRAP, CABLE (105MM) (BLACK)

$6.99

$

Usually ships in 3-6 days

0

25

Honda 90679-SG9-E01

BAND, SUCTION HOSE (BLACK)

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$11.99

$

Usually ships in 3-6 days

0

29

Honda 91507-SL9-003

CLIP, WIRE HARNESS (110MM) (7MM HOLE) (GREEN)

$8.49

$

Usually ships in 3-6 days

0

31

Honda 91565-SH3-003

CLIP, CONNECTOR HOLDER (BROWN)

$7.99

$

Usually ships in 3-6 days

0

35

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

36

Honda 98200-40500

FUSE, MINI (5A)

$1.99

$

In Stock, only 3 left!

0

37

Honda 98200-41500

FUSE, MINI (15A)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 91565-S0X-003

CLIP, CONNECTOR (DARK GREEN)

$4.49

$

Usually ships in 3-6 days

0

40

Honda 32108-KFG-000

COVER, CONNECTOR (NOT AVAILABLE)

$4.49

$

Usually ships in 3-6 days

0

41

Honda 90651-KV6-003

BAND, WIRE (165MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

44

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0
