HS35 A (HS35) - Honda Snow Blower, Made in Japan (SN: HS35-1000001 - HS35-9999999) CAMSHAFT Parts Diagram

Snow Blower, Made in Japan

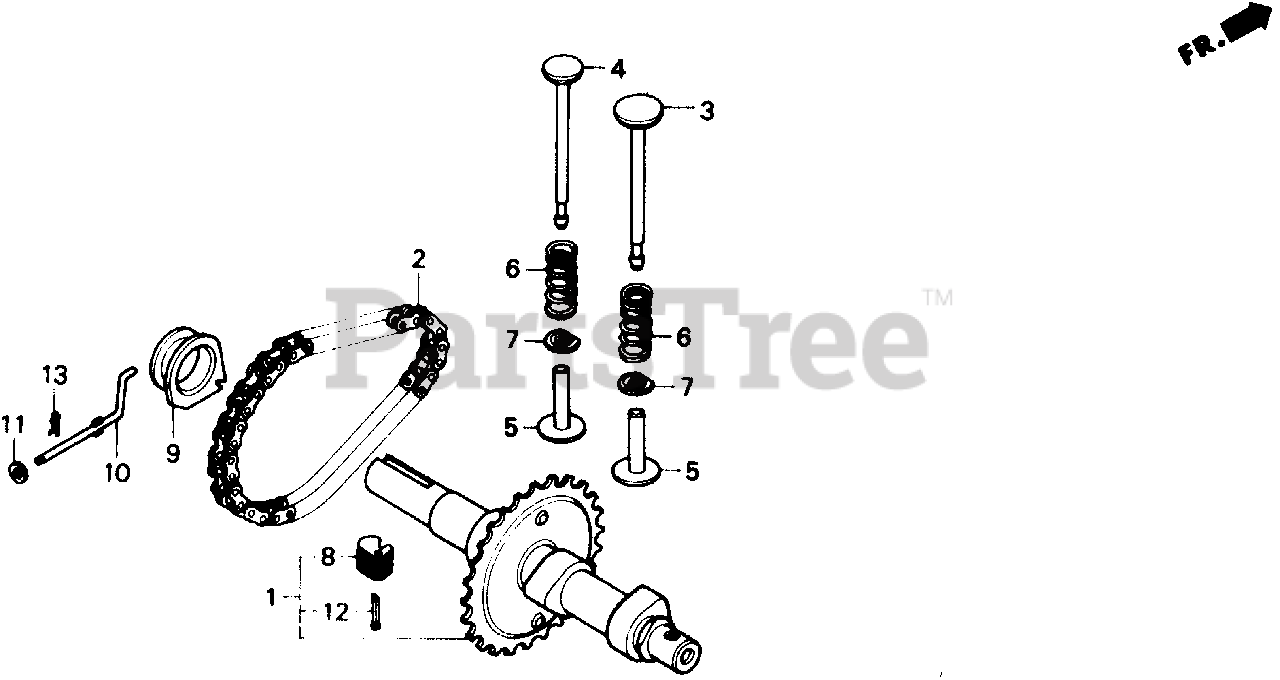

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-887-611

CAMSHAFT ASSY.

$

$

Not available

2

Honda 14411-883-612

SEE PART DETAILS - SUP; CHAIN, CAM

$

$

Currently unavailable

3

Honda 14711-887-000

VALVE, IN.

$20.99

$

Usually ships in 3-6 days

0

4

Honda 14721-887-000

VALVE, EX.

$34.99

$

Usually ships in 3-6 days

0

5

Honda 14740-887-010

SEE PART DETAILS - PRI; LIFTER, VALVE (34.39)

$

$

Not available

5

Honda 14749-887-010

LIFTER, VALVE (34.66)

$

$

Not available

6

Honda 14751-883-000

SPRING, VALVE

$6.99

$

Usually ships in 3-6 days

0

7

Honda 14771-883-305

RETAINER, VALVE SPRING

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.99

$

Usually ships in 3-6 days

0

9

Honda 16531-883-010

SLIDER, GOVERNOR

$

$

Not available

10

Honda 16541-883-000

SHAFT, GOVERNOR ARM

$

$

Not available

11

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

12

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

13

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0
