HS35 A (HS35) - Honda Snow Blower, Made in Japan (SN: HS35-1000001 - HS35-9999999) MUFFLER Parts Diagram

Snow Blower, Made in Japan

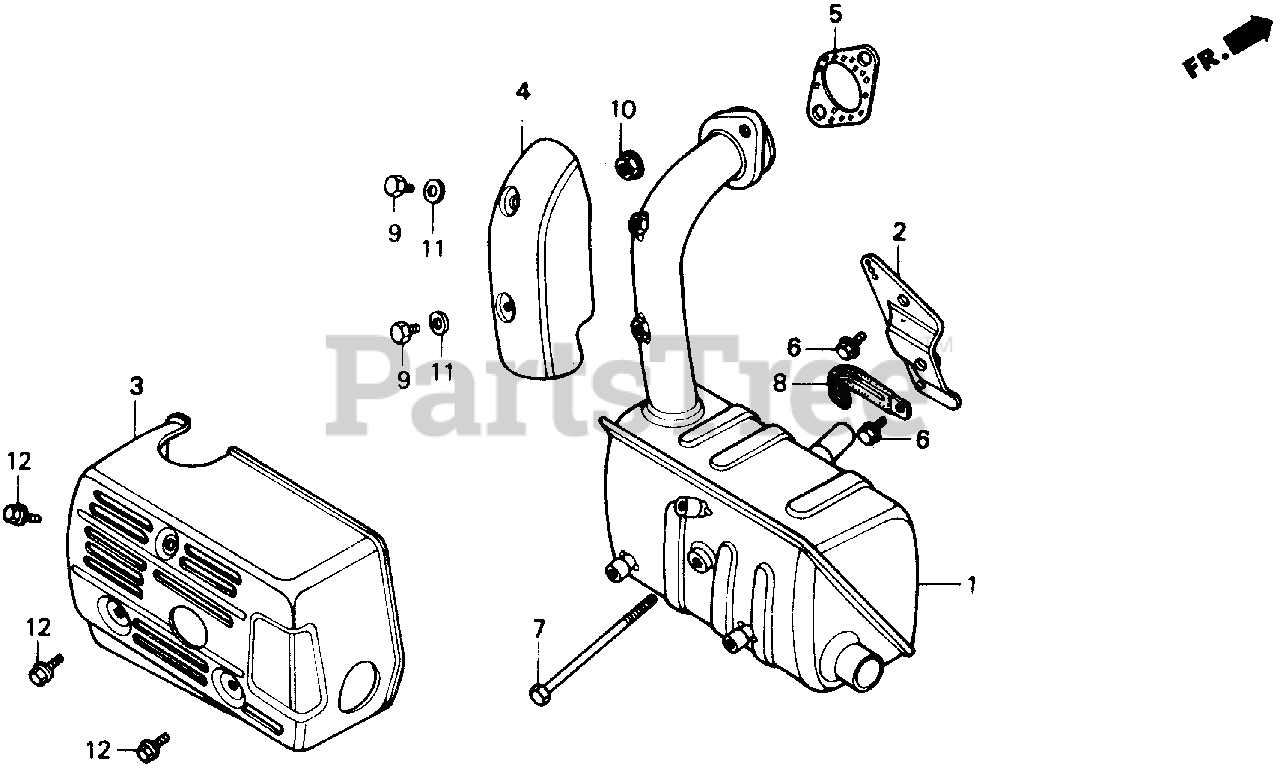

MUFFLER Parts Diagram

  • Title

1

Honda 18310-730-000

MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18312-730-000

STAY, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 18320-730-010

PROTECTOR, MUFFLER

$

$

Currently unavailable

4

Honda 18323-730-000

PROTECTOR, EX. PIPE

$

$

Not available

5

Honda 18381-883-800

GASKET, MUFFLER

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

7

Honda 90120-065-000

BOLT, HEX. (8X113)

$

$

Not available

8

Honda 91405-671-000

CLIP, CABLE

$11.99

$

Usually ships in 3-6 days

0

9

Honda 92100-06006-0H

BOLT, HEX. (6X6) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0
