HS35 A (HS35) - Honda Snow Blower, Made in Japan (SN: HS35-1000001 - HS35-9999999) WHEEL Parts Diagram

Snow Blower, Made in Japan

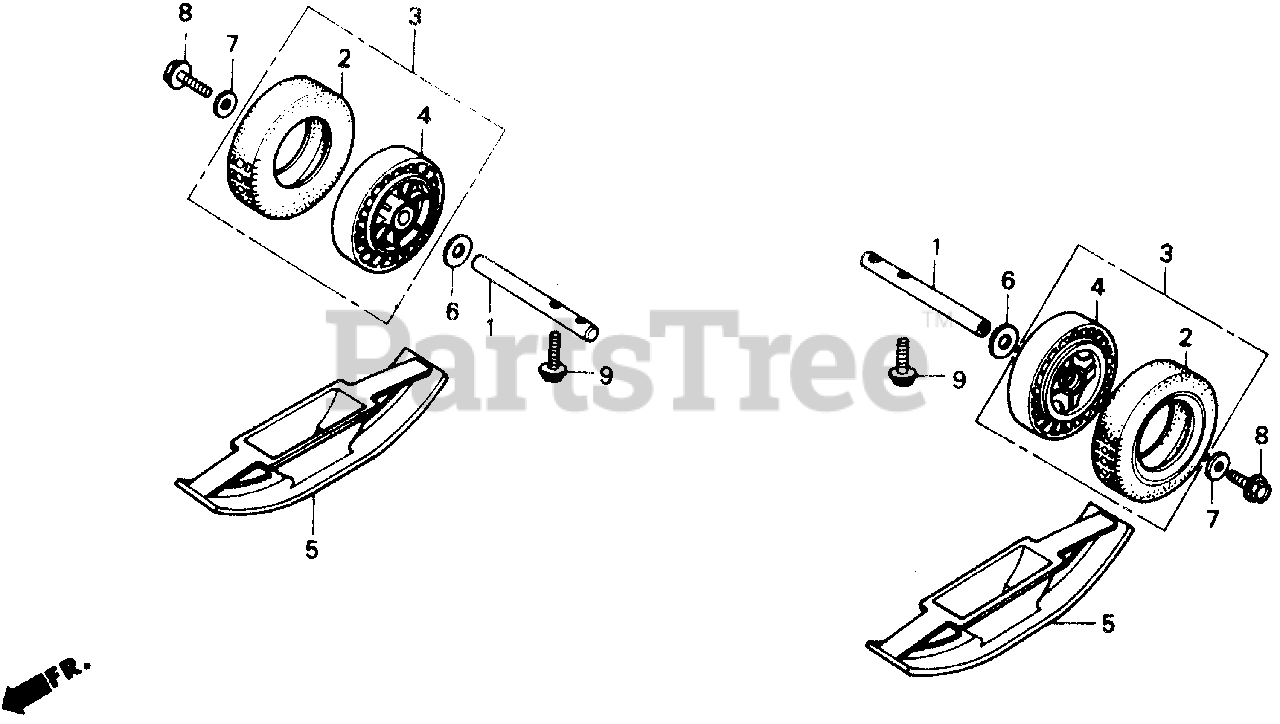

WHEEL Parts Diagram

  • Title

1

Honda 42310-730-000

SHAFT, WHEEL

$

$

Currently unavailable

2

Honda 42751-952-000

TIRE, FR. (7INCH)

$24.99

$

In Stock, only 2 left!

0

3

Honda 42800-730-000

SEE PART DETAILS - SUP; WHEEL ASSY.
(Superseded to 42800-730-010)

Note: Use up to Frame SN 1068633.

$

$

Not available

3

Honda 42800-730-010

SEE PART DETAILS - PRI; WHEEL ASSY. (NOT AVAILABLE)

Note: Use from Frame SN 1068634.

$

$

Not available

4

Honda 42810-730-000XC

SEE PART DETAILS - SUP; HUB, WHEEL *NH31* (MCKINLEY WHITE)

$

$

Not available

5

Honda 42821-730-811

SLED

$

$

Not available

6

Honda 90408-952-000

WASHER (15MM)

$

$

Not available

7

Honda 90430-657-000

WASHER (8MM)

Note: Use from Frame SN 1006117.

$8.49

$

In Stock, only 2 left!

0

7

Honda 94103-08800

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1006116.

$1.49

$

In Stock, Qty 10

0

8

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$1.99

$

In Stock, Qty 6

0
