HS50-67325K - Tecumseh Engine Engine Parts List #1 Parts Diagram

Engine

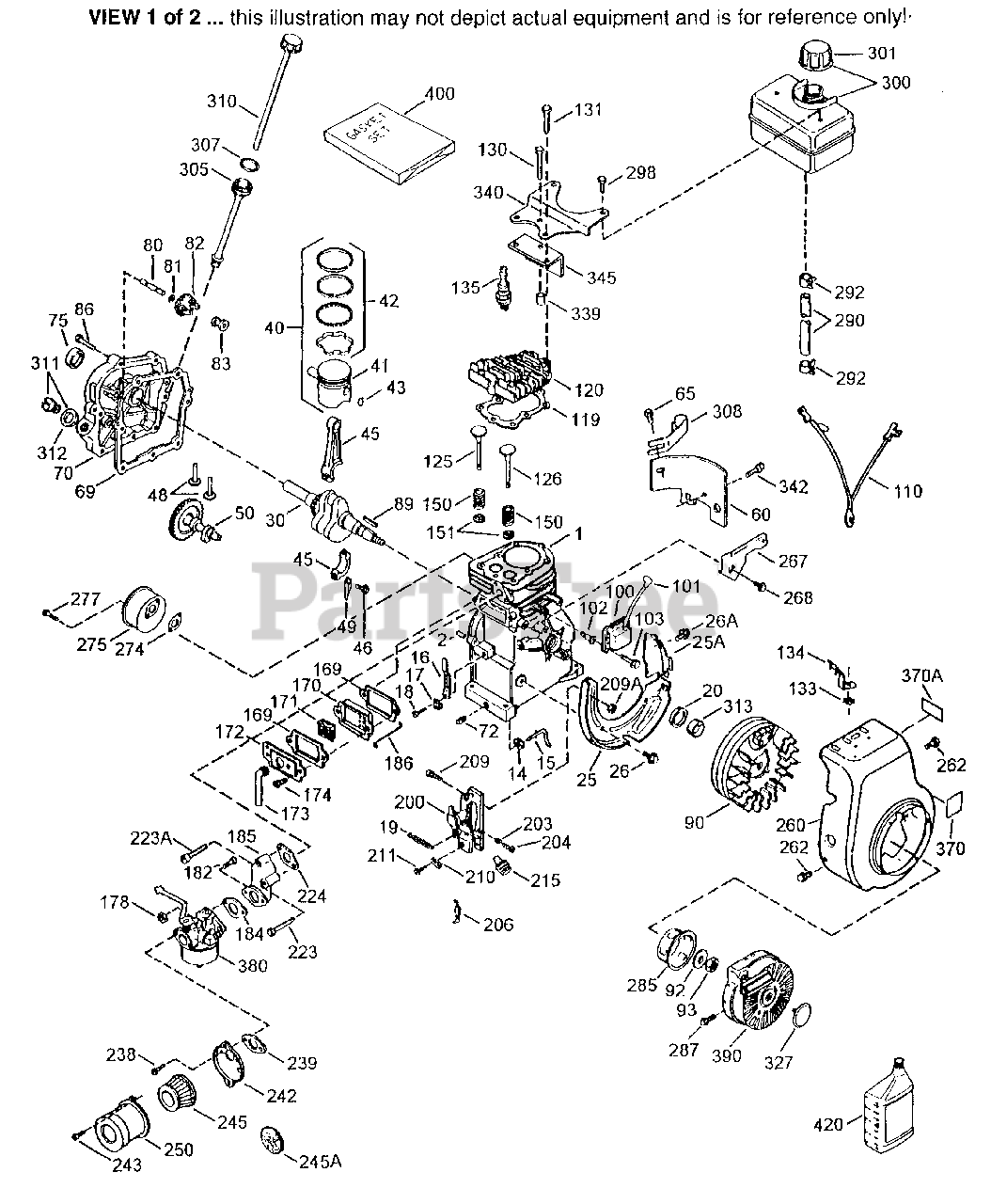

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 36469A

"Cylinder (Incl. 2, 20, 72 & 125)

$

$

Not available

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 631184

Washer

$1.99

$

In Stock, Qty 18

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 31334

Governor Rod

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 31510

Governor Lever
(Superseded to 37735)

$13.99

$

In Stock, Qty 10

0

17

Tecumseh 31335

Governor Lever Clamp

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 651018

Screw, T-15, 8-32 X 19/64"

$1.99

$

In Stock, Qty 18

0

19

Tecumseh 31426

Extension Spring

$3.99

$

In Stock, Qty 20+

0

20

Tecumseh 32600

Oil Seal

$

$

Not available

25A

Tecumseh 35883

Baffle Extension

$1.99

$

In Stock, Qty 5

0

30

Tecumseh 34728

Crankshaft (Incl. 75)

$130.99

$

Usually ships in 3-12 days

0

40

Tecumseh 40004

Piston, Pin & Ring Set (Std.) (Incl. 41, 42 & 43)

$74.99

$

In Stock, only 1 left!

0

40

Tecumseh 40005

Piston, Pin & Ring Set (.010" OS) (In cl. 41, 42 & 43)
(Superseded to 40045)

$

$

Not available

42

Tecumseh 40006

Ring Set (Std.)

$42.99

$

In Stock, only 4 left!

0

42

Tecumseh 40007

Ring Set (.010" OS)
(Superseded to 40045)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

43

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 12

0

44

Tecumseh 27110A

Washer

$2.49

$

In Stock, Qty 20+

0

45

Tecumseh 32875A

Connecting Rod Assembly (Incl. 46 & 4 9)

$47.99

$

In Stock, only 1 left!

0

46

Tecumseh 32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

49

Tecumseh 32654

Oil Dipper

$8.99

$

In Stock, only 4 left!

0

50

Tecumseh 33158

Camshaft (BCR)
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

60

Tecumseh 29745

Blower Housing Extension

$3.99

$

Usually ships in 3-12 days

0

65

Tecumseh 30200

Screw, 10-24 X 9/16"

$1.49

$

In Stock, Qty 20+

0

69

Tecumseh 27677A

Cylinder Cover Gasket

$7.49

$

In Stock, Qty 17

0

70

Tecumseh 30756C

Cylinder Cover (Incl. 75 Thru 83 & 31 1)

$108.99

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Oil Drain Plug (Sq. Hd., 1/4-18)

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 28540

Oil Seal

$7.49

$

In Stock, only 1 left!

0

80

Tecumseh 30574A

Governor Shaft

$7.49

$

In Stock, Qty 6

0

81

Tecumseh 30590A

Flat Washer

$1.99

$

In Stock, Qty 8

0

82

Tecumseh 30591

Governor Gear Assembly (Incl. 81)

$13.99

$

In Stock, Qty 12

0

86

Tecumseh 650488

Screw, 1/4-20 X 1-1/4"

$1.99

$

In Stock, only 4 left!

0

89

Tecumseh 610961

Flywheel Key

$1.49

$

In Stock, Qty 20+

0

90

Tecumseh 611195

Flywheel

$

$

Not available

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 13

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 12

0

100

Tecumseh 34443C

Solid State Ignition
(Superseded to 34443D)

$44.99

$

In Stock, Qty 20+

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, Qty 18

0

102

Tecumseh 651024

Solid State Mounting Stud

$3.99

$

In Stock, Qty 7

0

103

Tecumseh 651007

Screw, T-15, 10-24 X 15/16"

$1.99

$

In Stock, Qty 5

0

110

Tecumseh 35182

Ground Wire

$1.99

$

In Stock, only 3 left!

0

119

Tecumseh 36443

Cylinder Head Gasket

$5.99

$

In Stock, Qty 10

0

120

Tecumseh 36441

Cylinder Head (Incl. 130A)
(Superseded to 37675)

$41.99

$

Usually ships in 3-12 days

0

125

Tecumseh 36471

Exhaust Valve (Std.) (Incl. 151)

$13.99

$

In Stock, only 1 left!

0

125

Tecumseh 36472

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 32644A

Intake Valve (Std.) (Incl. 151)

$9.99

$

In Stock, Qty 8

0

126

Tecumseh 32645A

Intake Valve (1/32" OS) (Incl. 151)

$61.99

$

In Stock, only 2 left!

0

130B

Tecumseh 650737

Screw, 1/4-20 X 1/2"

$1.99

$

In Stock, Qty 9

0

130

Tecumseh 6021A

Screw, 5/16-18 X 1-7/16"

$1.99

$

In Stock, Qty 6

0

130

Tecumseh 650694A

Screw, 5/16-18 X 2"

$3.49

$

In Stock, Qty 6

0

135

Tecumseh 33636

Resistor Spark Plug (Rj17Lm)

$5.49

$

In Stock, Qty 18

0

150

Tecumseh 31672

Valve Spring

$1.99

$

In Stock, Qty 17

0

151

Tecumseh 31673

Valve Spring Cap

$1.99

$

In Stock, Qty 6

0

169

Tecumseh 27234A

Valve Cover Gasket

$5.99

$

In Stock, Qty 11

0

170

Tecumseh 27666

Breather Body

$14.99

$

In Stock, Qty 7

0

171

Tecumseh 31410

Breather Element

$1.99

$

In Stock, Qty 20+

0

172

Tecumseh 38020

Valve Cover

$

$

Not available

174

Tecumseh 650128

Screw, 10-24 X 1/2"

$5.49

$

In Stock, only 2 left!

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 5

0

181

Tecumseh 650870

Screw, 1/4-28 X 1-11/16"

$1.99

$

In Stock, Qty 5

0

182

Tecumseh 6201

Screw, 1/4-28 X 7/8"

$

$

Not available

184

Tecumseh 26756

Carburetor To Intake Pipe Gasket

$2.99

$

In Stock, Qty 20+

0

185

Tecumseh 33666

Intake Pipe

$

$

Not available

186

Tecumseh 32698

Governor Link

$1.99

$

In Stock, Qty 13

0

200

Tecumseh 36677

Control Bracket (Manual/Remote Conver tible) (Incl. 203 Thru 209A

$47.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 2 left!

0

204

Tecumseh 651029

Screw, T-10, 5-40 X 7/16"

$1.99

$

In Stock, only 4 left!

0

206

Tecumseh 610973

Terminal - Shorting On-Off

$3.99

$

In Stock, only 3 left!

0

212A

Tecumseh 36688

Bearing Plate

$

$

Not available

212

Tecumseh 36689

Speed Control Lever Bushing

$

$

Not available

215

Tecumseh 32410

Speed Control Knob

$5.49

$

In Stock, Qty 6

0

216

Tecumseh 36690

R.P.M. Adjusting Lever

$3.49

$

Usually ships in 3-12 days

0

217

Tecumseh 36687

Speed Control Lever

$

$

Not available

222

Tecumseh 28820

Screw, 10-32 X 1/2"
(Superseded to 651081)

$4.49

$

In Stock, Qty 6

0

223A

Tecumseh 30646

Screw, 1/4-20 X 1-3/8"

$8.99

$

In Stock, only 2 left!

0

223

Tecumseh 650664

Screw, 1/4-20 X 1-19/32"

$1.99

$

In Stock, Qty 11

0

224

Tecumseh 33673A

Intake Pipe Gasket

$5.99

$

In Stock, only 2 left!

0

238

Tecumseh 650152

Screw, 8-32 X 3/8"

$2.49

$

In Stock, only 2 left!

0

239

Tecumseh 27272A

Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

242

Tecumseh 31914

Air Cleaner Base

$22.99

$

Usually ships in 3-12 days

0

245

Tecumseh 30727

Air Filter (Paper)

$7.49

$

In Stock, Qty 20+

0

250

Tecumseh 31715

Air Cleaner Cover

$21.99

$

In Stock, Qty 7

0

260

Tecumseh 37600

Blower Housing

$48.99

$

In Stock, only 2 left!

0

264A

Tecumseh 650802

Screw, 1/4-20 X 5/8"

$1.99

$

In Stock, only 2 left!

0

267

Tecumseh 34212

Hold Down Bracket

$1.99

$

In Stock, Qty 5

0

285

Tecumseh 36467A

Starter Cup

$9.99

$

In Stock, only 1 left!

0

287

Tecumseh 650926

Screw, 8-32 X 21/64"

$1.49

$

In Stock, Qty 19

0

290

Tecumseh 29774

Fuel Line (8.62")

$34.99

$

In Stock, Qty 16

0

290

Tecumseh 30705

Fuel Line (16")

$16.99

$

In Stock, only 1 left!

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Fuel Shut-Off Valve (Incl. 292)

$13.99

$

In Stock, only 3 left!

0

298

Tecumseh 650665

Screw, 1/4-15 X 3/4"

$1.99

$

In Stock, Qty 6

0

300

Tecumseh 35584

Fuel Tank (Incl. 292 & 301) (2 Quart)

$45.99

$

In Stock, Qty 5

0

301

Tecumseh 36246

Fuel Cap (Black)
(Superseded to 37844)

$5.99

$

In Stock, Qty 20+

0

305

Tecumseh 35554

Oil Fill Tube

$19.99

$

In Stock, only 3 left!

0

307

Tecumseh 35499

O-Ring

$1.49

$

In Stock, Qty 20+

0

310

Tecumseh 35582

Dipstick

$5.49

$

Usually ships in 3-12 days

0

311

Tecumseh 27625

Oil Fill Plug (Incl. 312)

$2.49

$

In Stock, Qty 14

0

312

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, Qty 7

0

313

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

340

Tecumseh 36247

Fuel Tank Bracket

$11.99

$

Usually ships in 3-12 days

0

342

Tecumseh 650751

Screw, 1/4-20 X 7/16"

$1.99

$

In Stock, Qty 5

0

345

Tecumseh 33344

Heat Baffle

$5.49

$

In Stock, only 1 left!

0

355

Tecumseh 590574

Starter Handle (Mitten Grip)

$5.49

$

Usually ships in 3-12 days

0

370

Tecumseh 35274

Decal - Important Lubrication - Sae 3

$2.49

$

In Stock, only 1 left!

0

370

Tecumseh 35703

Speed Control Decal

$2.49

$

In Stock, only 1 left!

0

370

Tecumseh 36695

Decal - Tecumseh Logo For Top Of Reco il Starter

$2.49

$

In Stock, only 1 left!

0

380

Tecumseh 631923

Carburetor (Incl. 184)

$121.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590742

Rewind Starter
(Superseded to 590787)

$53.99

$

In Stock, only 1 left!

0

400

Tecumseh 36442

* Gasket Set (Incl. Items Marked *)

$25.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730225A

Sae 30 4-Cycle Engine Oil (Quart) (Su mmer)

$8.99

$

In Stock, only 2 left!

0
