HS50 TA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000534 - HS50-9999999) CHUTER + CHUTER HANDLE Parts Diagram

Snow Blower, Made in Japan

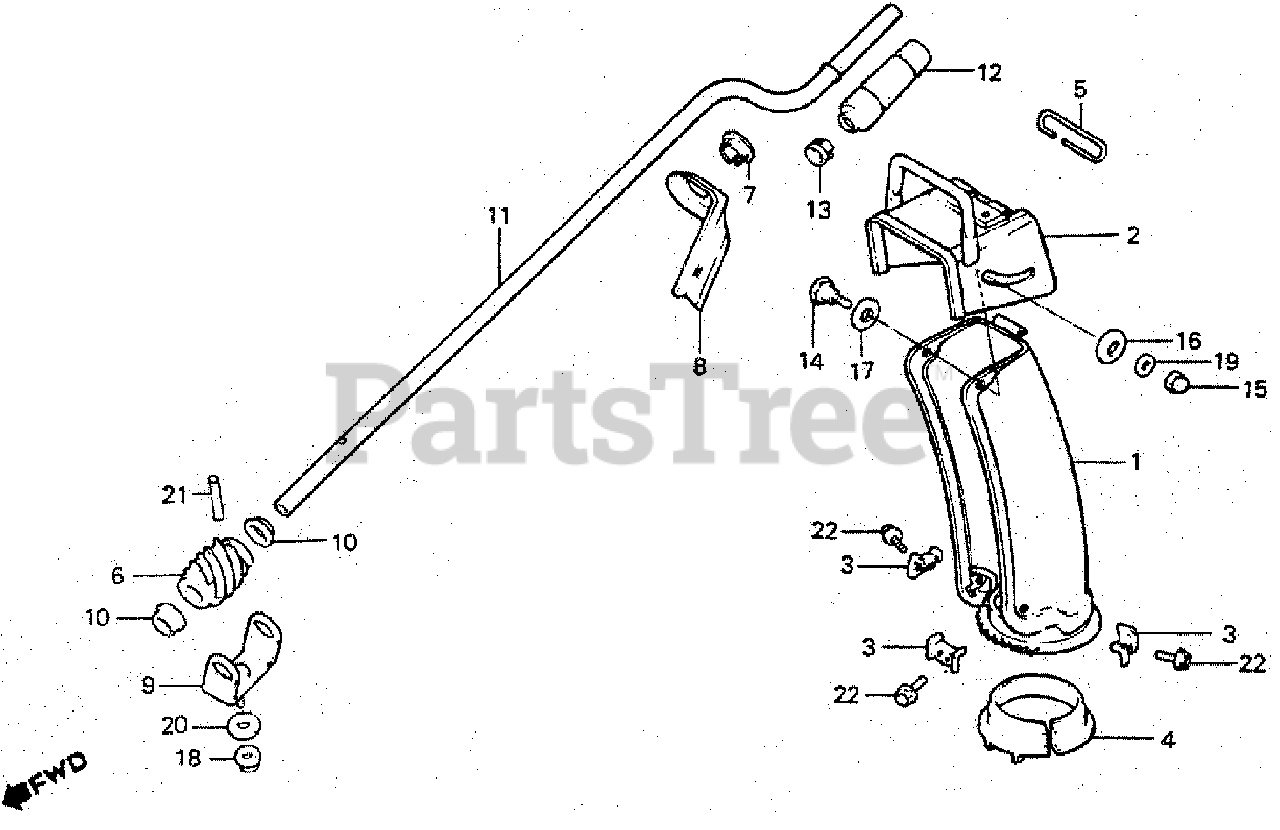

CHUTER + CHUTER HANDLE Parts Diagram

  • Title

1

Honda 76310-732-000

CHUTE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 76320-732-000

GUIDE, CHUTE

$

$

Currently unavailable

3

Honda 76321-732-000

PLATE, CHUTE SETTING

$

$

Currently unavailable

4

Honda 76325-732-000

BUSH, CHUTE

$

$

Not available

5

Honda 76326-732-010

PIN, CHUTE GUIDE

$

$

Not available

6

Honda 76331-730-000

GEAR, CHUTE DRIVE

$63.99

$

Usually ships in 3-6 days

0

7

Honda 76336-730-000

BUSH, CHUTE HANDLE

$5.99

$

In Stock, only 2 left!

0

8

Honda 76337-732-670

BRACKET, HANDLE

$

$

Currently unavailable

9

Honda 76341-732-000

STAY, DRIVE GEAR

Note: Use up to Frame SN 1011042.

$

$

Currently unavailable

9

Honda 76341-732-010

STAY, DRIVE GEAR (NOT AVAILABLE)

Note: Use from Frame SN 1011043.

$

$

Currently unavailable

10

Honda 76343-732-000

BUSH, DRIVE GEAR

$5.49

$

In Stock, only 2 left!

0

11

Honda 76350-732-000

HANDLE, CHUTE (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 76351-730-000

GRIP, CHUTE HANDLE

$11.99

$

Usually ships in 3-6 days

0

13

Honda 76352-730-000

BUSH A, CHUTE HANDLE

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90010-730-000

SCREW, PIVOT

$

$

Not available

15

Honda 90201-415-000

NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90455-881-000

SPRING, LEVER

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90527-230-000

SEE PART DETAILS - PRI; WASHER, PLAIN (10.3MM)

$2.49

$

In Stock, only 3 left!

0

18

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94305-40322

PIN, SPRING (4X32)

$2.99

$

In Stock, only 2 left!

0

22

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1000542.

$

$

Not available

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Frame SN 1000543.

$1.49

$

In Stock, Qty 20+

0

22

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1000542.

$1.99

$

In Stock, Qty 20+

0
