HS50 TA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000534 - HS50-9999999) FLYWHEEL Parts Diagram

Snow Blower, Made in Japan

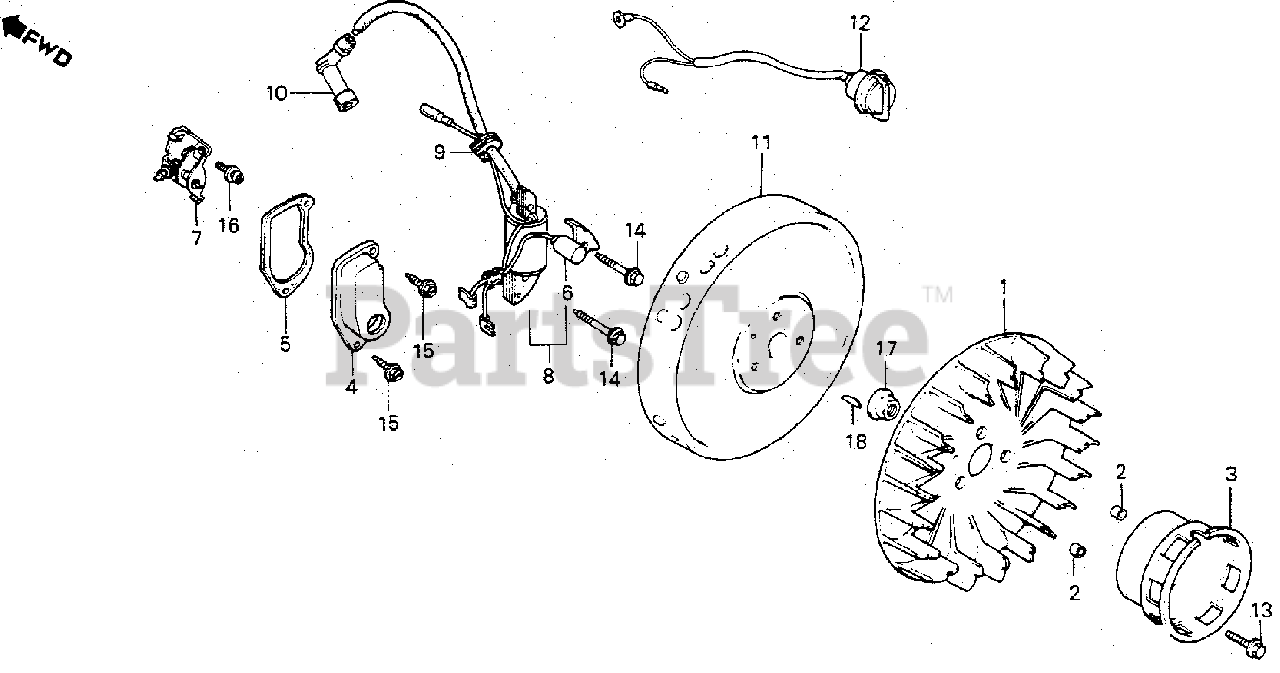

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-883-020

SEE PART DETAILS - PRI; FAN, COOLING

$12.99

$

Usually ships in 3-6 days

0

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28453-883-921

PULLEY, STARTER

$

$

Currently unavailable

4

Honda 30211-883-000

COVER, POINTS

$

$

Not available

5

Honda 30215-883-306

GASKET, POINT COVER

$

$

Not available

6

Honda 30251-883-003

CONDENSER

$19.99

$

Usually ships in 3-6 days

0

7

Honda 30280-883-005

POINTS ASSY.

$31.99

$

Usually ships in 3-6 days

0

8

Honda 30560-883-015

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$129.99

$

Usually ships in 3-6 days

0

9

Honda 30563-883-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

10

Honda 30700-732-000

CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 31100-883-040

FLYWHEEL

$87.99

$

Usually ships in 3-6 days

0

12

Honda 36100-732-000

SWITCH ASSY., STOP (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

14

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

15

Honda 90019-883-000

BOLT, FLANGE (5X10)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90051-883-000

SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.49

$

In Stock, only 2 left!

0

18

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.49

$

In Stock, Qty 14

0

18

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

$1.99

$

In Stock, Qty 12

0
