HS50 WA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000784 - HS50-9999999) ENGINE BED + AUGER HOUSING Parts Diagram

Snow Blower, Made in Japan

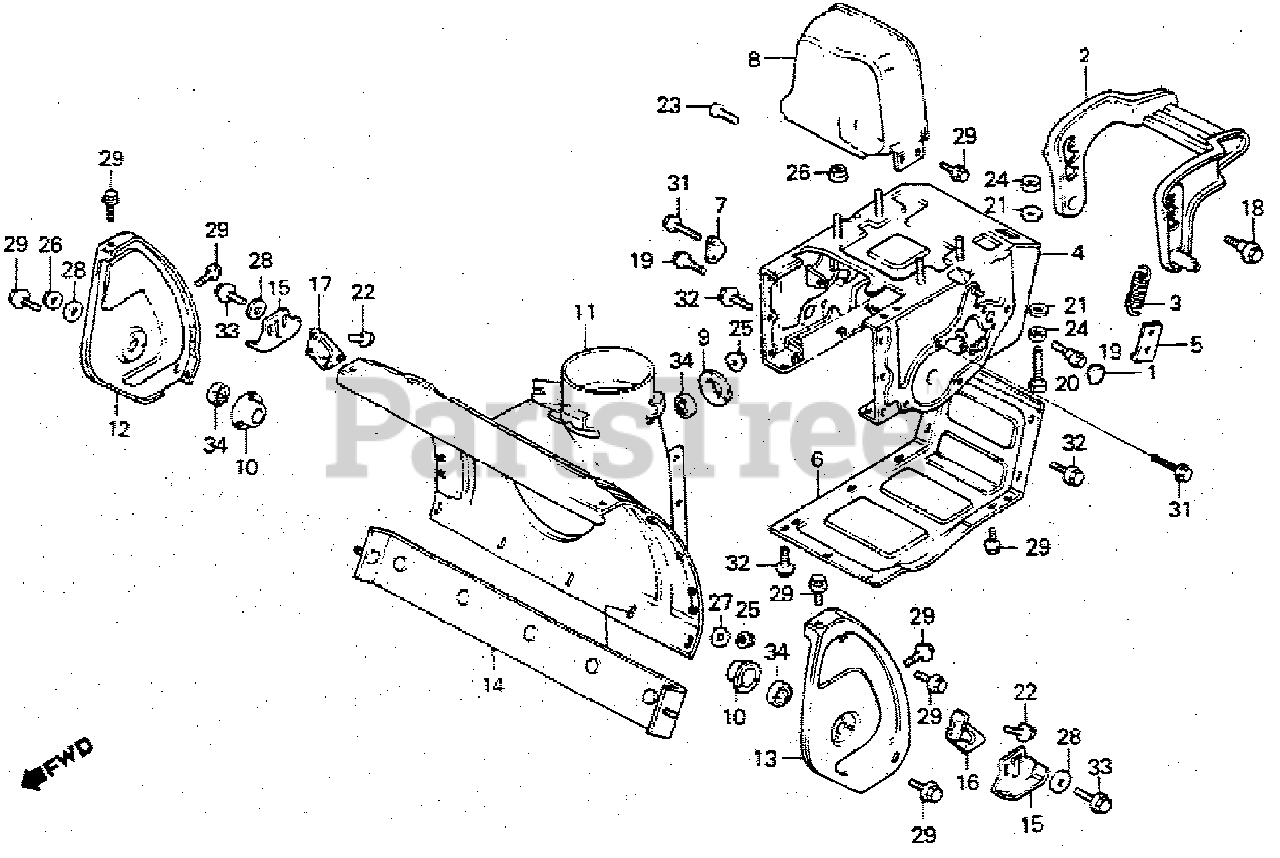

ENGINE BED + AUGER HOUSING Parts Diagram

  • Title

1

Honda 22541-960-770

GROMMET, GUIDE ROLLER

$

$

Currently unavailable

2

Honda 42763-732-900

PLATE, HEIGHT ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 51110-732-010

BED, ENGINE

$

$

Not available

6

Honda 51115-732-000

COVER (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 51116-732-000

PLATE, DISK HOLDER SHAFT

$

$

Currently unavailable

8

Honda 63610-732-010

COVER, BELT

$

$

Currently unavailable

9

Honda 72611-730-000

HOLDER, L. AUGER

$23.99

$

Usually ships in 3-6 days

0

10

Honda 73256-732-000

HOLDER, AUGER BEARING

$26.99

$

In Stock, only 2 left!

0

11

Honda 76100-732-000

HOUSING, AUGER

Note: Use up to Frame SN 1011042.

$

$

Not available

11

Honda 76100-732-010

HOUSING, AUGER

Note: Use from Frame SN 1011043.

$

$

Not available

12

Honda 76102-732-000

COVER, R. AUGER SIDE (NOT AVAILABLE)

Note: Use up to Frame SN 1011042.

$

$

Currently unavailable

12

Honda 76102-732-010

COVER, R. AUGER SIDE (14")

Note: Use from Frame SN 1011043.

$

$

Not available

13

Honda 76103-732-000

COVER, L. AUGER SIDE (NOT AVAILABLE)

Note: Use up to Frame SN 1011042.

$

$

Currently unavailable

13

Honda 76103-732-010

COVER, L. AUGER SIDE (14")

Note: Use from Frame SN 1011043.

$

$

Not available

14

Honda 76151-732-000

GUARD, AUGER HOUSING

Note: Use from Frame SN 1011043.

$

$

Not available

15

Honda 76153-736-000

SEE PART DETAILS - SUP; SKID, AUGER
(Superseded to 76153-736-010)

$31.99

$

In Stock, only 2 left!

0

15

Honda 76153-736-010

SEE PART DETAILS - PRI; SKID, AUGER

$31.99

$

In Stock, only 2 left!

0

19

Honda 90004-732-000

BOLT, TRANSMISSION SETTING

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90103-732-000

BOLT, ADJUSTING

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90514-921-000

WASHER (8MM)

$1.99

$

In Stock, Qty 9

0

23

Honda 93500-06018-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X18)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use up to Frame SN 1011042.

$0.99

$

In Stock, Qty 20+

0

25

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Frame SN 1011043.

$0.99

$

In Stock, Qty 20+

0

26

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

27

Honda 94103-06000

WASHER, PLAIN (6MM)

Note: Use from Frame SN 1011042.

$1.49

$

In Stock, Qty 7

0

28

Honda 94103-08000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1011042.

$0.99

$

Usually ships in 3-6 days

0

28

Honda 94103-08000

WASHER, PLAIN (8MM)

Note: Use from Frame SN 1011043.

$0.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

30

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

Note: Use up to Frame SN 1000547.

$2.49

$

In Stock, Qty 20+

0

30

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Frame SN 1000548.

$1.99

$

In Stock, Qty 20+

0

30

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1000547.

$2.49

$

In Stock, Qty 20+

0

31

Honda 95700-06018-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)
(Superseded to 95701-06018-00)

$2.49

$

In Stock, Qty 20+

0

31

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 20+

0

32

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$1.99

$

In Stock, Qty 5

0

33

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

Note: Use up to Frame SN 1011042.

$2.99

$

In Stock, Qty 20+

0

33

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

Note: Use from Frame SN 1011043.

$1.99

$

In Stock, Qty 5

0

33

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

Note: Use up to Frame SN 1011042.

$2.99

$

In Stock, Qty 20+

0

34

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$24.99

$

In Stock, only 4 left!

0
