HS520 A (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6000001 - SZBG-6099999) CARBURETOR Parts Diagram

20" Snow Blower, Made in USA

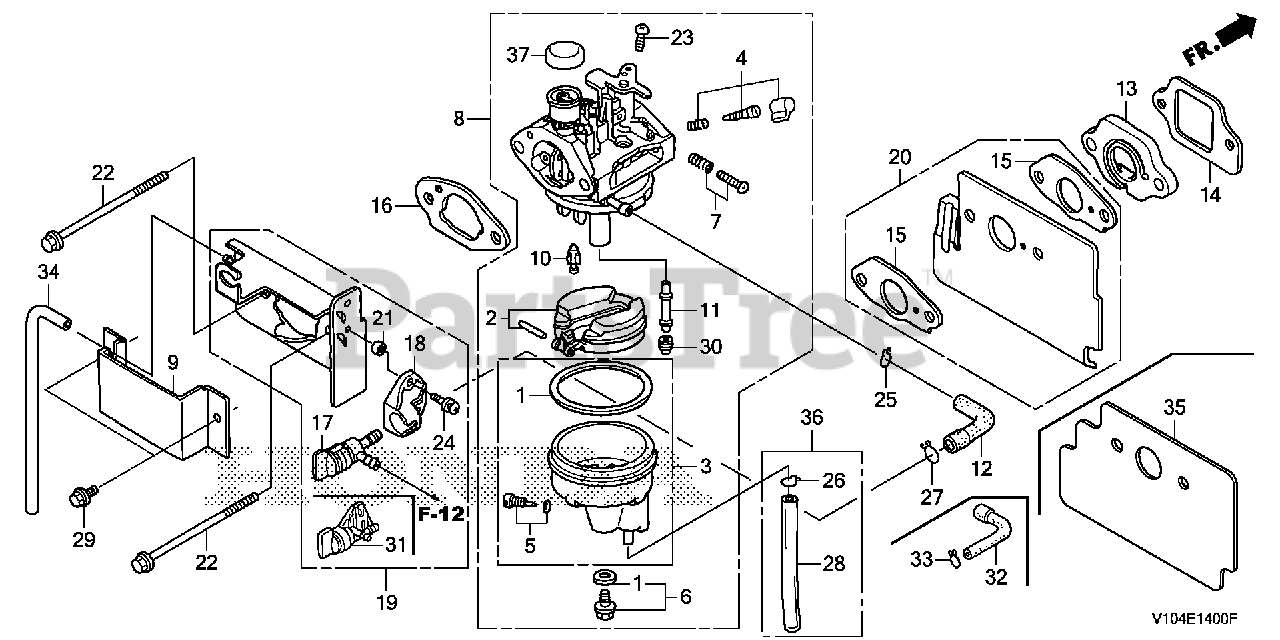

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 16015-ZL8-003

CHAMBER SET, FLOAT

$34.99

$

Usually ships in 3-6 days

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

Note: Use from Engine SN BB61C A to BB61C B.

$12.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$12.99

$

In Stock, only 1 left!

0

5

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZL8-H02

CARBURETOR ASSY. (BB61C B)

$33.99

$

In Stock, Qty 13

0

9

Honda 16120-ZL8-H00

GUARD, CARBURETOR

$5.49

$

Usually ships in 3-6 days

0

10

Honda 16155-ZL8-003

VALVE, FLOAT (CARBURETOR NO.)

$38.99

$

Usually ships in 3-6 days

0

11

Honda 16166-ZL8-H01

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

12

Honda 17702-ZL8-H00

TUBE, FUEL

$

$

Not available

13

Honda 16211-ZL8-000

INSULATOR, CARBURETOR (Honda Code 5580238).

$4.49

$

In Stock, Qty 20+

0

14

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 20+

0

15

Honda 16221-883-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

17

Honda 04103-Z0L-000

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 8007650).

$47.99

$

In Stock, only 1 left!

0

17

Honda 16950-ZG9-M03

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 7357379).
(Superseded to 04103-Z0L-000)

$47.99

$

In Stock, only 1 left!

0

18

Honda 16956-ZM0-000

SEE PART DETAILS - PRI; BRACKET, PETCOCK

$2.99

$

In Stock, only 1 left!

0

19

Honda 16960-ZL8-505

STAY ASSY., PETCOCK

$44.99

$

Usually ships in 3-6 days

0

20

Honda 19650-ZL8-000

GUIDE, AIR

$11.99

$

In Stock, only 1 left!

0

21

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

$3.49

$

In Stock, only 1 left!

0

22

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200) (Honda Code 5580972).

$1.99

$

In Stock, Qty 20+

0

23

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, Qty 10

0

24

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).

$1.49

$

In Stock, only 2 left!

0

25

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

In Stock, Qty 16

0

26

Honda 95002-02650

SEE PART DETAILS - PRI; CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 2 left!

0

27

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, Qty 20+

0

28

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$36.99

$

In Stock, only 1 left!

0

29

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

In Stock, only 4 left!

0

30

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

Note: (Optional).

$11.99

$

In Stock, only 1 left!

0

30

Honda 99101-124-0700

JET, MAIN (#70) Use up to Engine SN BB30A D.

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0720

JET, MAIN (#72) Use from Engine SN 6185281.

$11.99

$

Usually ships in 3-6 days

0

34

Honda 16199-ZL8-H00

TUBE, AIR VENT

$8.49

$

Usually ships in 3-6 days

0
