HS520 AA (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6000001 - SZBG-9999999) CARBURETOR Parts Diagram

20" Snow Blower, Made in USA

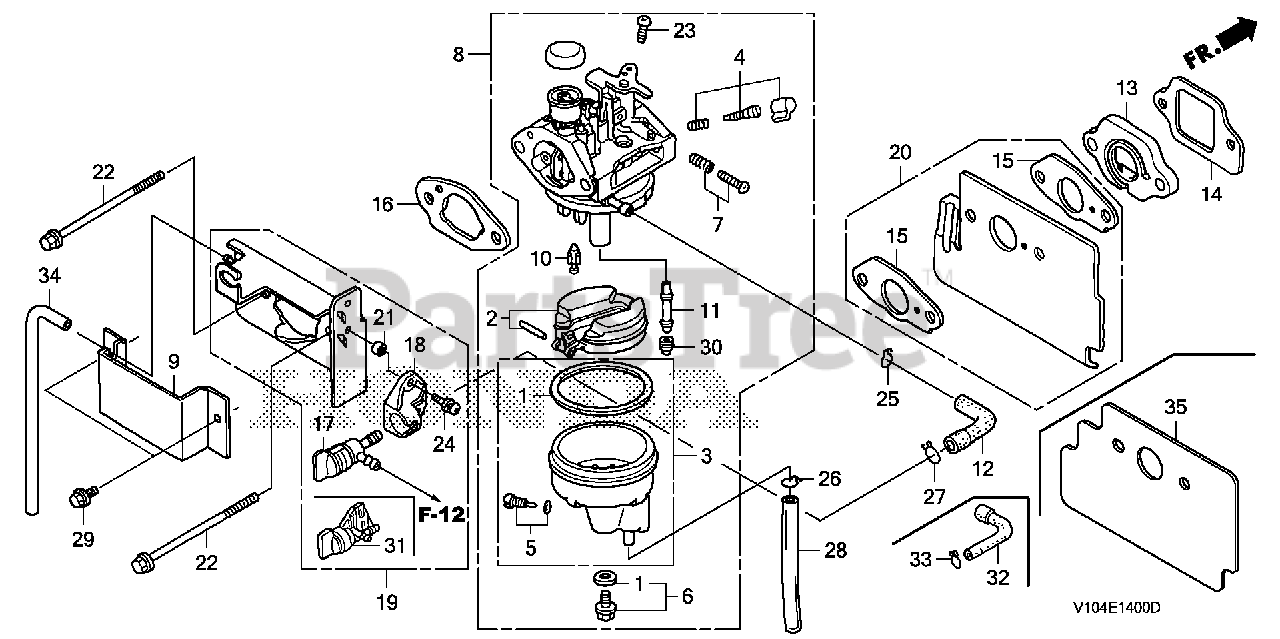

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-ZL1-003

FLOAT SET

$29.99

$

Usually ships in 3-6 days

0

3

Honda 16015-ZL8-003

CHAMBER SET, FLOAT

$32.99

$

Usually ships in 3-6 days

0

5

Honda 16024-124-760

SCREW SET, DRAIN

$13.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$12.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z1A-H01

CARBURETOR ASSY. (BB70B A)

$30.99

$

In Stock, only 2 left!

0

9

Honda 16120-ZL8-H00

GUARD, CARBURETOR

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16155-ZL8-013

VALVE, FLOAT (CARBURETOR NO.)

$26.99

$

Usually ships in 3-6 days

0

11

Honda 16166-Z1A-H01

NOZZLE, MAIN

$6.99

$

Usually ships in 3-6 days

0

13

Honda 16211-Z8B-000

INSULATOR, CARBURETOR

$3.99

$

In Stock, Qty 10

0

14

Honda 16212-ZL8-000

GASKET, INSULATOR

$7.49

$

In Stock, Qty 20+

0

16

Honda 16228-ZL8-000

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

19

Honda 16960-ZL8-H10

STAY ASSY., PETCOCK

$40.99

$

Usually ships in 3-6 days

0

21

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

$2.99

$

In Stock, only 1 left!

0

22

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200)

$1.99

$

In Stock, Qty 20+

0

23

Honda 93500-05006-0H

SCREW, PAN (5X6)

$0.99

$

In Stock, Qty 10

0

24

Honda 93891-05010-08

SCREW-WASHER (5X10)

$1.49

$

In Stock, only 2 left!

0

25

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, only 2 left!

0

26

Honda 95002-02650

CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 2 left!

0

28

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X150)

$34.99

$

In Stock, only 1 left!

0

29

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 1 left!

0

30

Honda 99101-124-0720

JET, MAIN (#72)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0750

JET, MAIN (#75)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

30

Honda 99101-124-0780

JET, MAIN (#78)

$11.99

$

Usually ships in 3-6 days

0

31

Honda 16950-ZM0-003

PETCOCK ASSY.

$8.99

$

In Stock, Qty 9

0

32

Honda 17702-Z0J-H41

TUBE, FUEL (FKM)
(Superseded to 17702-Z0J-H42)

$13.99

$

In Stock, only 1 left!

0

33

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 17

0

34

Honda 16199-ZL8-H00

TUBE, AIR VENT

$7.99

$

Usually ships in 3-6 days

0

35

Honda 19651-Z0J-000

GUIDE, AIR

$9.99

$

In Stock, Qty 7
