HS521 A (SAG) - Honda 21" Snow Blower, Made in Japan (SN: SAG-1000001 - SAG-1099999) AUGER HOUSING Parts Diagram

21" Snow Blower, Made in Japan

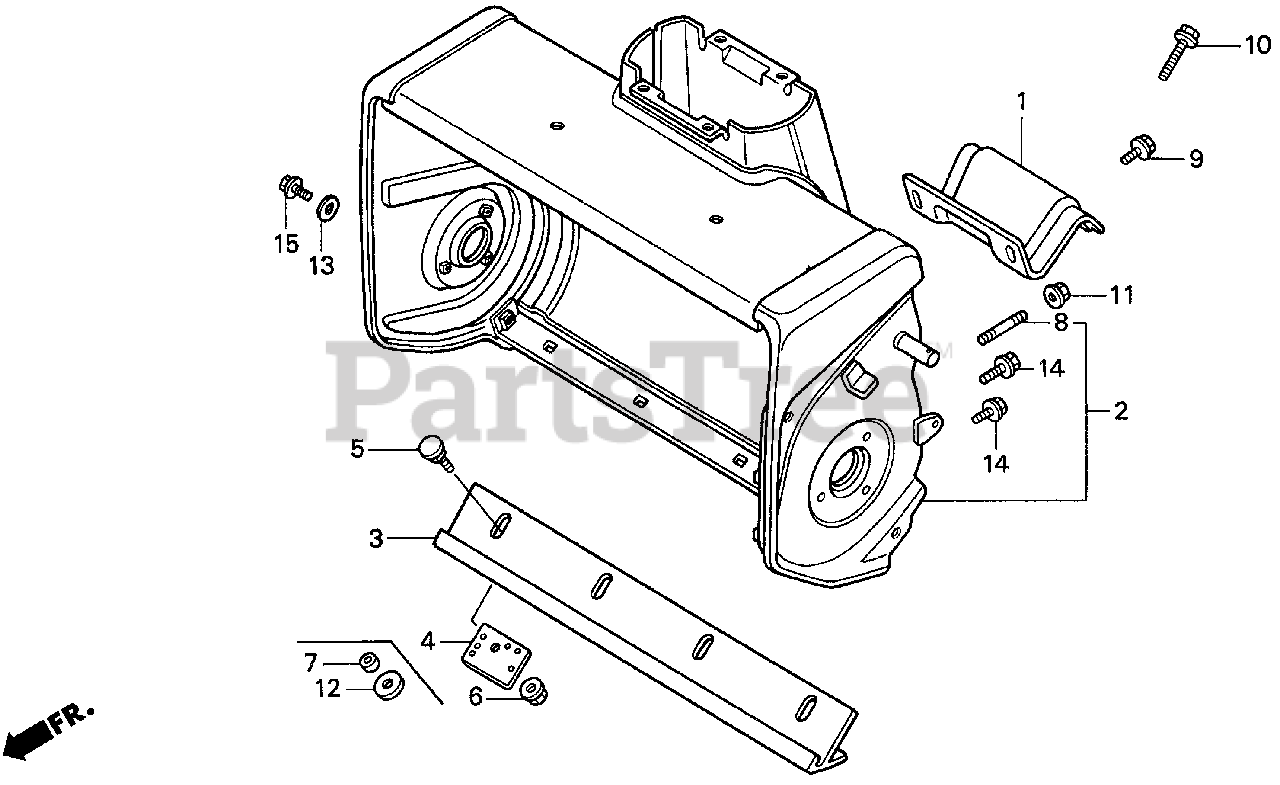

AUGER HOUSING Parts Diagram

  • Title

1

Honda 51128-747-000

STIFFENER, FRAME

$36.99

$

In Stock, only 1 left!

0

2

Honda 76100-747-000ZC

HOUSING, AUGER *NH1* (BLACK)

$1085.99

$

Usually ships in 3-6 days

0

3

Honda 76322-747-000

BLADE, SCRAPER

$

$

Not available

4

Honda 76344-747-000

PLATE, SCRAPER HOLDER

Note: Use from Frame SN 1002094.

$

$

Currently unavailable

5

Honda 90101-VA2-000

BOLT, PAN (6MM)

Note: Use from Frame SN 1002144.

$2.99

$

In Stock, only 4 left!

0

5

Honda 90104-747-000

BOLT, PAN (6MM)

Note: Use up to Frame SN 1002143.

$

$

Not available

6

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

Note: Use up to Frame SN 1002143.

$4.49

$

In Stock, Qty 14

0

6

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

Note: Use from Frame SN 1002144.

$2.49

$

In Stock, Qty 20+

0

7

Honda 91553-747-000

COLLAR, SCRAPER BLADE

$

$

Not available

8

Honda 92900-06018-1B

BOLT 2, STUD (6X18)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 93404-06016-00

SEE PART DETAILS - PRI; BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 93404-06028-00

BOLT-WASHER (6X28)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94103-06000

WASHER, PLAIN (6MM)

Note: Use up to Frame SN 1002093.

$1.49

$

In Stock, Qty 20+

0

13

Honda 94103-06700

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 18

0
