HS521 A (SAG) - Honda 21" Snow Blower, Made in Japan (SN: SAG-1000001 - SAG-1099999) MUFFLER Parts Diagram

21" Snow Blower, Made in Japan

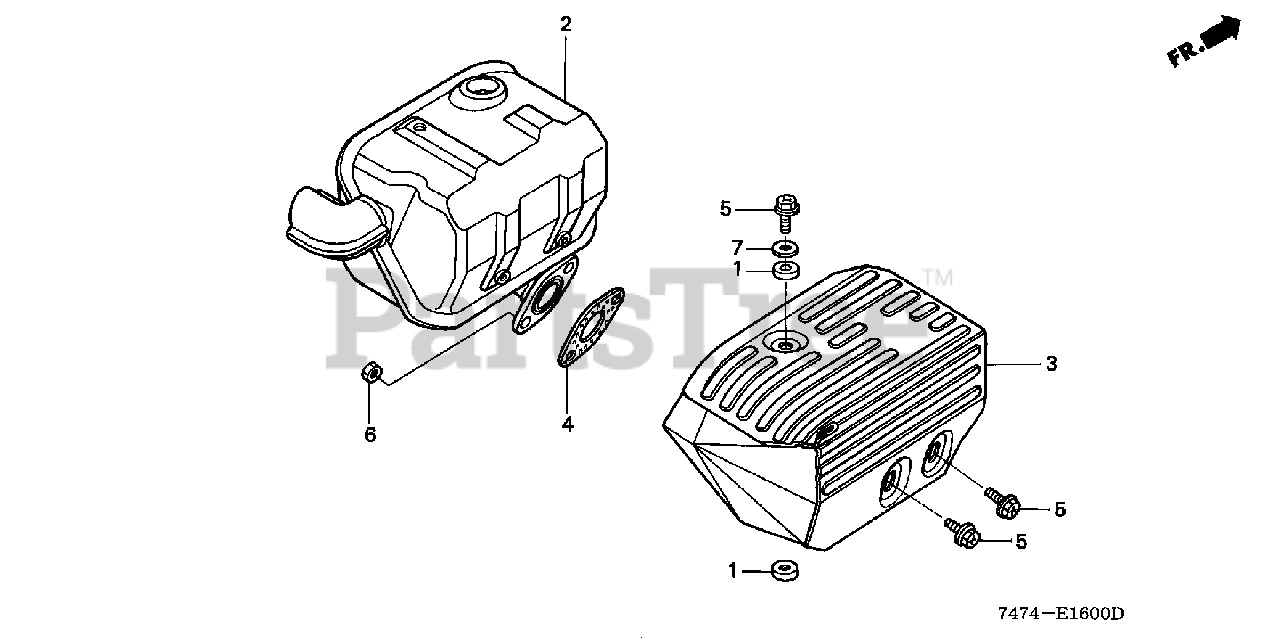

MUFFLER Parts Diagram

  • Title

1

Honda 18292-MM9-740

GASKET, PROTECTOR

$3.99

$

Usually ships in 3-6 days

0

2

Honda 18310-ZE1-P30

MUFFLER

$97.99

$

Usually ships in 3-6 days

0

3

Honda 18321-ZE1-P30

COVER, MUFFLER

$31.99

$

Usually ships in 3-6 days

0

4

Honda 18381-ZE1-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZE1-801)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 90032-ZE1-P31

SCREW, TAPPING (5X14)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

7

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
