HS521 K1 A (SAG) - Honda 21" Snow Blower, Made in Japan (SN: SAG-1100001 - SAG-1199999) FRONT COVER Parts Diagram

21" Snow Blower, Made in Japan

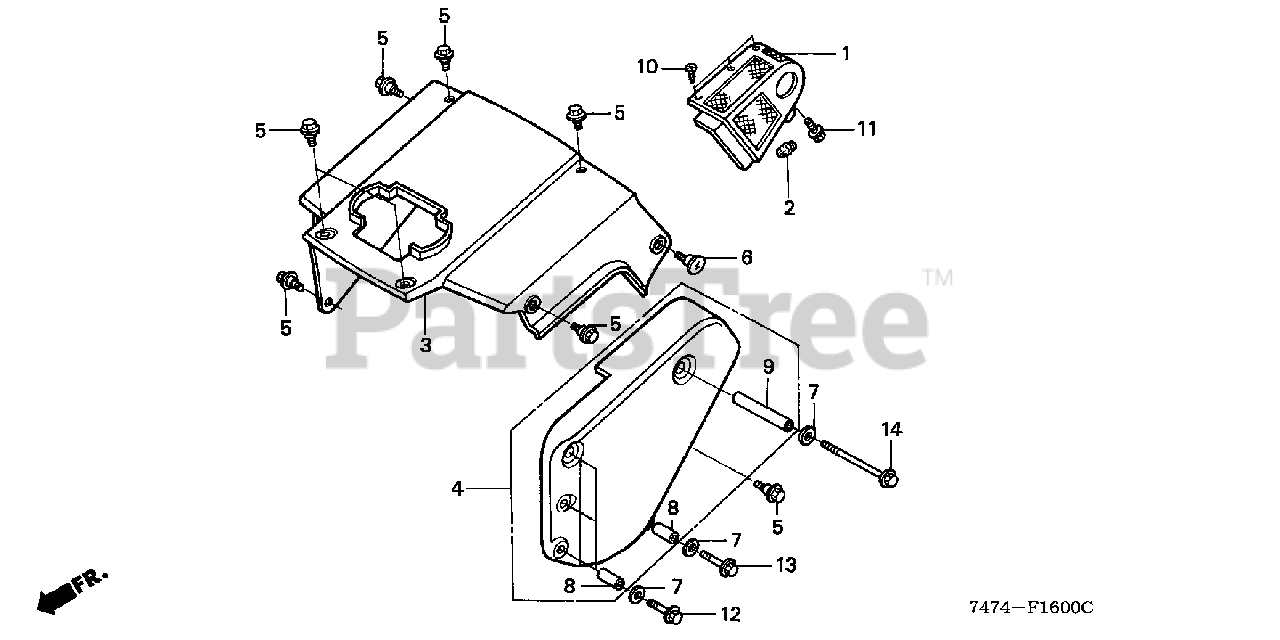

FRONT COVER Parts Diagram

  • Title

1

Honda 18320-747-A10ZA

PROTECTOR, MUFFLER *NH105* (MAT BLACK)

$170.99

$

Usually ships in 3-6 days

0

3

Honda 63510-747-000ZA

SEE PART DETAILS - SUP; COVER, FR. *R8* (BRIGHT RED)

$

$

Currently unavailable

4

Honda 63610-747-A10ZB

SEE PART DETAILS - PRI; COVER, BELT *R280* (POWER RED)

$107.99

$

Usually ships in 3-6 days

0

5

Honda 90113-GE4-000

BOLT, FLANGE (6MM) (BLACK)

$8.49

$

Usually ships in 3-6 days

0

6

Honda 90123-750-000

SCREW, METER VISOR SETTING

$5.49

$

In Stock, Qty 6

0

7

Honda 90485-MB2-000

WASHER (6MM)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 91551-747-300

COLLAR A, BELT COVER

$5.49

$

Usually ships in 3-6 days

0

9

Honda 91552-747-300

COLLAR B, BELT COVER

$10.99

$

Usually ships in 3-6 days

0

10

Honda 93903-25180

SCREW, TAPPING (5X10)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 7

0

12

Honda 95701-06032-07

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06035-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 95701-06085-07

BOLT, FLANGE (6X85)

$

$

Not available
