HS522 TA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) CHANGE LEVER Parts Diagram

22" Snow Blower, Made in Japan

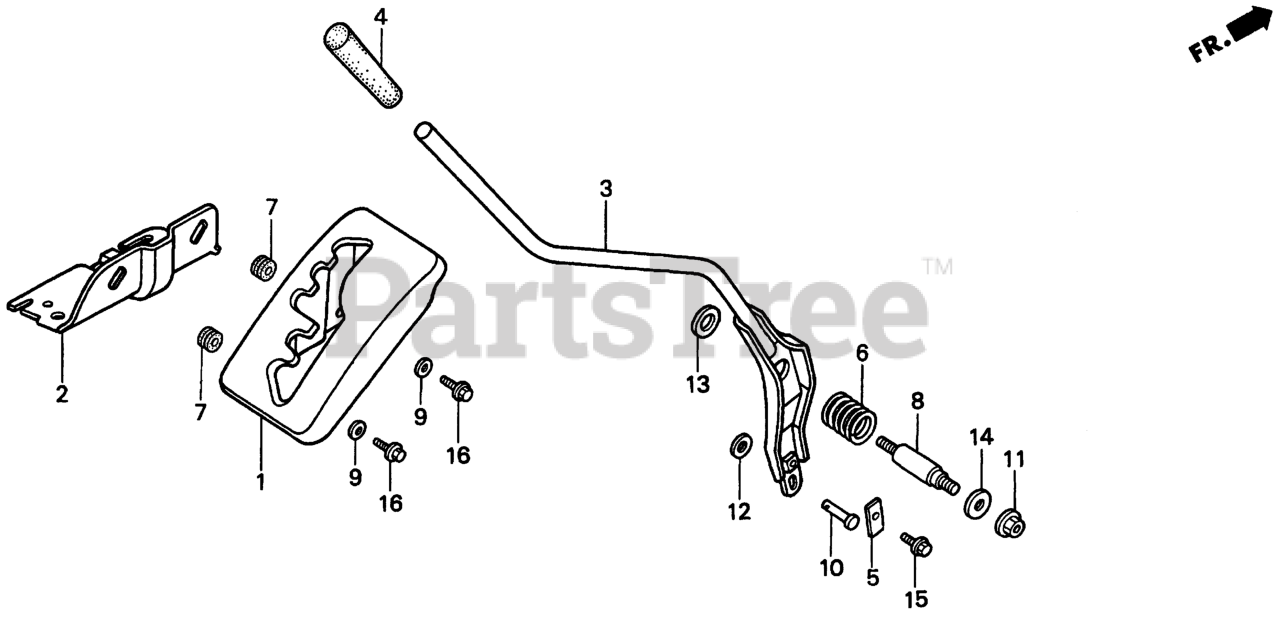

CHANGE LEVER Parts Diagram

  • Title

1

Honda 21311-743-010ZA

COVER, CHANGE

$18.99

$

Usually ships in 3-6 days

0

2

Honda 21312-743-010

STAY, CHANGE COVER

$21.99

$

Usually ships in 3-6 days

0

3

Honda 24410-743-010

LEVER, CHANGE

$50.99

$

Usually ships in 3-6 days

0

4

Honda 24411-719-000

GRIP, CHANGE LEVER

$10.99

$

Usually ships in 3-6 days

0

5

Honda 24412-743-000

PLATE, CHANGE LEVER PIN

$6.49

$

Usually ships in 3-6 days

0

6

Honda 24416-743-000

SPRING, CHANGE LEVER

$8.99

$

Usually ships in 3-6 days

0

8

Honda 90101-743-010

BOLT, CHANGE LEVER

$7.99

$

Usually ships in 3-6 days

0

9

Honda 90512-SA0-000

WASHER (6X20)

$8.49

$

Usually ships in 3-6 days

0

10

Honda 90752-732-000

PIN, CLUTCH ARM

$4.99

$

Usually ships in 3-6 days

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

13

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.49

$

In Stock, Qty 5

0

14

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$1.99

$

In Stock, Qty 20+

0

16

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$1.99

$

In Stock, Qty 20+

0
