HS522 TA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) WHEEL SHAFT@DRIVE SHAFT Parts Diagram

22" Snow Blower, Made in Japan

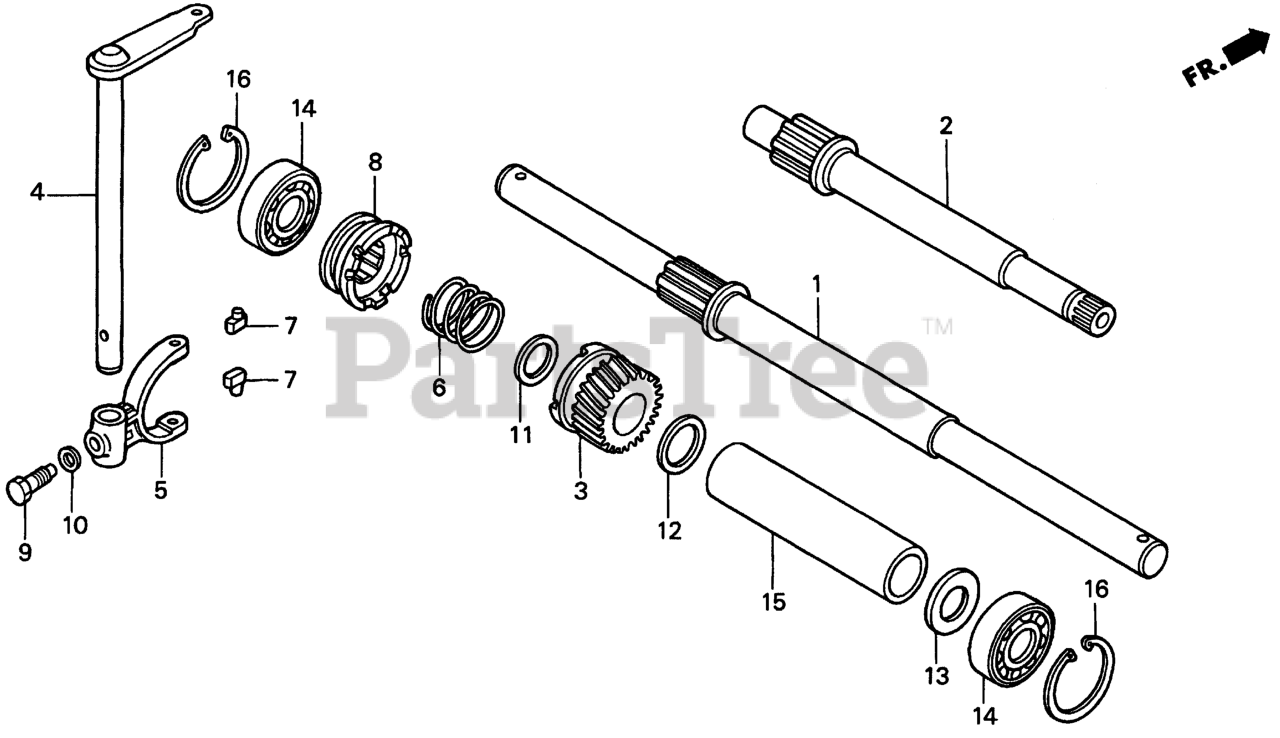

WHEEL SHAFT@DRIVE SHAFT Parts Diagram

  • Title

1

Honda 23371-743-010

SHAFT, WHEEL

$252.99

$

Usually ships in 3-6 days

0

3

Honda 23581-743-000

GEAR, FINAL (27T)

$

$

Currently unavailable

4

Honda 24110-743-700

SHAFT, GEARSHIFT

$61.99

$

Usually ships in 3-6 days

0

5

Honda 24115-743-000

FORK, GEARSHIFT

$85.99

$

Usually ships in 3-6 days

0

6

Honda 24116-743-000

SPRING, CLUTCH RETURN

$9.49

$

Usually ships in 3-6 days

0

7

Honda 24117-743-000

PIN, GEARSHIFT FORK

$9.99

$

Usually ships in 3-6 days

0

8

Honda 24124-743-000

SHIFTER, MAIN CLUTCH

$53.99

$

Usually ships in 3-6 days

0

9

Honda 90029-611-010

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24)

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$7.99

$

Usually ships in 3-6 days

0

11

Honda 90444-430-000

WASHER, THRUST (25.2X30)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90456-MA6-000

WASHER, THRUST (25MM)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90459-KB4-670

WASHER, THRUST (20MM)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 91053-743-003

BEARING, RADIAL BALL (6204)

$22.99

$

Usually ships in 3-6 days

0

15

Honda 91554-743-000

COLLAR, WHEEL SHAFT

$19.99

$

Usually ships in 3-6 days

0

16

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$3.49

$

In Stock, only 1 left!

0
