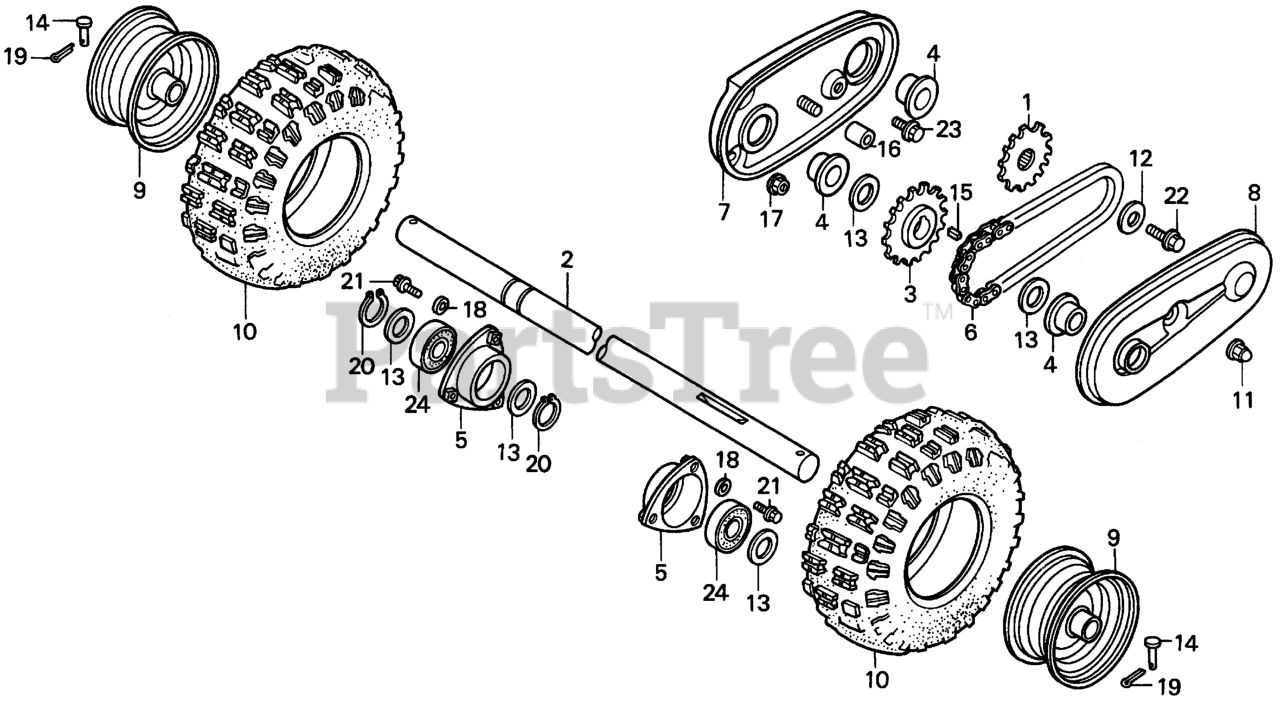

HS522 WA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) WHEEL Parts Diagram

22" Snow Blower, Made in Japan

WHEEL Parts Diagram

  • Title

1

Honda 23121-743-830

SPROCKET, DRIVE

$

$

Not available

2

Honda 23371-743-830

SHAFT, WHEEL

$180.99

$

Usually ships in 3-6 days

0

3

Honda 23372-743-830

SPROCKET, DRIVEN

$

$

Not available

4

Honda 23383-743-831

BUSH (26MM)

$

$

Not available

5

Honda 23384-743-830

HOLDER, BEARING

$

$

Not available

6

Honda 23861-743-831

CHAIN, FINAL (RK420MX40LE)

$

$

Not available

6

Honda 23861-743-832

CHAIN, FINAL (420X40)

$

$

Not available

7

Honda 23862-743-830

CASE, CHAIN

$

$

Not available

8

Honda 23863-743-830

COVER, CHAIN

$

$

Not available

9

Honda 42710-743-830

WHEEL (3.00MX5)

$165.99

$

Usually ships in 3-6 days

0

10

Honda 42750-743-832

TIRE SET (11X4.00-5)

$213.99

$

Usually ships in 3-6 days

0

11

Honda 90443-107-000

NUT, CAP (8MM)

$3.49

$

In Stock, Qty 9

0

12

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0) (Honda Code 0347823).

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90458-292-000

WASHER, THRUST (20MM)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90701-732-000

PIN (6.2X38)

$5.49

$

In Stock, Qty 20+

0

15

Honda 90741-959-000

KEY (5MM)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 91552-743-830

COLLAR (12.7MM)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

Note: Use from Frame SN 1003516.

$1.49

$

In Stock, Qty 20+

0

19

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94510-20000

CIRCLIP (OUTER) (20MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use up to Frame SN 1003515.

$1.99

$

In Stock, Qty 20+

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

Note: Use from Frame SN 1003516.

$1.99

$

In Stock, Qty 20+

0

22

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, Qty 6

0

23

Honda 95701-10020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X20)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

$25.99

$

In Stock, Qty 5

0
