HS55 K1 TA (S55K1) - Honda Snow Blower, Made in Japan (SN: HS55K1-1100001 - HS55K1-9999999) CYLINDER Parts Diagram

Snow Blower, Made in Japan

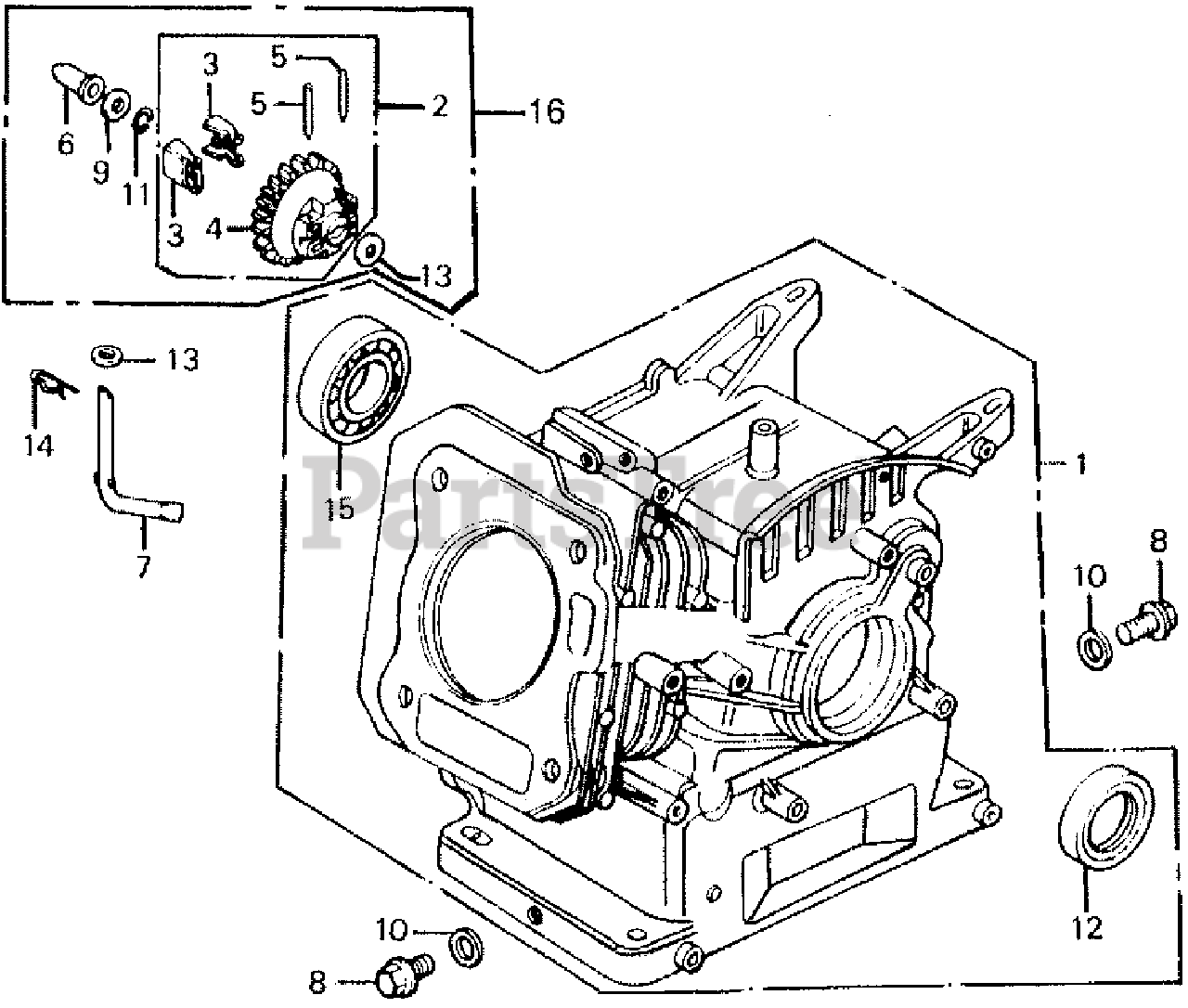

CYLINDER Parts Diagram

  • Title

1

Honda 120A0-ZE1-000

CYLINDER ASSY.

$

$

Not available

2

Honda 16510-ZE1-000

GOVERNOR ASSY.

$15.99

$

In Stock, only 1 left!

0

3

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

$23.99

$

In Stock, only 1 left!

0

5

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$1.99

$

Usually ships in 3-6 days

0

6

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$2.49

$

In Stock, only 1 left!

0

7

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$11.99

$

Usually ships in 3-6 days

0

8

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$2.99

$

In Stock, Qty 9

0

9

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$1.99

$

In Stock, Qty 9

0

10

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 13

0

11

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER

Note: Use up to Engine SN 1728191.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 18

0

12

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 18

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 94251-08000

PIN, LOCK (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$22.99

$

In Stock, only 3 left!

0

16

Honda 06165-ZE1-000

GOVERNOR KIT

$16.99

$

Usually ships in 3-6 days

0
