HS55 K2 TA (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) HANDLEBAR Parts Diagram

Snow Blower, Made in Japan

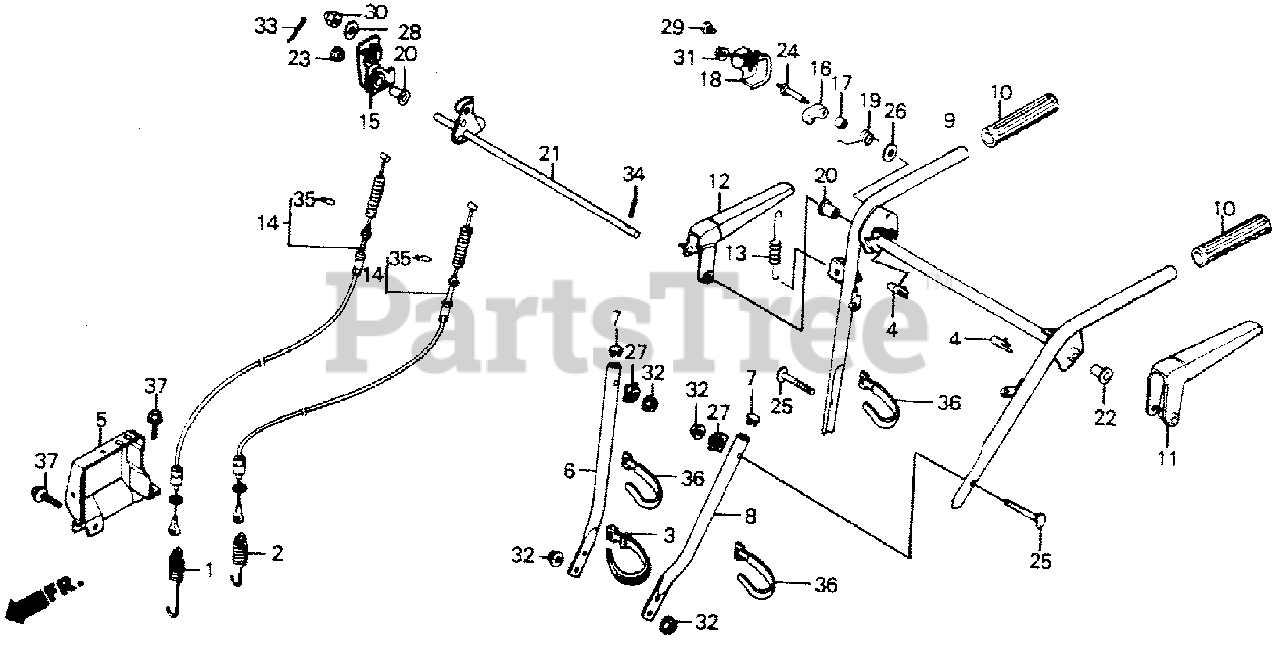

HANDLEBAR Parts Diagram

  • Title

1

Honda 24468-736-A00

SEE PART DETAILS - SUP; SPRING, TENSION ROLLER
(Superseded to 24468-736-A01)

$6.99

$

In Stock, Qty 5

0

2

Honda 24469-736-A00

SPRING, TENSION ROLLER (AUGER)

$11.99

$

In Stock, only 1 left!

0

3

Honda 32161-404-610

BAND B1, CABLE

$2.99

$

Usually ships in 3-6 days

0

4

Honda 50319-736-A00

RUBBER, STOPPER

$3.99

$

Usually ships in 3-6 days

0

5

Honda 51120-736-A00

HOLDER, WIRE

$

$

Currently unavailable

6

Honda 53110-736-000

HANDLE, R. (LOWER)

$

$

Not available

7

Honda 53115-732-000

CAP, HANDLE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 53120-736-000

HANDLE, L. (LOWER)

$

$

Not available

9

Honda 53150-736-A01

PIPE, HANDLE (UPPER)

$

$

Currently unavailable

10

Honda 53321-708-000

GRIP, HANDLE

$16.99

$

In Stock, only 2 left!

0

11

Honda 54415-738-E01

SEE PART DETAILS - SUP; LEVER, CLUTCH
(Superseded to 54415-738-E04)

$50.99

$

Usually ships in 3-6 days

0

12

Honda 54416-736-A03

SEE PART DETAILS - SUP; LEVER, AUGER CLUTCH
(Superseded to 54416-736-A05)

Note: Use up to Frame SN 1130716.

$50.99

$

Usually ships in 3-6 days

0

12

Honda 54416-736-A02

SEE PART DETAILS - SUP; LEVER, AUGER CLUTCH
(Superseded to 54416-736-A05)

Note: Use from Frame SN 1130717.

$50.99

$

Usually ships in 3-6 days

0

13

Honda 54418-736-A00

SPRING, CLUTCH LEVER

$

$

Not available

14

Honda 54510-736-A10

CABLE, CLUTCH (NOT AVAILABLE)

$

$

Not available

15

Honda 54520-736-A01

BOSS, CAM LOCK

$51.99

$

Usually ships in 3-6 days

0

16

Honda 54531-732-003

RATCHET, LEVER

$11.99

$

Usually ships in 3-6 days

0

17

Honda 54533-732-000

COLLAR, RATCHET

$4.49

$

Usually ships in 3-6 days

0

18

Honda 54535-736-A00

COVER, RATCHET

$

$

Not available

19

Honda 54536-736-A00

SEE PART DETAILS - PRI; SPRING, RATCHET

$4.49

$

Usually ships in 3-6 days

0

20

Honda 54538-736-A01

BUSH (13X23)

$10.99

$

In Stock, only 1 left!

0

21

Honda 54550-738-E00

SHAFT, CLUTCH LEVER

$86.99

$

Usually ships in 3-6 days

0

22

Honda 54554-732-000

BUSH (14MM)

$8.99

$

Usually ships in 3-6 days

0

24

Honda 90105-732-000

BOLT, PIVOT (6MM)

$8.99

$

Usually ships in 3-6 days

0

25

Honda 90109-VA4-000

BOLT, HANDLE HOLDER
(Superseded to 90113-V10-000)

$8.99

$

In Stock, Qty 20+

0

26

Honda 90412-329-000

WASHER (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

27

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, only 2 left!

0

28

Honda 90539-836-000

WASHER (6MM)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

30

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

32

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

33

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

34

Honda 94305-40162

PIN, SPRING (4X16)

$2.99

$

Usually ships in 3-6 days

0

35

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 13

0

36

Honda 95014-62200

BAND B2, CABLE HARNESS

$2.49

$

Usually ships in 3-6 days

0

37

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 20+

0
