HS55 K2 TAS (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) CRANKCASE COVER Parts Diagram
Snow Blower, Made in Japan

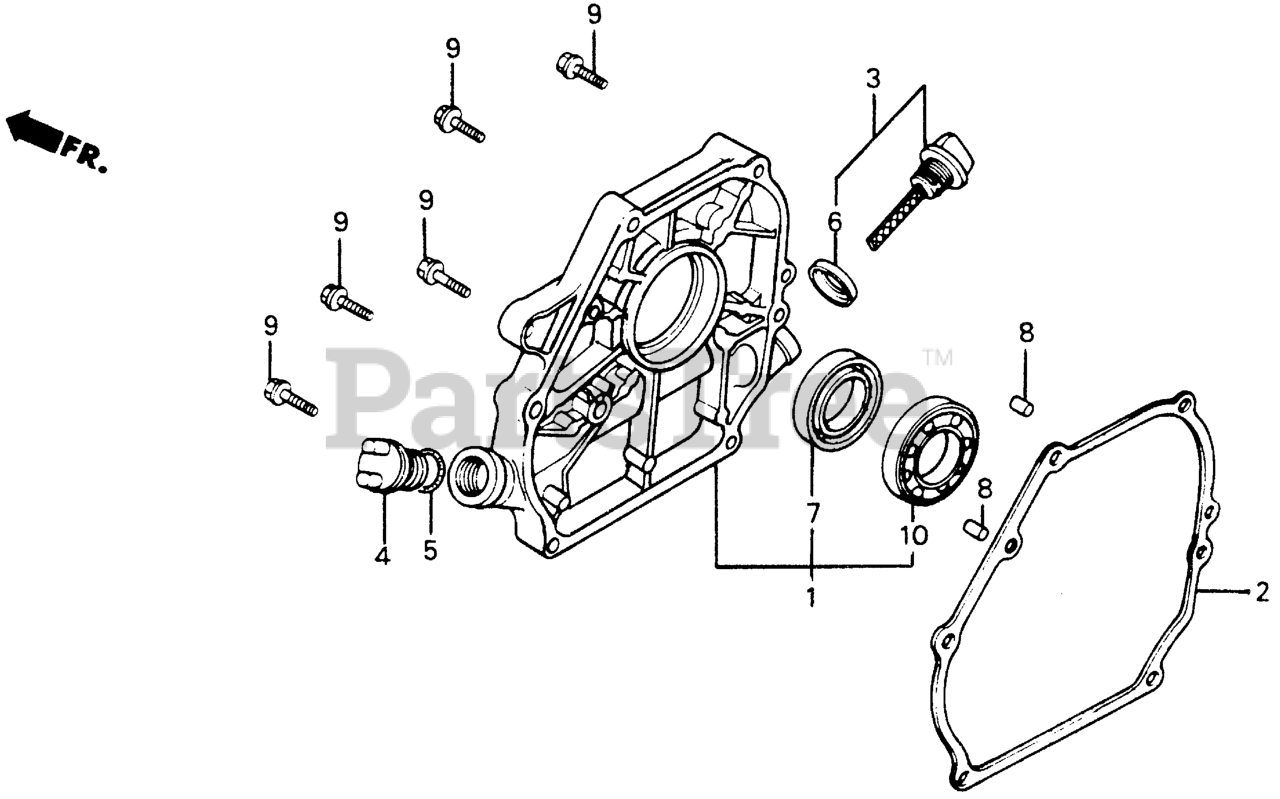

CRANKCASE COVER Parts Diagram
Honda 11300-ZE1-020
SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE
$41.99
$
Usually ships in 3-6 days
Honda 11381-ZH8-801
SEE PART DETAILS - PRI; GASKET, CASE COVER (NON-ASBESTOS) (Honda Code 4723144).
$6.99
$
In Stock, Qty 17
Honda 15600-ZE1-003
SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4500146).
(Superseded to 15600-Z0T-810)
$1.49
$
In Stock, Qty 20+
Honda 15600-Z0T-810
CAP ASSY., OIL FILLER (Honda Code 7346562).
$1.49
$
In Stock, Qty 20+
Honda 15621-ZE1-000
CAP, OIL HOLE (Honda Code 1427061).
$6.49
$
In Stock, only 1 left!
Honda 15621-896-010
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Use from Engine SN 1391010.
$5.49
$
In Stock, Qty 7
Honda 15625-ZE1-003
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).
$3.49
$
In Stock, Qty 8
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).
$8.99
$
In Stock, Qty 10
Honda 94301-08140
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).
$2.99
$
In Stock, Qty 14
Honda 95701-08032-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2751725).
$1.99
$
In Stock, Qty 6
Honda 96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).
$22.99
$
In Stock, only 2 left!
