HS55 K2 TAS (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) CYLINDER HEAD Parts Diagram

Snow Blower, Made in Japan

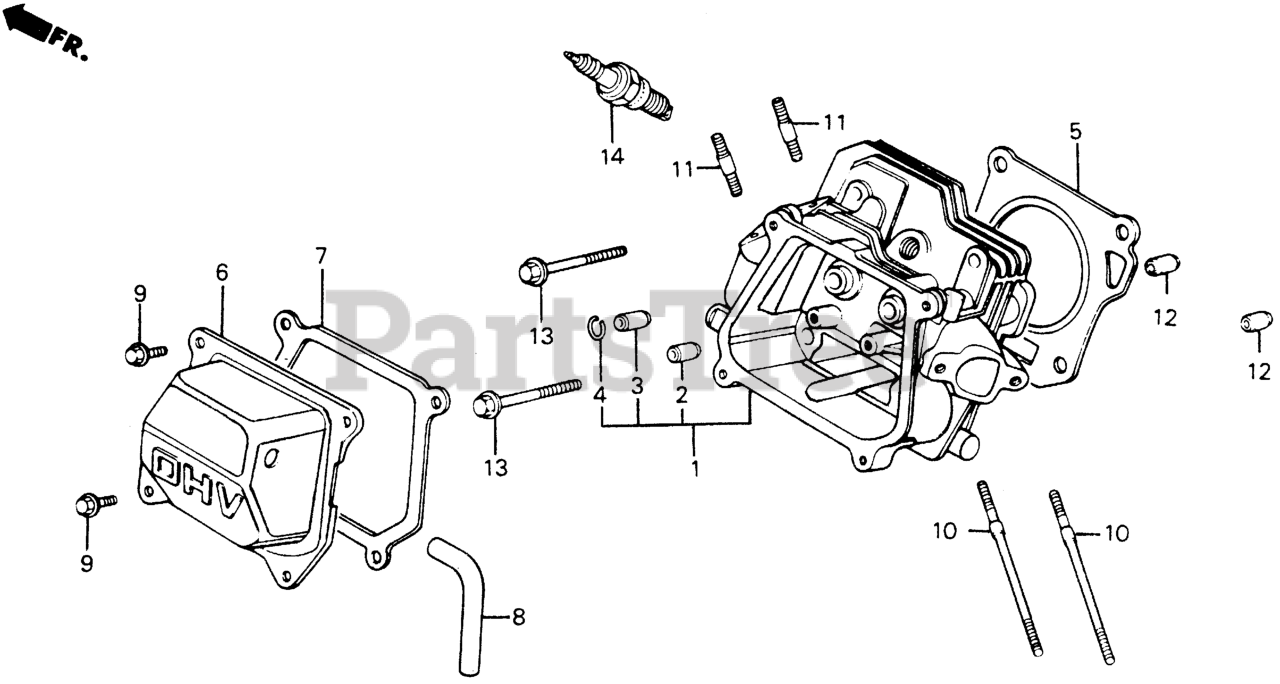

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE1-020

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 1950575).

$

$

Not available

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE) Use up to Engine SN 2416541.

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 19

0

5

Honda 12251-ZE1-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4210860).

$11.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$14.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER (Honda Code 1426527).

$4.99

$

In Stock, Qty 20+

0

8

Honda 15721-ZE1-710

SEE PART DETAILS - PRI; TUBE, BREATHER (Honda Code 1950583).

Note: Use up to Engine SN 1754080.

$

$

Not available

8

Honda 15721-ZE1-720

TUBE, BREATHER

Note: Use from Engine SN 1754081.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (Honda Code 1541002).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90043-ZE1-010

SEE PART DETAILS - SUP; BOLT, STUD (6X109)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109) (Honda Code 4588323).

$6.49

$

In Stock, Qty 11

0

11

Honda 90047-ZE1-000

BOLT, STUD (8X32) (Honda Code 1431097).

$4.49

$

In Stock, only 2 left!

0

12

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$2.99

$

In Stock, only 3 left!

0

13

Honda 95723-08060-00

BOLT, FLANGE (8X60) (Honda Code 1436591).

$2.49

$

Usually ships in 3-6 days

0

14

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

In Stock, only 1 left!

0
