HS55 WA (HS55) - Honda Snow Blower, Made in Japan (SN: HS55-1000001 - HS55-1100000) CYLINDER Parts Diagram

Snow Blower, Made in Japan

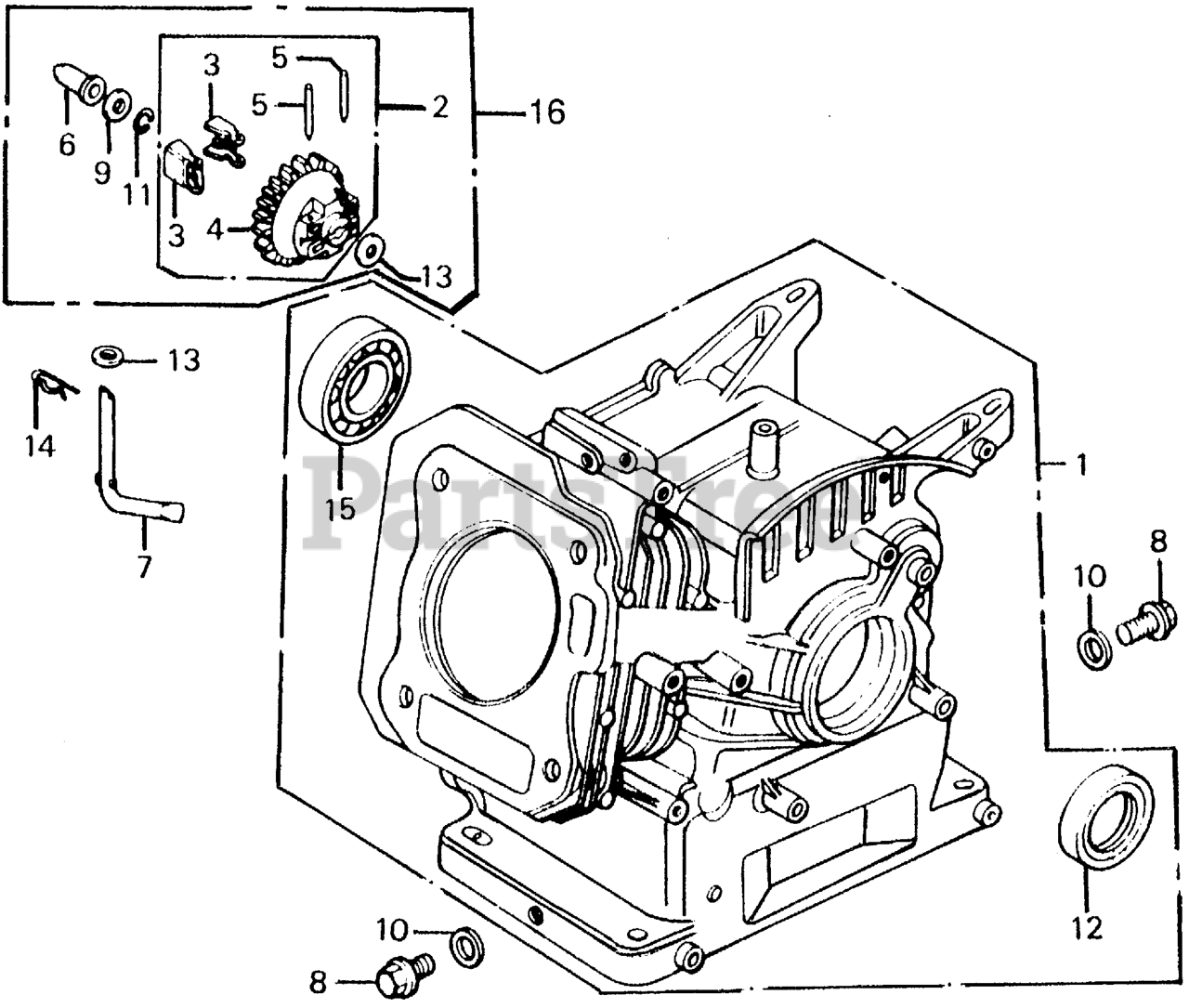

CYLINDER Parts Diagram

  • Title

1

Honda 120A0-ZE1-000

CYLINDER ASSY. (STD) (NOT AVAILABLE)

$

$

Not available

3

Honda 16511-ZE1-000

WEIGHT, GOVERNOR (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

4

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT (Honda Code 1427236).

$27.99

$

In Stock, only 1 left!

0

5

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.99

$

In Stock, only 2 left!

0

6

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

7

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM (Honda Code 1427277).

$14.99

$

Usually ships in 3-6 days

0

8

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, Qty 6

0

9

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 3 left!

0

10

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 7

0

11

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$10.99

$

In Stock, only 3 left!

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

14

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$27.99

$

In Stock, only 4 left!

0

16

Honda 06165-ZE1-000

GOVERNOR KIT (Honda Code 3313657).

Note: (Optional)

$20.99

$

Usually ships in 3-6 days

0
