HS621 AS/E (SZAN) - Honda 21" Snow Blower, Made in Japan (SN: SZAN-1130379 - SZAN-1999999) AIR CLEANER Parts Diagram

21" Snow Blower, Made in Japan

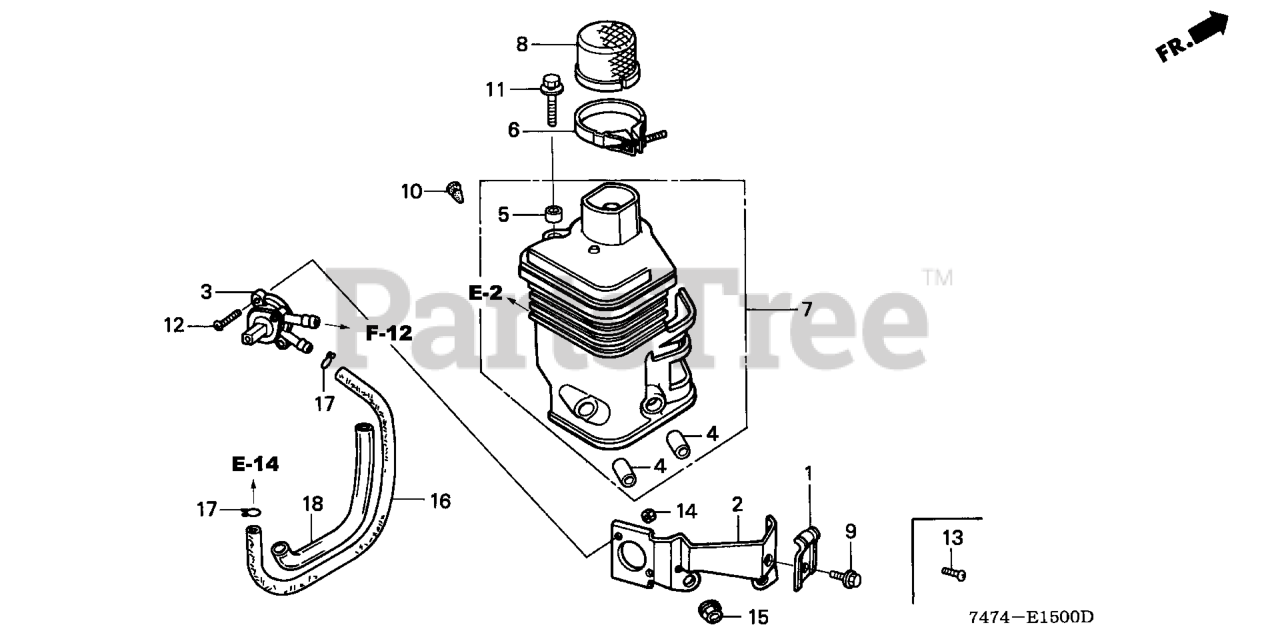

AIR CLEANER Parts Diagram

  • Title

1

Honda 16582-883-300

HOLDER, CONTROL CABLE Use from Engine SN 2327377.

$4.99

$

In Stock, only 2 left!

0

2

Honda 16598-ZE1-P30

STAY, CHOKE CONTROL

$15.99

$

Usually ships in 3-6 days

0

3

Honda 16950-ZE1-P32

SEE PART DETAILS - PRI; PETCOCK ASSY.

$38.99

$

In Stock, only 1 left!

0

4

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$5.49

$

In Stock, Qty 10

0

5

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$5.49

$

In Stock, only 2 left!

0

7

Honda 17410-ZE1-P31

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90002-892-000

BOLT, FLANGE (5X10) Use from Engine SN 2327377.

$2.49

$

In Stock, only 4 left!

0

10

Honda 90899-422-610

PLUG, CONE TYPE

$2.99

$

Usually ships in 3-6 days

0

11

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.99

$

In Stock, Qty 16

0

12

Honda 93500-03012-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0182154).

$1.49

$

In Stock, Qty 6

0

14

Honda 94001-03000-0S

NUT, HEX. (3MM) (Honda Code 0166694).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

16

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

$78.99

$

In Stock, only 1 left!

0

17

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.99

$

In Stock, Qty 20+

0

18

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X210)

$

$

Currently unavailable
