HS621 AS/E (SZAN) - Honda 21" Snow Blower, Made in Japan (SN: SZAN-1130379 - SZAN-1999999) REAR COVER Parts Diagram

21" Snow Blower, Made in Japan

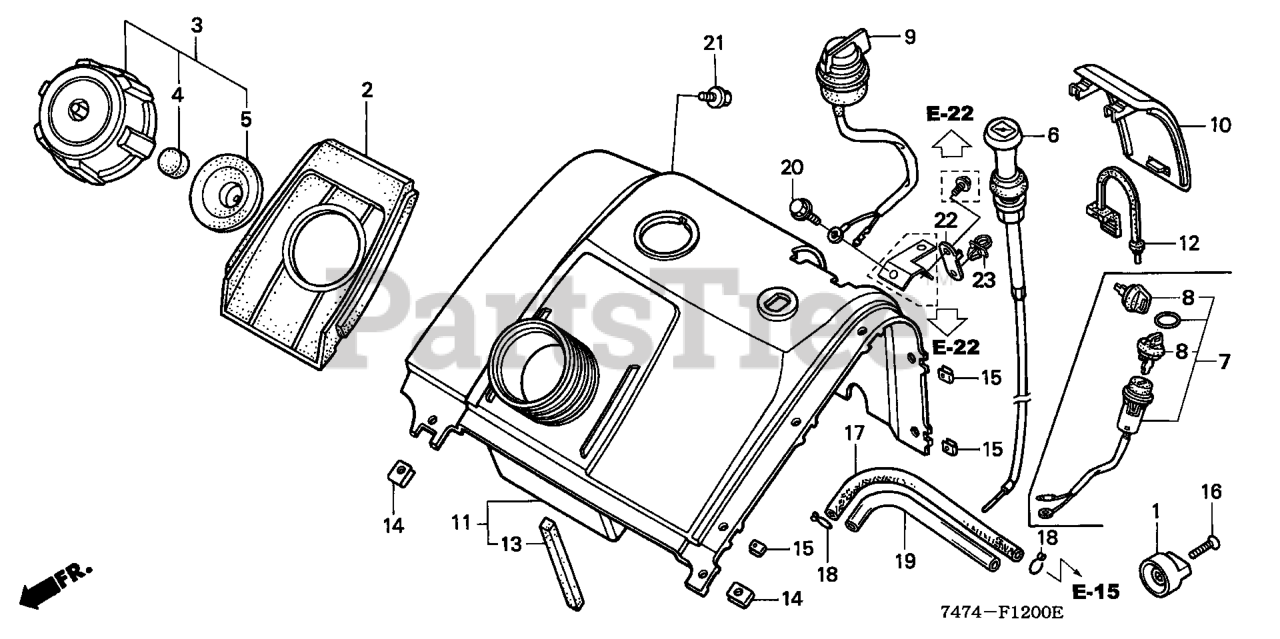

REAR COVER Parts Diagram

  • Title

1

Honda 16963-747-000

LEVER, PETCOCK

$10.99

$

In Stock, only 1 left!

0

2

Honda 17567-747-000

RUBBER, FUEL GUIDE

$29.99

$

Usually ships in 3-6 days

0

3

Honda 17620-747-030

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$13.99

$

In Stock, only 1 left!

0

4

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

5

Honda 17624-747-010

SEE PART DETAILS - SUP; GASKET, FUEL CAP
(Superseded to 17624-747-030)

Note: Use up to Frame SN 1130804.

$7.49

$

Usually ships in 3-6 days

0

5

Honda 17624-747-030

SEE PART DETAILS - PRI; GASKET, FUEL CAP

Note: Use from Frame SN 1130805.

$7.49

$

Usually ships in 3-6 days

0

6

Honda 17950-747-000

CABLE, CHOKE

$34.99

$

Usually ships in 3-6 days

0

7

Honda 35100-747-712

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$100.99

$

Usually ships in 3-6 days

0

8

Honda 35110-743-701

KEY ASSY., COMBINATION SWITCH

Note: Use up to Frame SN 1130428.

$

$

Not available

8

Honda 35110-766-003

KEY ASSY., COMBINATION SWITCH (RED)

Note: Use from Frame SN 1130429.

$8.99

$

In Stock, only 3 left!

0

10

Honda 63133-747-000ZA

COVER, PLUG *NH1* (BLACK)

$15.99

$

In Stock, only 1 left!

0

11

Honda 63300-747-A10ZB

COVER ASSY., RR. *NH1* (BLACK)

$154.99

$

Usually ships in 3-6 days

0

12

Honda 63338-747-000

KNOB, PLUG COVER

$12.99

$

Usually ships in 3-6 days

0

13

Honda 72618-747-A10

RUBBER, SEAL

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90320-747-000

NUT, SPRING (6MM)

$2.99

$

In Stock, only 2 left!

0

15

Honda 90331-SD5-003

NUT, SPRING (5MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 93700-04020-0G

SCREW, OVAL (4X20)

$0.99

$

In Stock, Qty 10

0

17

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

$70.99

$

Usually ships in 3-6 days

0

18

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

In Stock, Qty 16

0

19

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X210)

$

$

Currently unavailable

20

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, Qty 20+

0

22

Honda 32302-744-000

STAY, WIRE CLIP

$2.99

$

Usually ships in 3-6 days

0

23

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.49

$

Usually ships in 3-6 days

0
