HS622 TA/A (SZAL) - Honda 22" Snow Blower, Made in Japan (SN: SZAL-1000001 - SZAL-1099999) FUEL TANK Parts Diagram

22" Snow Blower, Made in Japan

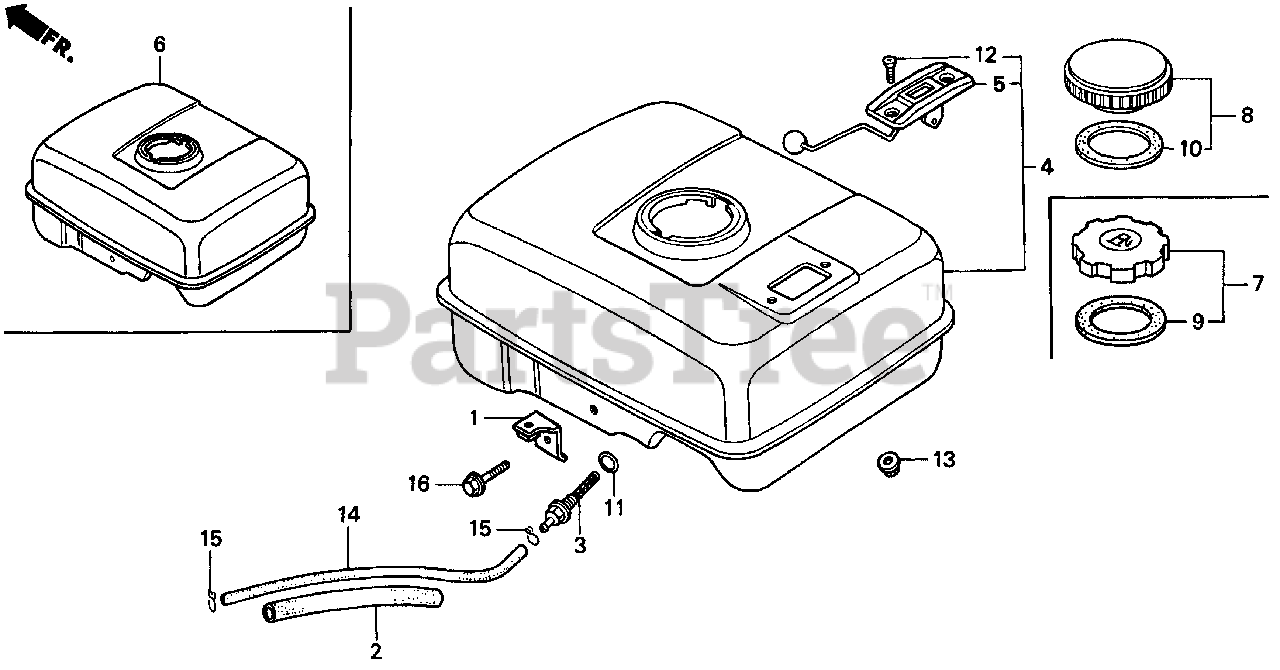

FUEL TANK Parts Diagram

  • Title

1

Honda 16402-736-000

STAY, ENGINE CONTROL COVER

$

$

Not available

2

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$5.99

$

In Stock, Qty 11

0

3

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$9.99

$

In Stock, Qty 13

0

4

Honda 17500-ZE1-813ZH

SEE PART DETAILS - PRI; TANK ASSY., FUEL *R280* (GAUGE) (POWER RED)

$220.99

$

Usually ships in 3-6 days

0

5

Honda 17505-ZE1-013

GAUGE ASSY., FUEL

$34.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

$

$

Not available

9

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

12

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, Qty 10

0

13

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$59.99

$

In Stock, Qty 7

0

15

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

16

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

In Stock, only 3 left!

0
