HS624 K1 TA/A (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2000001 - SZAJ-2021945) CHANGE LEVER Parts Diagram

24" Snow Blower, Made in Japan

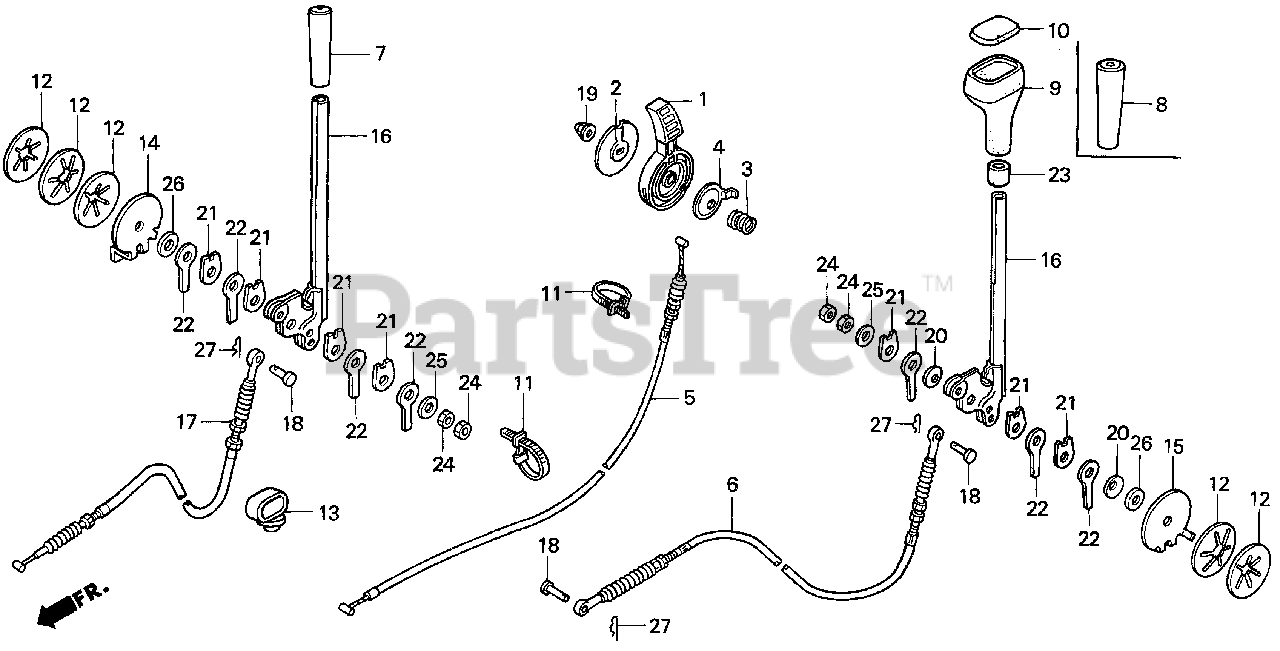

CHANGE LEVER Parts Diagram

  • Title

1

Honda 17851-767-000

LEVER, THROTTLE

$16.99

$

Usually ships in 3-6 days

0

2

Honda 17857-VA4-000

PLATE, THROTTLE LEVER

$8.49

$

In Stock, only 2 left!

0

3

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.99

$

In Stock, Qty 12

0

4

Honda 17859-VA4-000

SEAT, SPRING

$6.99

$

In Stock, only 1 left!

0

5

Honda 17910-767-A11

CABLE, THROTTLE
(Superseded to 17910-767-A12)

$25.99

$

In Stock, only 1 left!

0

6

Honda 24150-767-A10

CABLE, CHANGE

$67.99

$

In Stock, only 2 left!

0

7

Honda 24411-719-000

GRIP, CHANGE LEVER

$13.99

$

Usually ships in 3-6 days

0

8

Honda 24411-734-A00

GRIP, CHANGE LEVER (ORANGE)

Note: Use from Frame SN 2007285.

$10.99

$

In Stock, only 1 left!

0

9

Honda 24415-767-000

GRIP, CHANGE LEVER

Note: Use up to Frame SN 2007284.

$23.99

$

Usually ships in 3-6 days

0

10

Honda 24417-767-000

KNOB, CHANGE LEVER GRIP

Note: Use up to Frame SN 2007284.

$7.49

$

Usually ships in 3-6 days

0

11

Honda 32161-438-000

BAND, WIRE

Note: Use up to Frame SN 2013864.

$6.49

$

Usually ships in 3-6 days

0

12

Honda 42915-959-000

SPRING, ADJUSTING ARM

$7.99

$

Usually ships in 3-6 days

0

13

Honda 45451-367-690

GROMMET, WIRE

Note: Use up to Frame SN 2013864.

$6.49

$

Usually ships in 3-6 days

0

13

Honda 91451-768-S00

CLAMP, CABLE

Note: Use from Frame SN 2013865.

$3.99

$

In Stock, only 2 left!

0

14

Honda 50326-767-000

PLATE, R. STOPPER

$10.99

$

In Stock, only 2 left!

0

15

Honda 50338-767-000

PLATE, L. STOPPER

$10.99

$

Usually ships in 3-6 days

0

16

Honda 54311-767-000

LEVER, CHANGE

$44.99

$

In Stock, only 1 left!

0

17

Honda 54580-767-A10

CABLE, CHUTE GUIDE

$49.99

$

Usually ships in 3-6 days

0

18

Honda 68331-876-000

PIN, CONTROL BOX SETTING

$5.99

$

In Stock, only 2 left!

0

19

Honda 90201-415-000

NUT, CAP (6MM)

$3.49

$

In Stock, only 2 left!

0

20

Honda 90401-MA1-000

WASHER, LOCK

$9.49

$

Usually ships in 3-6 days

0

21

Honda 90501-767-000

WASHER, FRICTION

$5.49

$

Usually ships in 3-6 days

0

22

Honda 90502-767-000

WASHER, FRICTION SETTING

$4.99

$

In Stock, only 2 left!

0

24

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

25

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 12

0

27

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0
