HS624 K1 TA/A (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2000001 - SZAJ-2021945) RECOIL STARTER (1) Parts Diagram

24" Snow Blower, Made in Japan

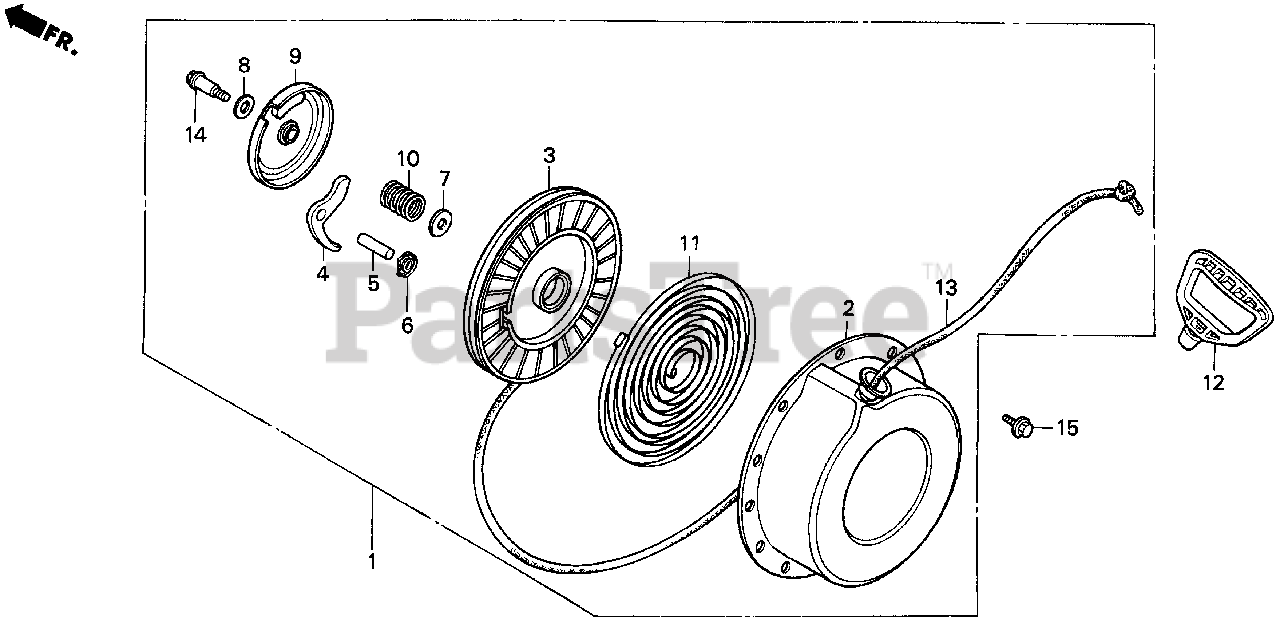

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZE1-722ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 2738656.

$

$

Currently unavailable

2

Honda 28410-ZE1-712ZD

CASE, STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Engine SN 2738656.

$

$

Not available

3

Honda 28420-ZE1-711

REEL, STARTER (NOT AVAILABLE)

Note: Use up to Engine SN 2738656.

$

$

Not available

4

Honda 28422-ZE1-711

RATCHET, STARTER

Note: Use up to Engine SN 2738656.

$

$

Not available

5

Honda 28423-ZE1-711

SHAFT, RATCHET (NOT AVAILABLE)

Note: Use up to Engine SN 2738656.

$8.49

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE

Note: Use up to Engine SN 2738656.

$4.49

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION

Note: Use up to Engine SN 2738656.

$

$

Not available

8

Honda 28432-ZG0-003

PLATE B, FRICTION

Note: Use up to Engine SN 2738656.

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE1-711

COVER, STARTER REEL

Note: Use up to Engine SN 2738656.

$

$

Not available

10

Honda 28441-ZE1-711

SPRING, FRICTION

Note: Use up to Engine SN 2738656.

$3.49

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-711

SEE PART DETAILS - SUP; SPRING, RETURN
(Superseded to 28442-ZE1-713)

Note: Use up to Engine SN 2738656.

$19.99

$

In Stock, only 1 left!

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN

Note: Use up to Engine SN 2738656.

$19.99

$

In Stock, only 1 left!

0

12

Honda 28461-ZE2-H22

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use up to Engine SN 2738656.

$11.99

$

In Stock, only 3 left!

0

13

Honda 28462-ZE1-711

ROPE, STARTER (N/A: USE P/N 08550-ZG921-11)

Note: Use up to Engine SN 2738656.

$

$

Currently unavailable

14

Honda 90003-ZG0-003

BOLT, REEL COVER

Note: Use up to Engine SN 2738656.

$

$

Not available

15

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use up to Engine SN 2738656.

$3.49

$

In Stock, only 1 left!

0
