HS624 K1 WA/C (SZAJ) - Honda 24" Snow Blower, Made in Japan (SN: SZAJ-2100001 - SZAJ-9999999) CRANKSHAFT + PISTON Parts Diagram

24" Snow Blower, Made in Japan

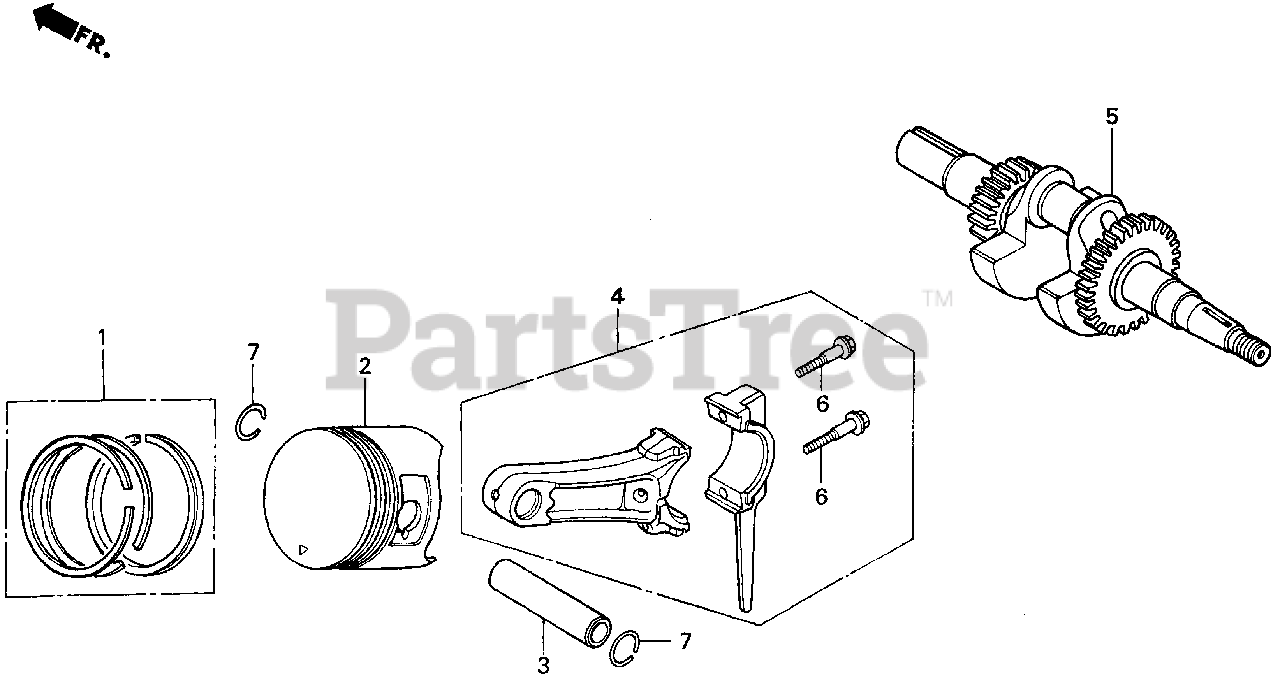

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

Note: Use up to Engine SN 7603338.

$38.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-003

RING SET, PISTON (STD) (TEIKOKU)

Note: (Optional). Use from Engine SN 7603339.

$62.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

RING SET, PISTON (STD.) (NIPPON)

Note: Use from Engine SN 7603339.

$41.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional). Use up to Engine SN 7603338.

$54.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-003

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional). Use from Engine SN 7603339.

$69.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-004

RING SET, PISTON (0.25) (NIPPON)

Note: (Optional). Use from Engine SN 7603339.

$

$

Not available

1

Honda 13012-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional). Use up to Engine SN 7603338.

$

$

Not available

1

Honda 13012-ZL0-003

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional). Use from Engine SN 7603339.

$69.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

RING SET, PISTON (0.50) (NIPPON)

Note: (Optional). Use from Engine SN 7603339.

$

$

Not available

1

Honda 13013-ZF1-023

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (TEIKOKU)
(Superseded to 13013-ZF1-024)

Note: (Optional). Use up to Engine SN 7603338.

$

$

Not available

1

Honda 13013-ZF1-024

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 7603338.

$

$

Not available

1

Honda 13013-ZL0-003

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional). Use from Engine SN 7603339.

$66.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). Use from Engine SN 7603339.

$45.99

$

In Stock, only 1 left!

0

2

Honda 13101-ZF1-010

PISTON (STD)
(Superseded to 13101-ZF1-020)

Note: Use up to Engine SN 7603338.

$57.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZF1-020

PISTON (STD)

Note: Use from Engine SN 7603339.

$57.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF1-010

PISTON (0.25)
(Superseded to 13102-ZF1-020)

Note: (Optional). Use up to Engine SN 7603338.

$57.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF1-020

PISTON (0.25)

Note: (Optional). Use from Engine SN 7603339.

$57.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF1-020

PISTON (0.50)

Note: (Optional).

$57.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZF1-020

PISTON (0.75)

Note: (Optional).

$56.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE1-000

PIN, PISTON

$14.99

$

Usually ships in 3-6 days

0

4

Honda 132A0-ZE1-000

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (TH)
(Superseded to 13200-Z4V-900)

$14.99

$

In Stock, only 2 left!

0

5

Honda 13310-Z1T-880

SEE PART DETAILS - PRI; CRANKSHAFT

$337.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$4.49

$

Usually ships in 3-6 days

0

7

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.99

$

In Stock, Qty 8

0
