HS70 TA (HS70) - Honda Snow Blower, Made in Japan (SN: HS70-1000008 - HS70-9999999) AUGER Parts Diagram

Snow Blower, Made in Japan

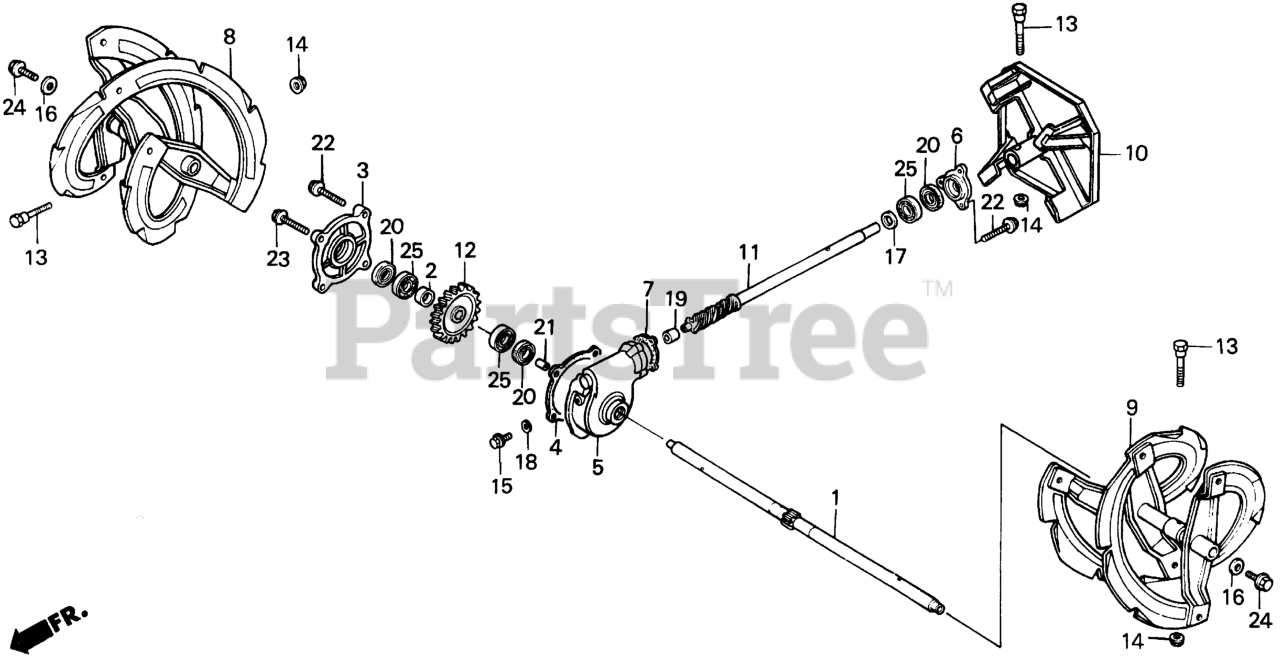

AUGER Parts Diagram

  • Title

1

Honda 23371-732-010

SHAFT, AUGER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 23375-732-000

COLLAR, DISTANCE

$

$

Not available

3

Honda 71211-732-000

COVER, AUGER TRANSMISSION (NOT AVAILABLE)

$

$

Not available

4

Honda 71212-732-000

GASKET, AUGER TRANSMISSION CASE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 71221-732-000

CASE, L. AUGER TRANSMISSION

$

$

Currently unavailable

6

Honda 71222-732-000

CAP, AUGER CASE (NOT AVAILABLE)

$

$

Not available

7

Honda 71223-732-010

GASKET, AUGER CASE CAP (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 72401-732-000

AUGER, R.

$

$

Currently unavailable

9

Honda 72402-732-000

AUGER, L.

$

$

Currently unavailable

10

Honda 72411-736-000

BLOWER (14")

$

$

Currently unavailable

11

Honda 73251-732-000

GEAR, DRIVE (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 73551-732-020

GEAR, DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$5.99

$

In Stock, Qty 17

0

14

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$3.99

$

In Stock, Qty 14

0

16

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$8.49

$

In Stock, only 2 left!

0

17

Honda 90554-728-940

WASHER, THRUST (27X20X1.0)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 91002-732-000

BEARING, NEEDLE (15MM)

$17.99

$

Usually ships in 3-6 days

0

20

Honda 91201-732-003

OIL SEAL (20X32X7)

$10.99

$

In Stock, only 2 left!

0

21

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 14

0

22

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$1.99

$

In Stock, Qty 6

0

23

Honda 95700-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 95701-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2105849).

$2.49

$

In Stock, Qty 7

0

24

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

25

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$19.99

$

In Stock, only 1 left!

0
