HS70 TA (HS70) - Honda Snow Blower, Made in Japan (SN: HS70-1000008 - HS70-9999999) CAMSHAFT Parts Diagram

Snow Blower, Made in Japan

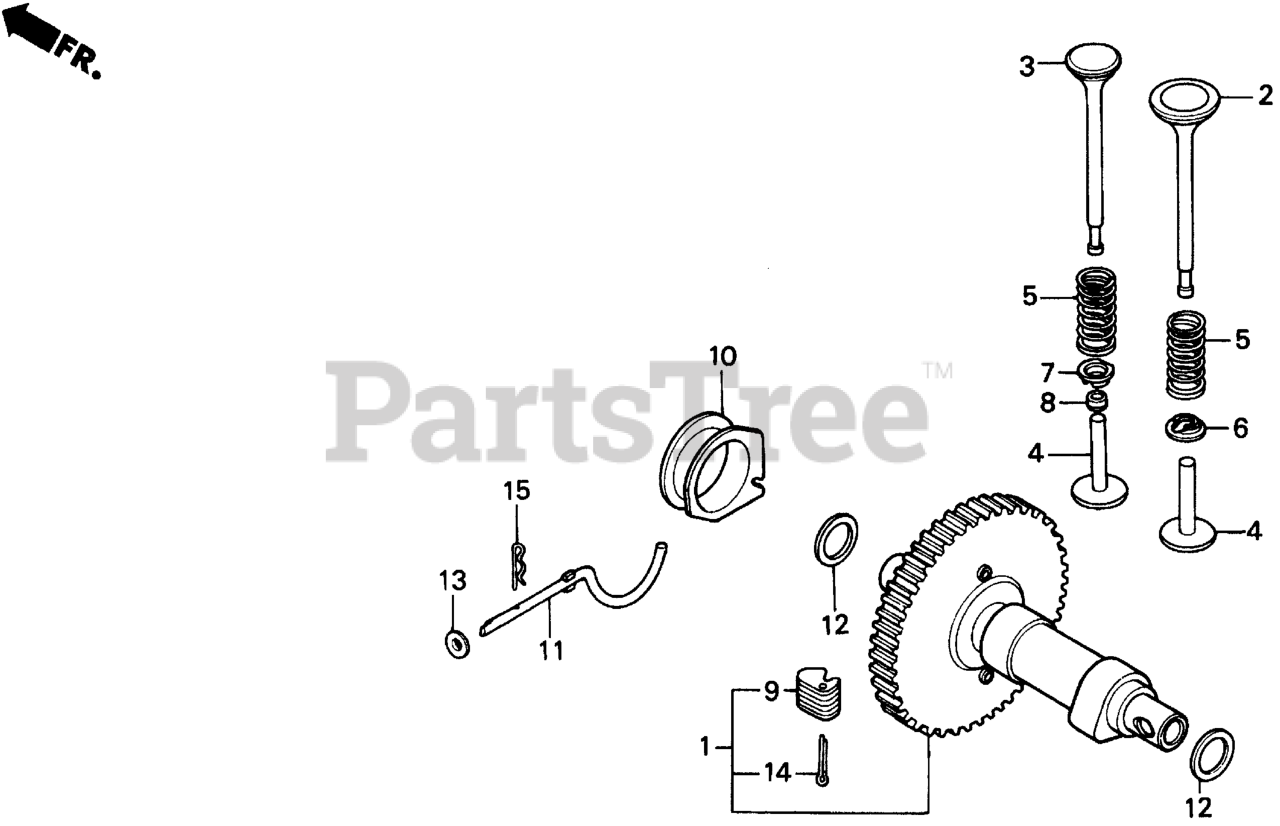

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-889-030

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1038033).

$195.99

$

Usually ships in 3-6 days

0

2

Honda 14711-889-000

VALVE, IN. (Honda Code 0754929).

$43.99

$

Usually ships in 3-6 days

0

3

Honda 14721-889-010

SEE PART DETAILS - SUP; VALVE, EX.
(Superseded to 14721-899-000)

$70.99

$

Usually ships in 3-6 days

0

3

Honda 14721-899-000

SEE PART DETAILS - PRI; VALVE, EX.

$70.99

$

Usually ships in 3-6 days

0

4

Honda 14732-889-000

LIFTER, VALVE (45.89MM) (Honda Code 0754960).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 14737-889-000

LIFTER, VALVE (46.04MM) (Honda Code 0754978).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 14742-889-000

LIFTER, VALVE (46.19MM) (Honda Code 0754986).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 14747-889-000

LIFTER, VALVE (46.34MM) (Honda Code 0754994).

$24.99

$

Usually ships in 3-6 days

0

5

Honda 14751-890-000

SPRING, VALVE (Honda Code 0755009).

$

$

Not available

6

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).

$15.99

$

Usually ships in 3-6 days

0

7

Honda 14771-889-000

RETAINER, VALVE SPRING (Honda Code 1038132).

$

$

Not available

8

Honda 14781-889-000

ROTATOR, EX. VALVE (Honda Code 1038140).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16511-883-300

WEIGHT, GOVERNOR (Honda Code 0636316).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 16531-890-000

SLIDER, GOVERNOR (Honda Code 0755306).

$41.99

$

Usually ships in 3-6 days

0

11

Honda 16541-889-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR (Honda Code 0764217).

$15.99

$

In Stock, only 1 left!

0

12

Honda 90452-883-000

WASHER, THRUST (18MM) (Honda Code 0636928).

$3.99

$

Usually ships in 3-6 days

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

14

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 20+

0

15

Honda 94251-10400

PIN, LOCK (10MM) (Honda Code 0761270).

$1.99

$

Usually ships in 3-6 days

0
