HS70 TA (HS70) - Honda Snow Blower, Made in Japan (SN: HS70-1000008 - HS70-9999999) HANDLEBAR Parts Diagram

Snow Blower, Made in Japan

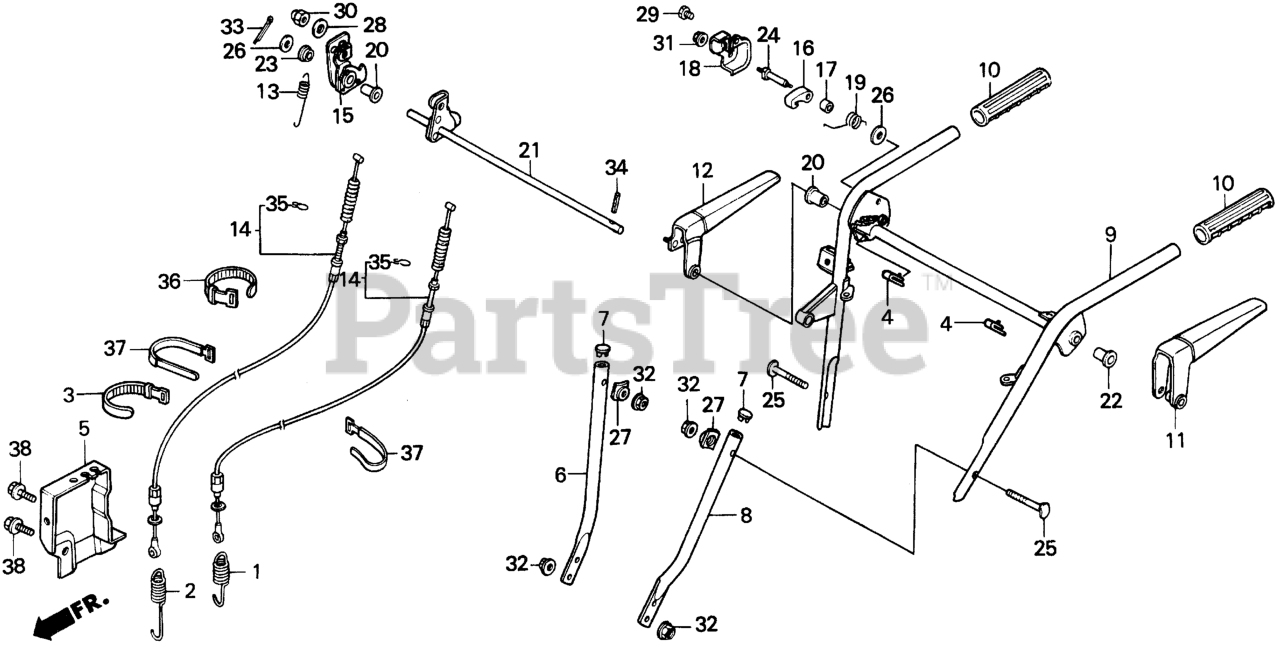

HANDLEBAR Parts Diagram

  • Title

1

Honda 24468-738-000

SPRING, TENSION ROLLER

$

$

Not available

2

Honda 24469-738-000

SPRING, TENSION ROLLER (NOT AVAILABLE)

$

$

Not available

5

Honda 51120-738-000

HOLDER, WIRE

$

$

Not available

6

Honda 53110-738-000

HANDLE, R. (LOWER)

$

$

Not available

7

Honda 53115-732-000

CAP, HANDLE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 53120-738-000

HANDLE, L. (LOWER)

$

$

Not available

9

Honda 53150-736-000

PIPE, HANDLE (UPPER) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 53321-708-000

GRIP, HANDLE

$16.99

$

In Stock, only 2 left!

0

11

Honda 54415-732-000

LEVER, CLUTCH

$

$

Not available

12

Honda 54416-732-000

LEVER, AUGER CLUTCH

$

$

Not available

13

Honda 54418-736-A00

SPRING, CLUTCH LEVER

$

$

Not available

14

Honda 54510-738-000

CABLE, CLUTCH

$

$

Not available

15

Honda 54520-732-010

BOSS, CAM LOCK

$

$

Currently unavailable

16

Honda 54531-732-003

RATCHET, LEVER

$11.99

$

Usually ships in 3-6 days

0

17

Honda 54533-732-000

COLLAR, RATCHET

$4.49

$

Usually ships in 3-6 days

0

18

Honda 54535-732-000

COVER, RATCHET

$

$

Not available

19

Honda 54536-732-000

SEE PART DETAILS - SUP; SPRING, RATCHET
(Superseded to 54536-736-A00)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 54536-736-A00

SEE PART DETAILS - PRI; SPRING, RATCHET

$4.49

$

Usually ships in 3-6 days

0

20

Honda 54538-732-000

BUSH (13MM)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 54550-732-000

SHAFT, CLUTCH LEVER (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 54554-732-000

BUSH (14MM)

$8.99

$

Usually ships in 3-6 days

0

23

Honda 54556-732-000

BUSH (4.5MM)

$

$

Not available

24

Honda 90105-732-000

BOLT, PIVOT (6MM)

$8.99

$

Usually ships in 3-6 days

0

25

Honda 90109-VA4-000

BOLT, HANDLE HOLDER (8X41)
(Superseded to 90113-V10-000)

$8.99

$

In Stock, Qty 20+

0

26

Honda 90412-KZL-840

WASHER (10MM)

$0.99

$

In Stock, only 2 left!

0

26

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

27

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, only 2 left!

0

28

Honda 90539-836-000

WASHER (6MM)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 93000-06006-0B

SEE PART DETAILS - SUP; BOLT, HEX. (6X6) (Honda Code 0397943).

$

$

Currently unavailable

30

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM) (Honda Code 0057893).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

32

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

33

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

34

Honda 94305-30162

PIN, SPRING (3X16)

$2.49

$

In Stock, only 3 left!

0

36

Honda 95014-62100

BAND B1, CABLE

$1.99

$

In Stock, only 1 left!

0

37

Honda 95014-62200

BAND B2, CABLE HARNESS

$2.49

$

Usually ships in 3-6 days

0

38

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$1.99

$

In Stock, Qty 20+

0
