HS70 TA (HS70) - Honda Snow Blower, Made in Japan (SN: HS70-1000008 - HS70-9999999) PISTON Parts Diagram

Snow Blower, Made in Japan

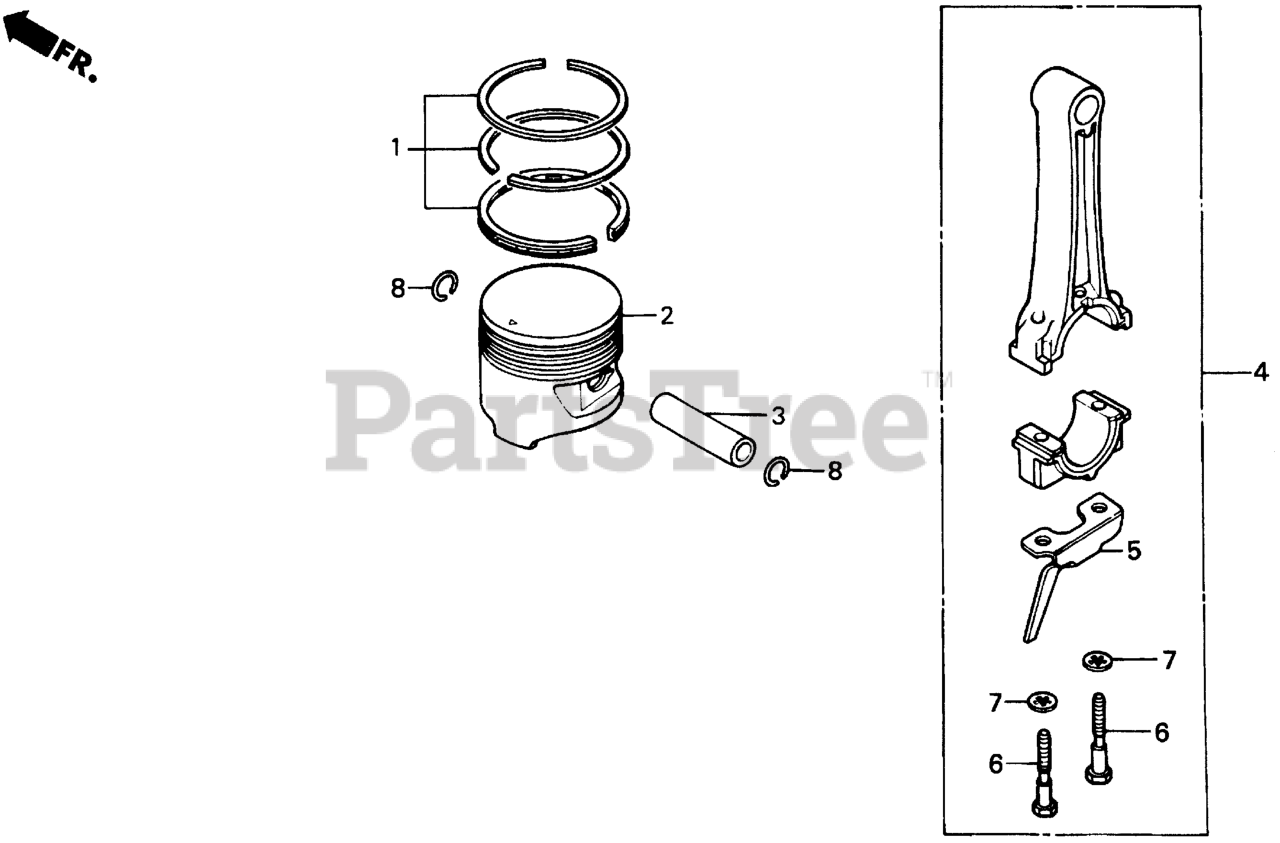

PISTON Parts Diagram

  • Title

1

Honda 13010-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (Honda Code 3098779).

$58.99

$

Usually ships in 3-6 days

0

1

Honda 13010-889-013

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 0906040).

$58.99

$

Usually ships in 3-6 days

0

1

Honda 13011-889-013

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)
(Superseded to 13011-YA1-003)

Note: (Optional)

$

$

Not available

1

Honda 13012-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3178209).

Note: (Optional)

$59.99

$

Usually ships in 3-6 days

0

1

Honda 13013-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 3145034).

Note: (Optional)

$59.99

$

Usually ships in 3-6 days

0

1

Honda 13013-889-013

RING SET (0.75)
(Superseded to 13013-YA1-003)

Note: (Optional)

$59.99

$

Usually ships in 3-6 days

0

2

Honda 13101-889-010

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 0760173).

$111.99

$

Usually ships in 3-6 days

0

2

Honda 13102-889-010

SEE PART DETAILS - PRI; PISTON (OS 0.25) (Honda Code 0760199).

Note: (Optional)

$89.99

$

Usually ships in 3-6 days

0

2

Honda 13103-889-010

SEE PART DETAILS - PRI; PISTON (OS 0.50) (Honda Code 0760215).

Note: (Optional)

$89.99

$

Usually ships in 3-6 days

0

2

Honda 13104-889-010

SEE PART DETAILS - PRI; PISTON (0.75) (Honda Code 0760231).

Note: (Optional)

$89.99

$

Usually ships in 3-6 days

0

3

Honda 13111-369-000

PIN, PISTON (Honda Code 0363655).

$

$

Not available

4

Honda 13200-889-030

ROD ASSY., CONNECTING (Honda Code 0906081).

$175.99

$

Usually ships in 3-6 days

0

4

Honda 13200-889-335

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (UNDER SIZE) (Honda Code 0906099).

Note: (Optional)

$

$

Currently unavailable

5

Honda 13281-889-010

DIPPER, CONNECTING ROD (Honda Code 0906107).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM) (Honda Code 0821272).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90432-889-003

SEE PART DETAILS - PRI; WASHER, LOCK (7MM) (Honda Code 0821280).

$1.99

$

Usually ships in 3-6 days

0

8

Honda 94601-16000

CLIP, PISTON PIN (16MM) (Honda Code 0368357).

$0.99

$

Usually ships in 3-6 days

0
