HS724 K1 TA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-2400001 - SZBE-9999999) CYLINDER Parts Diagram

24" Snow Blower, Made in Japan

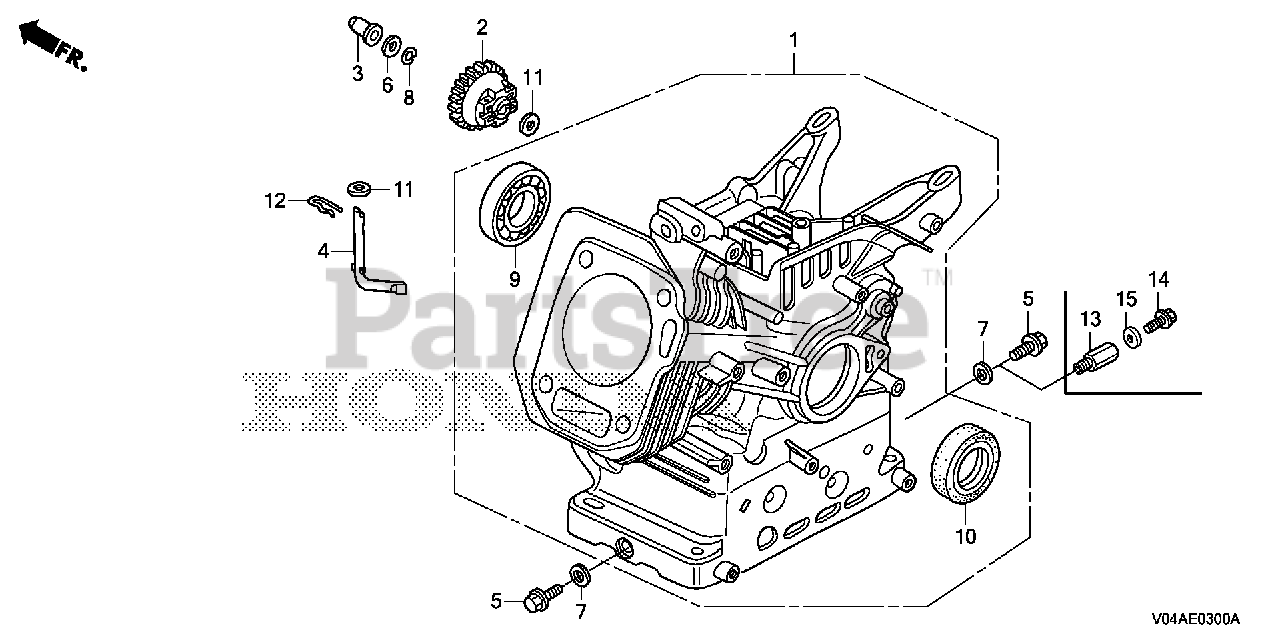

CYLINDER Parts Diagram

  • Title

1

Honda 12000-Z4V-415

SEE PART DETAILS - PRI; CYLINDER ASSY.
(Superseded to 12000-Z4V-425)

$161.99

$

Usually ships in 3-6 days

0

2

Honda 16506-ZL0-000

GOVERNOR ASSY.

$31.99

$

In Stock, only 1 left!

0

3

Honda 16531-ZE1-000

SLIDER, GOVERNOR

$3.49

$

In Stock, only 2 left!

0

4

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

5

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

6

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

$1.99

$

In Stock, Qty 8

0

7

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, only 3 left!

0

8

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 11

0

9

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205TMB) (NTN)

$24.99

$

In Stock, only 1 left!

0

9

Honda 91001-Z4X-003

BEARING, RADIAL BALL (6205) (NSK)

$12.99

$

Usually ships in 3-6 days

0

10

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (NOK)

$8.99

$

In Stock, Qty 9

0

10

Honda 91202-YA0-P01

OIL SEAL (25X41X6) (ARAI) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0

13

Honda 19526-ZK8-H10

EXTENSION, OIL DRAIN

$18.99

$

Usually ships in 3-6 days

0

14

Honda 90103-KN8-000

BOLT, SPECIAL (8MM) (SOURCE: VINTAGE PARTS INC.)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90471-580-000

GASKET (8MM)

$4.49

$

Usually ships in 3-6 days

0
