HS724 WA/A (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1030001 - SZBE-9999999) DRIVEN PULLEY Parts Diagram

24" Snow Blower, Made in Japan

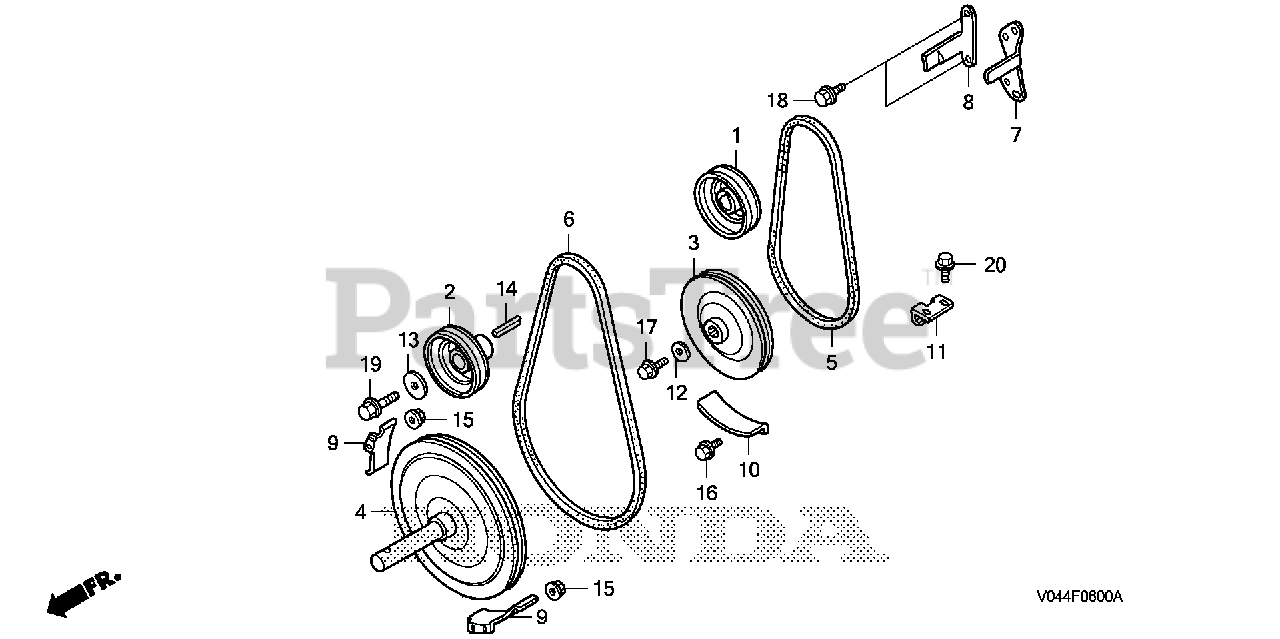

DRIVEN PULLEY Parts Diagram

  • Title

1

Honda 22411-736-000

PULLEY, WHEEL DRIVEN

$57.99

$

Usually ships in 3-6 days

0

2

Honda 22412-736-C10

PULLEY, AUGER DRIVE

$57.99

$

Usually ships in 3-6 days

0

3

Honda 22423-767-000

PULLEY, WHEEL DRIVEN (133MM)

$82.99

$

Usually ships in 3-6 days

0

4

Honda 22424-768-020

SEE PART DETAILS - PRI; PULLEY, AUGER DRIVEN (198MM)

$104.99

$

In Stock, only 2 left!

0

4

Honda 22424-768-020

SEE PART DETAILS - PRI; PULLEY, AUGER DRIVEN (198MM)

Note: Use up to Frame SN 1059034.

$104.99

$

In Stock, only 2 left!

0

5

Honda 22431-767-003

V-BELT (SA-27)

$22.99

$

In Stock, only 1 left!

0

6

Honda 22432-736-A01

SEE PART DETAILS - PRI; V-BELT (LB-33)

$43.99

$

In Stock, only 1 left!

0

7

Honda 22441-767-000

STOPPER, R. BELT (L. SIDE)

$20.99

$

Usually ships in 3-6 days

0

8

Honda 22442-736-A00

STOPPER, L. BELT (R. SIDE)

$15.99

$

Usually ships in 3-6 days

0

9

Honda 22444-768-000

STOPPER, AUGER BELT

$16.99

$

Usually ships in 3-6 days

0

10

Honda 22451-767-000

PROTECTOR, BELT (WHEEL)

$8.49

$

Usually ships in 3-6 days

0

11

Honda 22453-767-C30

GUIDE, BELT

$24.99

$

Usually ships in 3-6 days

0

12

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90534-706-010

SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0177998).

$7.99

$

Usually ships in 3-6 days

0

14

Honda 90741-883-621

KEY (5MM) (Honda Code 0636092).

$8.49

$

In Stock, only 2 left!

0

15

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$2.49

$

In Stock, only 4 left!

0

18

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.99

$

In Stock, Qty 20+

0

19

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 8

0

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use up to Frame SN 1043620.

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

Note: Use from Frame SN 1043621.

$1.49

$

In Stock, Qty 20+

0
