HS724 WA (SZBE) - Honda 24" Snow Blower, Made in Japan (SN: SZBE-1000001 - SZBE-1029999) CYLINDER Parts Diagram

24" Snow Blower, Made in Japan

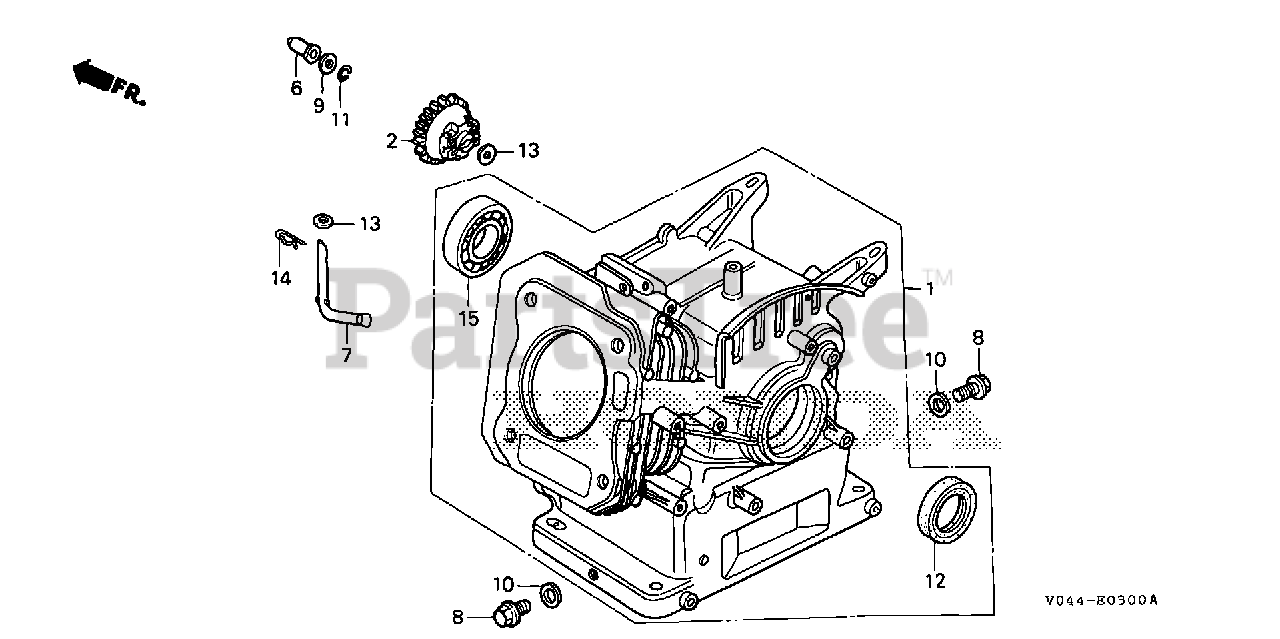

CYLINDER Parts Diagram

  • Title

1

Honda 12000-Z0V-405

CYLINDER ASSY.

$219.99

$

Usually ships in 3-6 days

0

2

Honda 16506-ZL0-000

GOVERNOR ASSY.

$35.99

$

Usually ships in 3-6 days

0

6

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

7

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM (Honda Code 1427277).

$14.99

$

Usually ships in 3-6 days

0

8

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 3 left!

0

9

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

10

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 4 left!

0

12

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

Note: Use from Engine SN 1853342.

$10.99

$

In Stock, only 1 left!

0

12

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

Note: Use up to Engine SN 1853341.

$10.99

$

In Stock, only 1 left!

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

14

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

15

Honda 91001-ZF1-003

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 3684248).

$27.99

$

In Stock, only 3 left!

0
