HS80 K1 TAS (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) PISTON Parts Diagram

Snow Blower, Made in Japan

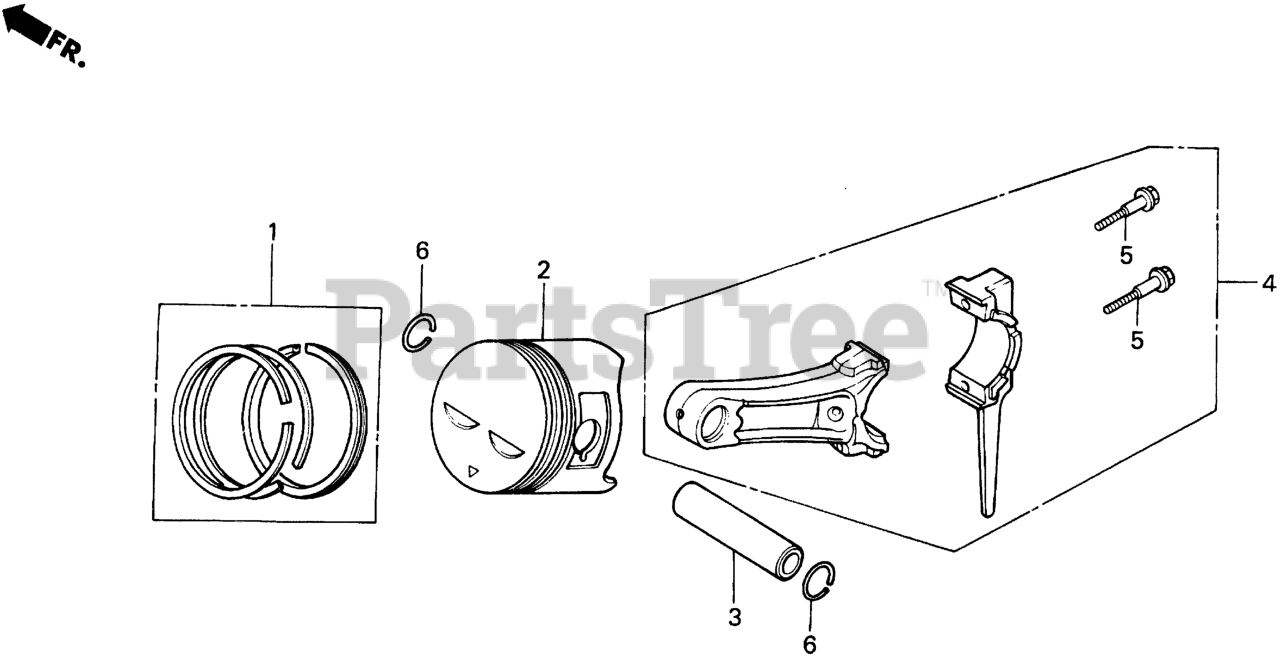

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE2-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 2089688).
(Superseded to 13010-ZE2-013)

Note: Use up to Engine SN 2623677.

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE2-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 2089696).
(Superseded to 13010-ZE2-921)

Note: Use up to Engine SN 1281053.

$52.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZE2-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

$52.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZE2-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 2623677.
(Superseded to 13011-ZE2-921)

Note: (Optional) Use up to Engine SN 2623677.

$

$

Not available

1

Honda 13011-ZE2-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 1281053.
(Superseded to 13011-ZE2-921)

Note: (Optional) Use up to Engine SN 1281053.

$

$

Not available

1

Honda 13011-ZE2-013

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) (NIPPON) Use up to Engine SN 4081304.
(Superseded to 13011-ZE2-921)

Note: (Optional) Use from Engine SN 2623678.

$

$

Not available

1

Honda 13011-ZE2-014

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) Use up to Engine SN 4081304.
(Superseded to 13011-ZE2-921)

Note: (Optional)

$

$

Not available

1

Honda 13012-ZE2-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 2623677.
(Superseded to 13012-ZE2-921)

Note: (Optional) Use up to Engine SN 2623677.

$57.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE2-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 1281053.
(Superseded to 13012-ZE2-921)

Note: (Optional) Use up to Engine SN 1281053.

$57.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) Use from Engine SN 4081305.

Note: Use from Engine SN 2623678. (Optional)

$57.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE2-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) Use up to Engine SN 1242764.
(Superseded to 13013-ZE2-013)

Note: (Optional) Use up to Engine SN 2623677.

$

$

Not available

1

Honda 13013-ZE2-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) Use up to Engine SN 1281053.
(Superseded to 13013-ZE2-013)

Note: (Optional) Use up to Engine SN 1281053.

$

$

Not available

1

Honda 13013-ZE2-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON) Use up to Engine SN 4081304.

Note: (Optional) Use from Engine SN 2623678.

$

$

Not available

1

Honda 13013-ZE2-014

SEE PART DETAILS - SUP; RING SET, PISTON (0.75)

Note: (Optional) Use from Engine SN 1281054.

$

$

Currently unavailable

2

Honda 13101-ZE2-000

SEE PART DETAILS - SUP; PISTON (STD)

Note: Use up to Engine SN 1263002.

$

$

Not available

2

Honda 13101-ZE2-010

SEE PART DETAILS - PRI; PISTON (STD)

Note: Use from Engine SN 1263003.

$

$

Not available

2

Honda 13102-ZE2-010

PISTON (OS 0.25) (Honda Code 3112737).

Note: (Optional)

$62.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE2-000

PISTON (0.50)

Note: (Optional) Use up to Engine SN 1263002.

$

$

Currently unavailable

2

Honda 13103-ZE2-010

PISTON (OS 0.50) (Honda Code 3099066).

Note: (Optional) Use from Engine SN 1263003.

$59.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE2-000

SEE PART DETAILS - SUP; PISTON (OS 0.75) Use up to Engine SN 1263002.

Note: (Optional) Use up to Engine SN 1263002.

$

$

Currently unavailable

2

Honda 13104-ZE2-010

SEE PART DETAILS - PRI; PISTON (OS 0.75)

Note: (Optional) Use from Engine SN 1263003.

$

$

Currently unavailable

3

Honda 13111-ZE2-000

PIN, PISTON (Honda Code 2025484).

$15.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE2-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD) (Honda Code 6835250).
(Superseded to 13200-Z1D-900)

$34.99

$

In Stock, only 2 left!

0

4

Honda 13200-ZE2-305

ROD ASSY., CONNECTING (Honda Code 2110153). (US 0.25)

Note: (Optional)

$142.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1D-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$34.99

$

In Stock, only 2 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$5.49

$

In Stock, only 3 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.99

$

In Stock, Qty 20+

0
