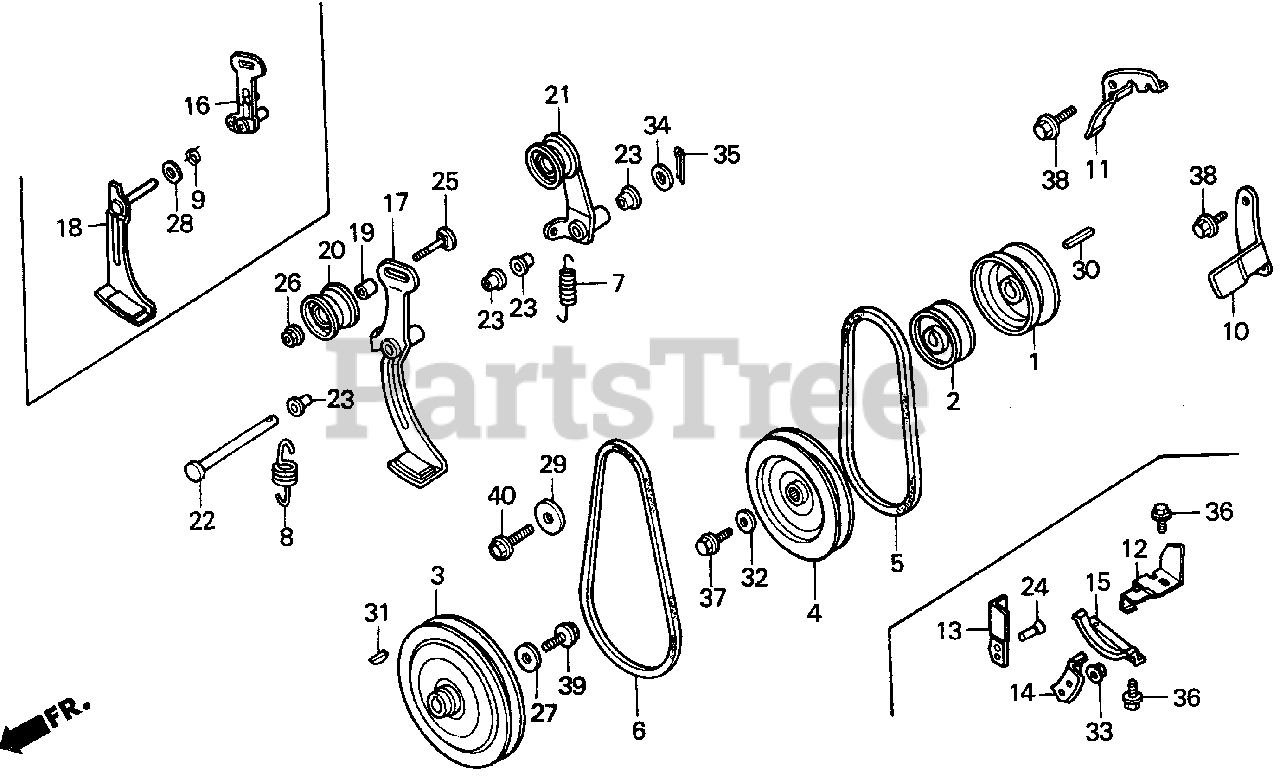

HS80 K1 WA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) DRIVE PULLEY Parts Diagram

Snow Blower, Made in Japan

DRIVE PULLEY Parts Diagram

  • Title

1

Honda 22411-738-000

PULLEY, WHEEL DRIVEN

$48.99

$

In Stock, only 1 left!

0

2

Honda 22412-738-000

PULLEY, AUGER DRIVE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 22415-736-010

PULLEY, AUGER DRIVEN

$

$

Not available

4

Honda 22416-736-000

PULLEY, WHEEL DRIVEN

$

$

Not available

5

Honda 22431-738-A01

V-BELT (SA-32)

$20.99

$

In Stock, only 1 left!

0

6

Honda 22432-738-C31

SEE PART DETAILS - SUP; V-BELT (SB-35)
(Superseded to 22432-V03-000)

$37.99

$

In Stock, only 1 left!

0

7

Honda 22437-738-A00

SPRING, TENSIONER RETURN (WHEEL) (NOT AVAILABLE)

$

$

Not available

8

Honda 22438-738-A00

SPRING, AUGER TENSIONER RETURN

$8.99

$

In Stock, only 1 left!

0

9

Honda 22439-736-A00

SPRING, BRAKE ARM

$3.99

$

In Stock, only 1 left!

0

10

Honda 22441-738-A00

STOPPER, R. BELT

$

$

Not available

11

Honda 22442-738-A00

STOPPER, L. BELT

$33.99

$

Usually ships in 3-6 days

0

12

Honda 22443-738-C10

GUIDE, BELT

$

$

Not available

13

Honda 22444-736-A00

STOPPER, L. BELT

$14.99

$

Usually ships in 3-6 days

0

14

Honda 22445-736-A00

STOPPER, R. BELT

$

$

Not available

15

Honda 22451-736-A00

STOPPER, BELT (WHEEL)

$

$

Not available

16

Honda 22511-738-A00

ARM, AUGER TENSIONER

$30.99

$

Usually ships in 3-6 days

0

18

Honda 22512-738-C10

ARM, AUGER BRAKE

$

$

Currently unavailable

19

Honda 22514-736-000

COLLAR, ROLLER

$4.99

$

Usually ships in 3-6 days

0

20

Honda 22530-736-A00

ROLLER

$39.99

$

In Stock, only 1 left!

0

21

Honda 22520-738-A00

ARM, WHEEL TENSIONER

$

$

Currently unavailable

23

Honda 22524-730-000

BUSH, TENSIONER ARM

$9.99

$

In Stock, only 1 left!

0

24

Honda 75556-605-010

BOLT, DOOR LOCK STRIKER

$8.49

$

Usually ships in 3-6 days

0

25

Honda 90101-736-000

BOLT, ROLLER

$5.99

$

Usually ships in 3-6 days

0

26

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0)

$11.99

$

Usually ships in 3-6 days

0

28

Honda 90501-736-A00

WASHER, BRAKE ARM

$3.99

$

Usually ships in 3-6 days

0

29

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

30

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$9.49

$

Usually ships in 3-6 days

0

32

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$3.99

$

Usually ships in 3-6 days

0

33

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

34

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, FLAT (12MM)

$

$

Not available

35

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

36

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

36

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

36

Honda 95701-06014-08

BOLT, FLANGE (6X14)

Note: Use from Frame SN 1121957.

$2.49

$

In Stock, Qty 20+

0

37

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

38

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

38

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

39

Honda 95701-08022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X22)

$2.99

$

In Stock, Qty 10

0

40

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

Usually ships in 3-6 days

0
