HS80 K1 WA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) HS80 CYLINDER K-K1 Parts Diagram

Snow Blower, Made in Japan

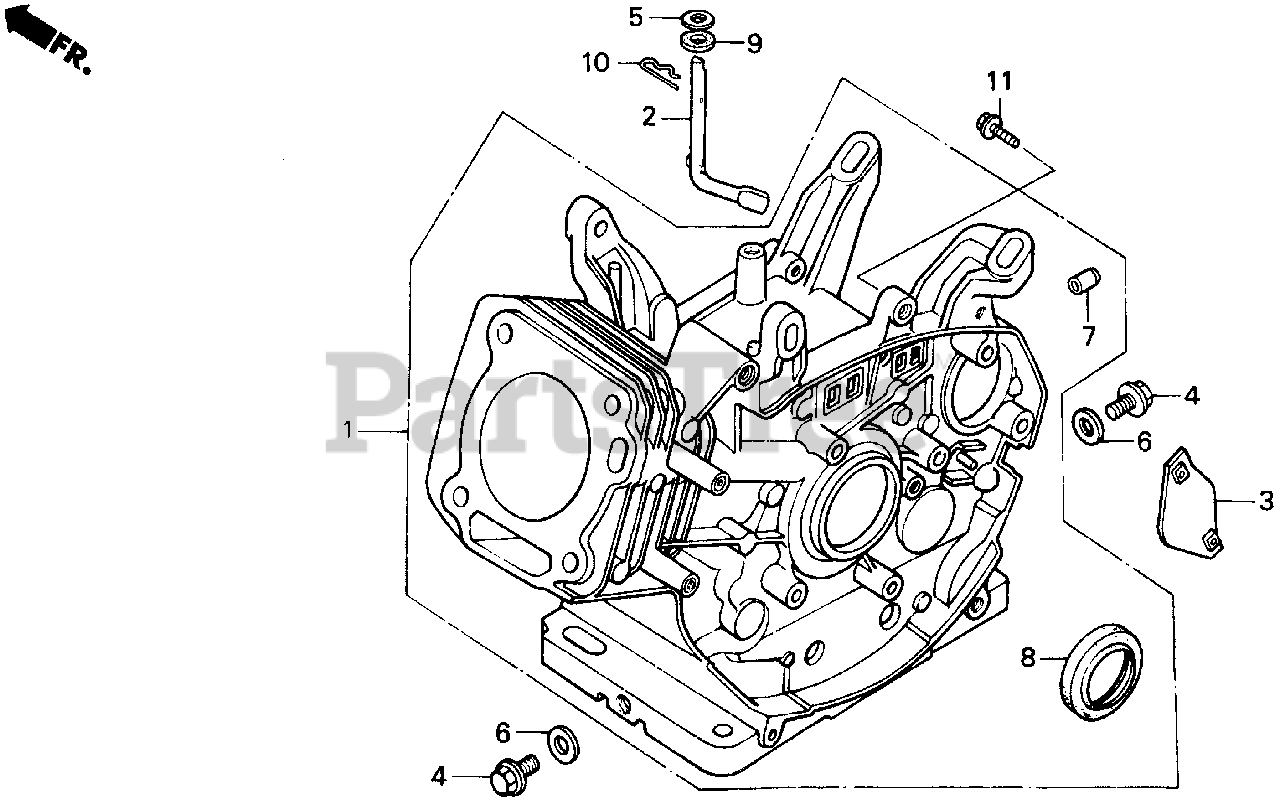

HS80 CYLINDER K-K1 Parts Diagram

  • Title

1

Honda 120A0-ZE2-861

CYLINDER ASSY.

Note: Use up to Engine SN 1351265.

$907.99

$

Usually ships in 3-6 days

0

1

Honda 12000-ZE2-865

SEE PART DETAILS - SUP; CYLINDER ASSY.

Note: Use from Engine SN 1351266.

$

$

Not available

2

Honda 16541-ZE2-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$11.99

$

Usually ships in 3-6 days

0

3

Honda 31618-ZE2-780

PLATE, COVER

$

$

Not available

4

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 8

0

5

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

In Stock, only 1 left!

0

6

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM)

$3.49

$

Usually ships in 3-6 days

0

7

Honda 90801-ZE2-003

PLUG, SEALING

Note: Use from Engine SN 1094202.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 91201-890-003

OIL SEAL (30X46X8)

$10.99

$

In Stock, Qty 7

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$4.99

$

In Stock, only 1 left!

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$4.99

$

In Stock, only 1 left!

0

10

Honda 94251-08000

PIN, LOCK (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 95701-08032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 6

0
