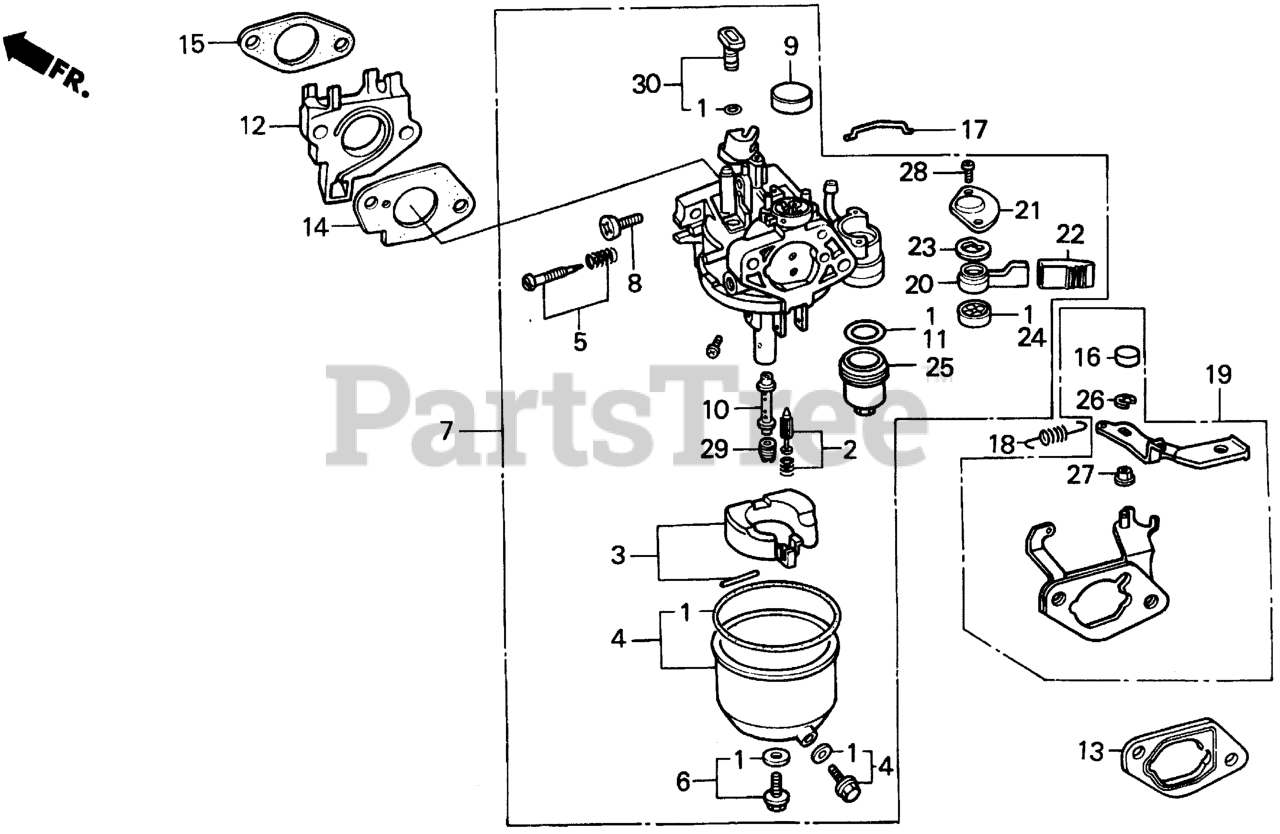

HS80 K1 WAS (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) CARBURETOR Parts Diagram

Snow Blower, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-811

SEE PART DETAILS - SUP; GASKET SET (Honda Code 2107845).
(Superseded to 16010-ZE2-812)

$21.99

$

In Stock, Qty 8

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDE 16173-001-004) (INCLUDES 16173-001-004)

$21.99

$

In Stock, Qty 8

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$49.99

$

In Stock, Qty 6

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$55.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$49.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$16.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, only 2 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

In Stock, only 2 left!

0

7

Honda 16100-ZE2-H21

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE17A C)
(Superseded to 16100-ZE2-H23)

Note: Use up to Engine SN 1100276.

$155.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZE2-H22

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE17A D)
(Superseded to 16100-ZE2-H23)

Note: Use up to Engine SN 1100276. Use from Engine SN 1100277 to 1388430.

$155.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZE2-H23

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE17A E)

Note: Use up to Engine SN 1100276. Use from Engine SN 1100277.

$155.99

$

Usually ships in 3-6 days

0

8

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$20.99

$

In Stock, only 2 left!

0

9

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$7.49

$

Usually ships in 3-6 days

0

10

Honda 16166-ZE2-781

NOZZLE, MAIN

$38.99

$

Usually ships in 3-6 days

0

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.99

$

In Stock, Qty 20+

0

12

Honda 16211-ZE2-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$10.99

$

In Stock, Qty 9

0

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

Note: Use from Engine SN 1160854. Use up to Engine SN 1160853.

$13.99

$

In Stock, Qty 13

0

14

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357307).
(Superseded to 16221-ZA0-800)

$2.99

$

In Stock, Qty 20+

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.99

$

In Stock, Qty 20+

0

15

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 20+

0

16

Honda 16252-ZA1-000

SEE PART DETAILS - SUP; CAP, CHOKE LEVER
(Superseded to 16252-ZA1-010)

$1.99

$

In Stock, only 2 left!

0

16

Honda 16252-ZA1-010

SEE PART DETAILS - PRI; CAP, CHOKE LEVER

$1.99

$

In Stock, only 2 left!

0

17

Honda 16264-ZE2-780

ROD, CHOKE

$2.99

$

In Stock, only 4 left!

0

18

Honda 16268-893-000

SPRING, CHOKE RETURN

$4.49

$

In Stock, Qty 9

0

19

Honda 16590-ZE2-780

SEE PART DETAILS - SUP; STAY ASSY., CHOKE CONTROL

$

$

Currently unavailable

20

Honda 16953-ZE1-711

SEE PART DETAILS - SUP; LEVER, VALVE (Honda Code 1950666).
(Superseded to 16953-ZE1-405)

$

$

Not available

21

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.99

$

In Stock, Qty 8

0

22

Honda 16955-ZE2-H21

CAP, LEVER

Note: Use from Engine SN BE17A C.

$12.99

$

Usually ships in 3-6 days

0

23

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.99

$

In Stock, only 2 left!

0

24

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

$4.99

$

In Stock, only 3 left!

0

24

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.99

$

In Stock, only 3 left!

0

25

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$24.99

$

In Stock, only 2 left!

0

26

Honda 38689-680-960

E-RING (4MM)

$4.49

$

Usually ships in 3-6 days

0

27

Honda 91502-ZA0-310

SEE PART DETAILS - PRI; BUSH, CHOKE LEVER

$3.49

$

Usually ships in 3-6 days

0

28

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

$1.49

$

In Stock, Qty 8

0

29

Honda 99101-124-0880

JET, MAIN (#88) Use from Engine SN BE27A B to BE27A E.

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

29

Honda 99101-124-0900

JET, MAIN (#90) Use up to Engine SN BE27A E.

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

29

Honda 99101-124-0920

JET, MAIN (#92) Use from Engine SN BB36B A.

$13.99

$

Usually ships in 3-6 days

0

30

Honda 99204-ZE2-0380

JET SET, PILOT (#38) (Honda Code 2159820).

$25.99

$

Usually ships in 3-6 days

0
