HS80 TA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1000001 - SA1-1100000) DRIVE PULLEY Parts Diagram

Snow Blower, Made in Japan

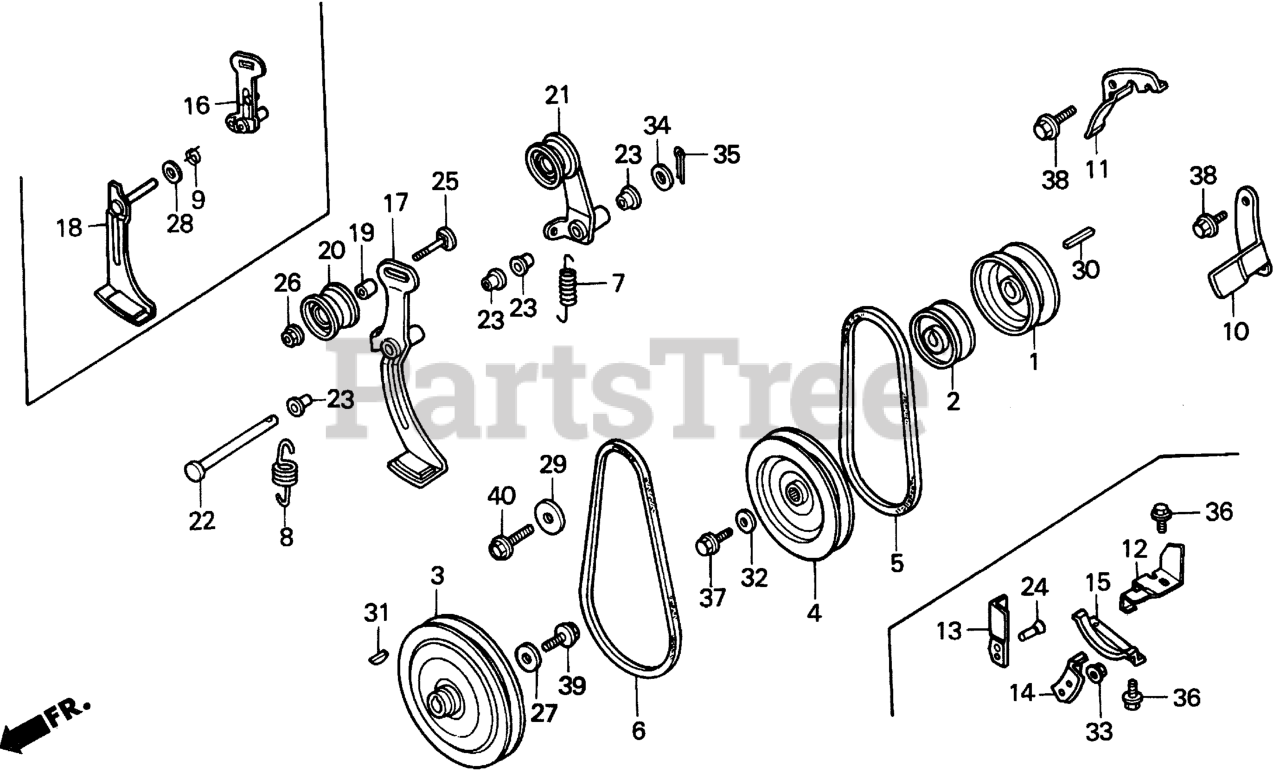

DRIVE PULLEY Parts Diagram

  • Title

1

Honda 22411-738-000

PULLEY, WHEEL DRIVEN

$58.99

$

Usually ships in 3-6 days

0

2

Honda 22412-738-700

PULLEY, AUGER DRIVE

$58.99

$

Usually ships in 3-6 days

0

3

Honda 22415-736-000

PULLEY, AUGER DRIVEN

Note: Use up to Frame SN 1015840.

$

$

Not available

3

Honda 22415-736-010

PULLEY, AUGER DRIVEN

Note: Use from Frame SN 1015841.

$

$

Not available

4

Honda 22416-736-000

PULLEY, WHEEL DRIVEN

$

$

Not available

5

Honda 22431-738-A01

V-BELT (SA-32)

$24.99

$

In Stock, only 2 left!

0

6

Honda 22432-736-A01

SEE PART DETAILS - PRI; V-BELT (LB-33)

$43.99

$

In Stock, only 1 left!

0

7

Honda 22437-738-A00

SPRING, TENSIONER RETURN (WHEEL) (NOT AVAILABLE)

$

$

Not available

8

Honda 22438-738-A00

SPRING, AUGER TENSIONER RETURN

$10.99

$

In Stock, only 2 left!

0

9

Honda 22439-736-A00

SPRING, BRAKE ARM

$4.99

$

In Stock, Qty 7

0

10

Honda 22441-738-A00

STOPPER, R. BELT

$

$

Not available

11

Honda 22442-738-A00

STOPPER, L. BELT (R. SIDE)

$40.99

$

Usually ships in 3-6 days

0

12

Honda 22443-738-A00

GUIDE, BELT

$20.99

$

Usually ships in 3-6 days

0

13

Honda 22444-736-A00

STOPPER, L. BELT

$

$

Not available

14

Honda 22445-736-A00

STOPPER, R. BELT

$

$

Not available

15

Honda 22451-736-A00

STOPPER, BELT (WHEEL)

$

$

Not available

16

Honda 22511-738-A00

ARM, AUGER TENSIONER

$36.99

$

Usually ships in 3-6 days

0

18

Honda 22512-767-C30

SEE PART DETAILS - PRI; ARM, AUGER BRAKE

$40.99

$

In Stock, only 1 left!

0

19

Honda 22514-736-000

COLLAR, ROLLER

$5.99

$

Usually ships in 3-6 days

0

20

Honda 22530-736-A00

ROLLER

$48.99

$

In Stock, only 2 left!

0

21

Honda 22520-738-A00

ARM, WHEEL TENSIONER

$

$

Currently unavailable

23

Honda 22524-730-000

BUSH, TENSIONER ARM

$11.99

$

In Stock, only 3 left!

0

24

Honda 75556-605-010

BOLT, DOOR LOCK STRIKER

$9.49

$

Usually ships in 3-6 days

0

25

Honda 90101-736-000

BOLT, ROLLER

$6.99

$

Usually ships in 3-6 days

0

26

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$1.49

$

In Stock, Qty 20+

0

27

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0) (Honda Code 0347823).

$12.99

$

Usually ships in 3-6 days

0

28

Honda 90501-736-A00

WASHER, BRAKE ARM

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90534-706-010

SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0177998).

$7.99

$

Usually ships in 3-6 days

0

30

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (Honda Code 1064039).

$10.99

$

Usually ships in 3-6 days

0

31

Honda 90753-732-000

KEY, SPECIAL WOODRUFF (16X12)

Note: Use up to Frame SN 1015840.

$

$

Not available

32

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$4.49

$

Usually ships in 3-6 days

0

33

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

34

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

35

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

36

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

37

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$2.49

$

In Stock, only 4 left!

0

38

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.99

$

In Stock, Qty 20+

0

39

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use up to Frame SN 1015840.

$2.99

$

In Stock, Qty 20+

0

39

Honda 95701-08022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X22) Use from Engine SN 1609607.

Note: Use from Frame SN 1015841.

$3.49

$

In Stock, Qty 12

0

40

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 8

0
