HS80 WAS (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1000001 - SA1-1100000) STARTER MOTOR Parts Diagram

Snow Blower, Made in Japan

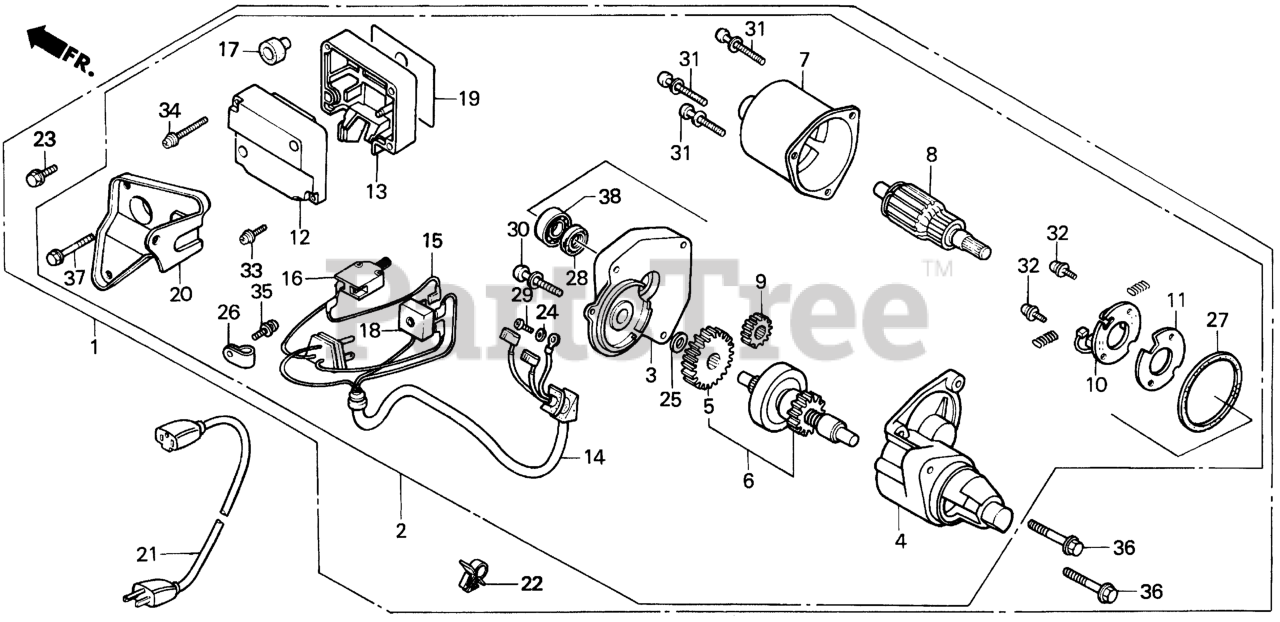

STARTER MOTOR Parts Diagram

  • Title

2

Honda 31200-ZE2-781

MOTOR ASSY., STARTER (A.C.) Use up to Engine SN 1171448.

Note: Use up to Engine SN 1171448.

$

$

Currently unavailable

3

Honda 31211-ZE2-781

HOUSING, CENTER Use up to Engine SN 1171448.

Note: Use up to Engine SN 1171448.

$

$

Not available

4

Honda 31212-ZE2-781

HOUSING, PINION Use up to Engine SN 1171448.

Note: Use up to Engine SN 1171448.

$

$

Not available

5

Honda 31213-ZE1-781

GEAR, REDUCTION Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$90.99

$

Usually ships in 3-6 days

0

6

Honda 31214-ZE2-781

CLUTCH, OVERRUNNING Use up to Engine SN 1171448.

Note: Use up to Engine SN 1171448.

$

$

Not available

7

Honda 31216-ZE1-781

YOKE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Currently unavailable

8

Honda 31217-ZE2-781

ARMATURE Use up to Engine SN 1171448.

Note: Use up to Engine SN 1171448.

$

$

Currently unavailable

9

Honda 31218-ZE1-781

GEAR, DRIVE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$54.99

$

Usually ships in 3-6 days

0

10

Honda 31230-ZE1-781

HOLDER ASSY., BRUSH Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Currently unavailable

11

Honda 31237-ZE1-781

SHEET, HOLDER Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Not available

12

Honda 31601-ZE1-781

COVER Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Not available

13

Honda 31602-ZE1-781

CASE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Currently unavailable

14

Honda 31605-ZE1-781

WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Currently unavailable

15

Honda 31606-ZE1-781

SUB-WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$13.99

$

Usually ships in 3-6 days

0

16

Honda 31611-ZE1-781

SWITCH, STARTER (Honda Code 2299584). (A.C. 380V-16A)

Note: Use up to Engine SN 1171448.

$68.99

$

Usually ships in 3-6 days

0

17

Honda 31612-ZE1-781

CAP Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$8.99

$

Usually ships in 3-6 days

0

18

Honda 31614-ZE2-781

DIODE Use up to Engine SN 1171448.

Note: Use up to Engine SN 1171448.

$

$

Not available

19

Honda 31616-ZE1-781

PLATE, CAUTION Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Not available

20

Honda 31617-ZE2-781

BRACKET, SWITCH BOX Use up to Engine SN 1171448.

Note: Use up to Engine SN 1171448.

$21.99

$

Usually ships in 3-6 days

0

21

Honda 32410-ZE1-780

WIRE, POWER Use up to Engine SN 2056819.

Note: (Optional) Use up to Engine SN 1171448.

$

$

Currently unavailable

22

Honda 90682-959-661

CLIP B, CABLE (Honda Code 1064021).

Note: Use up to Engine SN 1171448.

$3.99

$

In Stock, only 4 left!

0

23

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Engine SN 1171448.

$1.99

$

In Stock, Qty 13

0

24

Honda 90401-ZE1-781

WASHER, STAR (4MM) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Not available

25

Honda 90402-ZE1-781

WASHER Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Not available

26

Honda 91475-ZE1-781

CLIP, CORD (5/16) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Not available

27

Honda 91601-ZE1-781

GASKET Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$

$

Not available

28

Honda 91602-ZE1-781

OIL SEAL Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$4.99

$

In Stock, only 1 left!

0

29

Honda 93500-04006-3C

SCREW, PAN (4X6) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$1.99

$

Usually ships in 3-6 days

0

30

Honda 93892-05016-08

SCREW-WASHER (5X16) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$1.49

$

Usually ships in 3-6 days

0

31

Honda 93892-05030-18

SCREW-WASHER (5X30) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$1.99

$

Usually ships in 3-6 days

0

32

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12) Use up to Engine SN 2056819.
(Superseded to 93893-04012-08)

Note: Use up to Engine SN 1171448.

$1.99

$

Usually ships in 3-6 days

0

33

Honda 93893-04025-08

SCREW-WASHER (4X25) (NOT AVAILABLE)

Note: Use up to Engine SN 1171448.

$0.99

$

Usually ships in 3-6 days

0

34

Honda 93893-04030-18

SEE PART DETAILS - PRI; SCREW-WASHER (4X30) (Honda Code 2299683).

Note: Use up to Engine SN 1171448.

$1.49

$

Usually ships in 3-6 days

0

35

Honda 93893-05016-08

SCREW-WASHER (5X16) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$1.49

$

Usually ships in 3-6 days

0

36

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

Note: Use up to Engine SN 1171448.

$1.49

$

In Stock, Qty 7

0

37

Honda 95701-06040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2105872).

Note: Use up to Engine SN 1171448.

$2.49

$

Usually ships in 3-6 days

0

38

Honda 96130-60013-10

BEARING, RADIAL BALL Use up to Engine SN 2056819.

Note: Use up to Engine SN 1171448.

$18.99

$

Usually ships in 3-6 days

0
