HS828 K1 TA/A (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2042181 - SZAK-2099999) CARBURETOR Parts Diagram

28" Snow Blower, Made in Japan

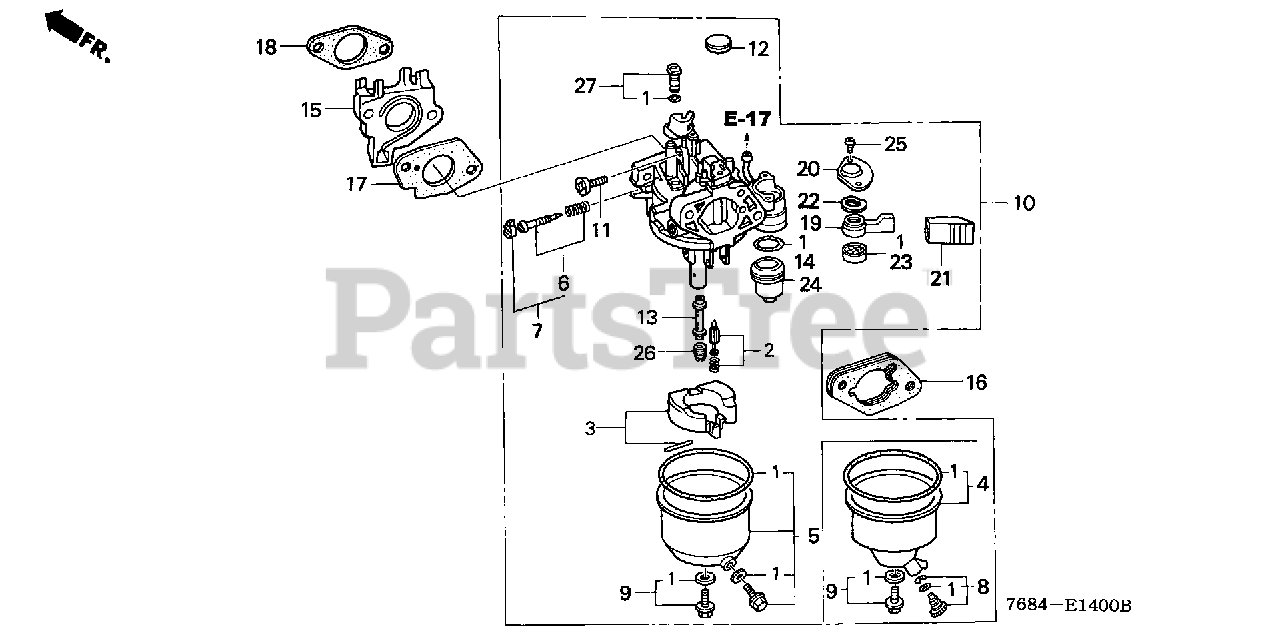

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-A20

GASKET SET

$22.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$50.99

$

In Stock, Qty 7

0

3

Honda 16013-ZA0-931

FLOAT SET

$24.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE2-A20

CHAMBER SET, FLOAT

$64.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZH7-W01

SCREW SET, PILOT

$23.99

$

In Stock, only 1 left!

0

8

Honda 16024-ZH7-A20

SCREW SET, DRAIN

$12.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$15.99

$

In Stock, only 3 left!

0

9

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$15.99

$

In Stock, only 3 left!

0

10

Honda 16100-ZE2-J41

CARBURETOR ASSY. (BE70G A)

$127.99

$

In Stock, only 2 left!

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$20.99

$

In Stock, only 2 left!

0

12

Honda 16148-141-881

CAP, CHOKE DUST

$7.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZE2-781

NOZZLE, MAIN

$39.99

$

Usually ships in 3-6 days

0

14

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$8.49

$

In Stock, Qty 12

0

15

Honda 16211-ZE2-010

INSULATOR, CARBURETOR

$10.99

$

In Stock, Qty 12

0

16

Honda 16220-ZA0-702

SPACER, CARBURETOR

$13.99

$

In Stock, Qty 20+

0

17

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

18

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 14

0

19

Honda 16953-ZE1-712

LEVER, PETCOCK

$12.99

$

In Stock, only 1 left!

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.99

$

In Stock, only 2 left!

0

21

Honda 16955-ZE2-H21

CAP, LEVER

$13.99

$

Usually ships in 3-6 days

0

22

Honda 16956-ZE1-811

SPRING, PETCOCK LEVER

$4.99

$

In Stock, Qty 8

0

23

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

Usually ships in 3-6 days

0

24

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$24.99

$

In Stock, only 3 left!

0

25

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 9

0

26

Honda 99101-ZH8-0900

JET, MAIN (#90)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZH8-0880

JET, MAIN (#88)

Note: (Optional).

$9.49

$

In Stock, only 2 left!

0

26

Honda 99101-ZH8-0920

JET, MAIN (#92)

$9.49

$

In Stock, only 1 left!

0

27

Honda 99204-ZE2-0380

JET SET, PILOT (#38)

$26.99

$

Usually ships in 3-6 days

0
