HS828 K1 TAS/C (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2120001 - SZAK-9999999) AUGER HOUSING Parts Diagram

28" Snow Blower, Made in Japan

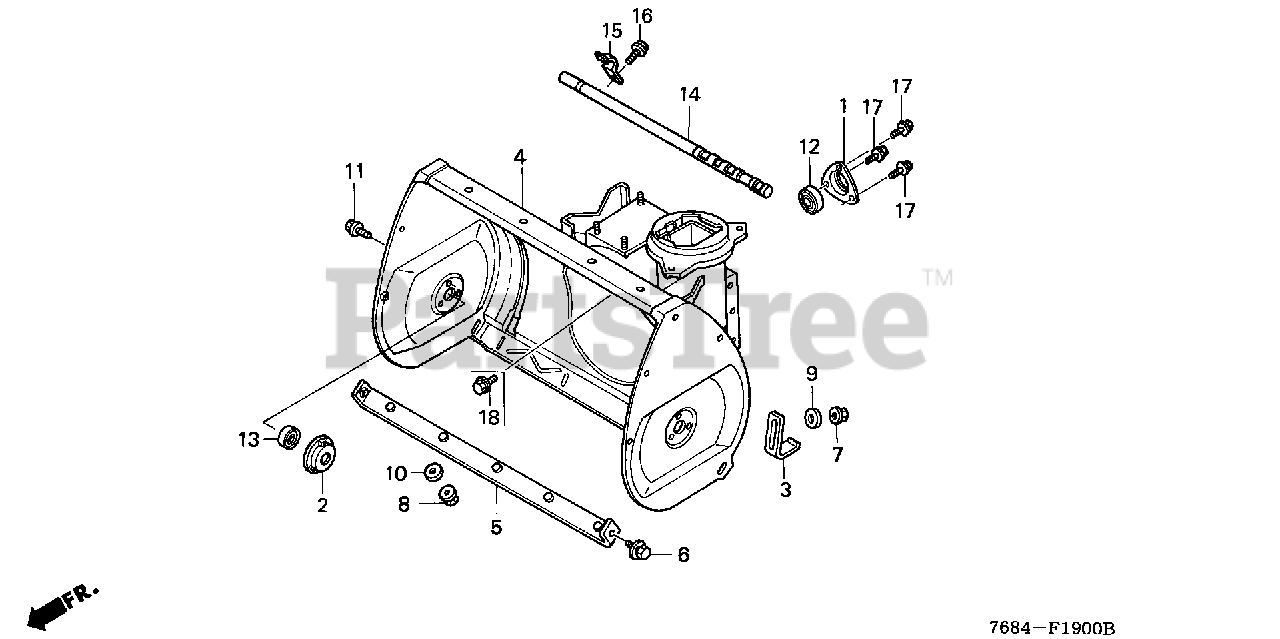

AUGER HOUSING Parts Diagram

  • Title

1

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$21.99

$

In Stock, only 3 left!

0

2

Honda 73256-732-000

HOLDER, AUGER BEARING

$21.99

$

In Stock, only 2 left!

0

3

Honda 76153-743-611

SEE PART DETAILS - PRI; SKID, AUGER

$31.99

$

In Stock, Qty 8

0

4

Honda 76710-768-E44

HOUSING, AUGER

$

$

Not available

5

Honda 76713-768-000

GUARD, AUGER HOUSING

$73.99

$

In Stock, only 1 left!

0

6

Honda 93404-08016-00

BOLT-WASHER (8X16)

$1.99

$

In Stock, Qty 6

0

7

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

10

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

12

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$21.99

$

In Stock, Qty 7

0

13

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$21.99

$

In Stock, only 2 left!

0

17

Honda 90118-958-003

BOLT, FLANGE (6X12)

$4.49

$

Usually ships in 3-6 days

0
