HS828 K1 WA (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2000001 - SZAK-2042180) AUGER HOUSING Parts Diagram

28" Snow Blower, Made in Japan

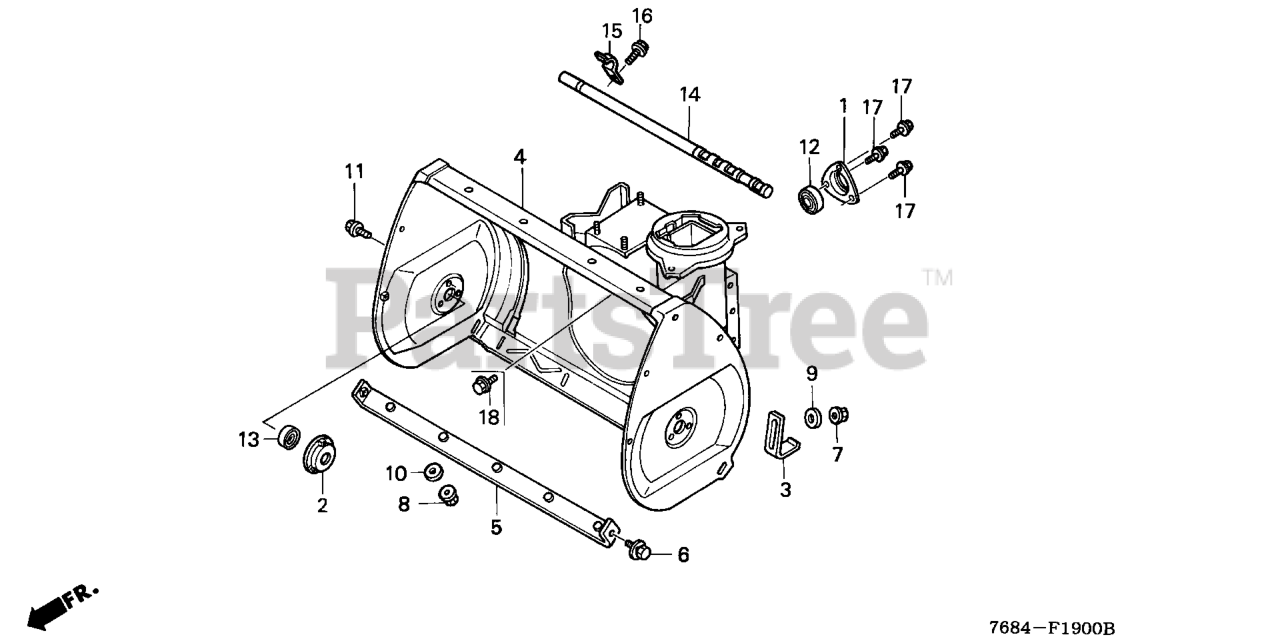

AUGER HOUSING Parts Diagram

  • Title

1

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$22.99

$

In Stock, only 3 left!

0

2

Honda 73256-732-000

HOLDER, AUGER BEARING

$22.99

$

In Stock, only 2 left!

0

3

Honda 76153-743-610

SEE PART DETAILS - SUP; SKID, AUGER
(Superseded to 76153-743-611)

$34.99

$

In Stock, Qty 8

0

3

Honda 76153-743-611

SEE PART DETAILS - PRI; SKID, AUGER

$34.99

$

In Stock, Qty 8

0

4

Honda 76710-768-E40

HOUSING, AUGER

$

$

Currently unavailable

5

Honda 76713-768-000

GUARD, AUGER HOUSING

$78.99

$

In Stock, only 1 left!

0

6

Honda 93404-08016-00

BOLT-WASHER (8X16)

$1.99

$

In Stock, Qty 6

0

7

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

9

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

10

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

12

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$23.99

$

In Stock, Qty 7

0

13

Honda 96150-62030-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, only 2 left!

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
