HS828 K1 WA (SZAK) - Honda 28" Snow Blower, Made in Japan (SN: SZAK-2000001 - SZAK-2042180) CYLINDER HEAD Parts Diagram

28" Snow Blower, Made in Japan

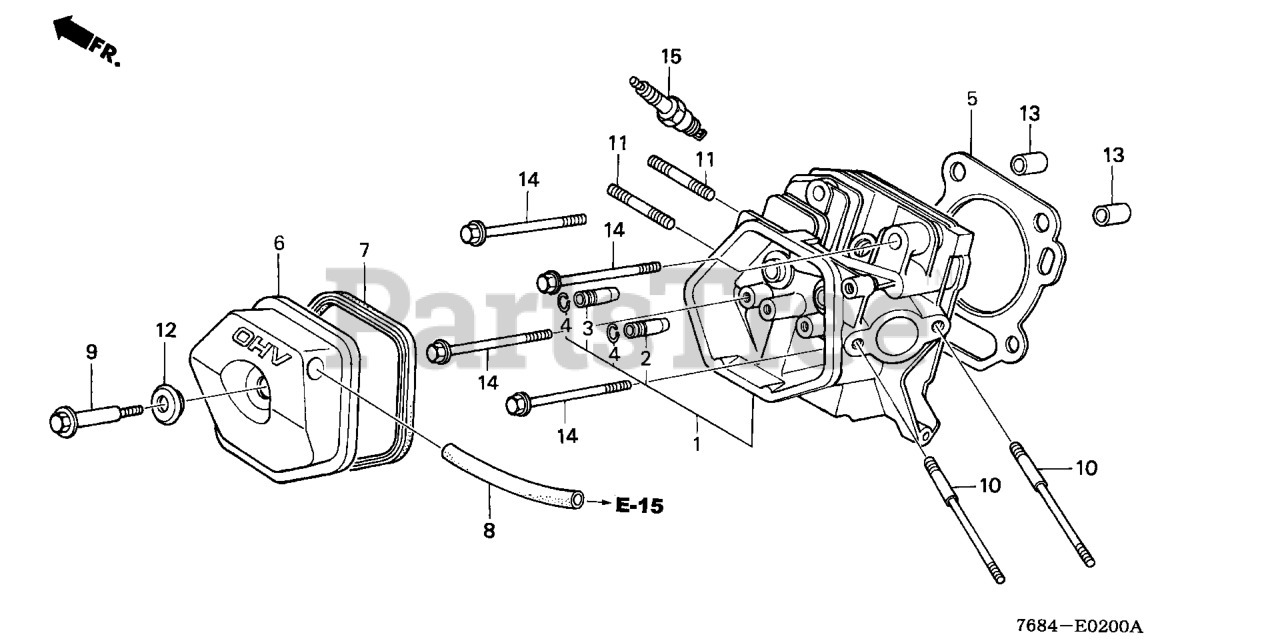

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZH9-405

SEE PART DETAILS - PRI; CYLINDER HEAD

$383.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

Note: (Optional)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.99

$

In Stock, only 3 left!

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3678539).
(Superseded to 12251-ZE2-801)

$16.99

$

In Stock, only 2 left!

0

5

Honda 12251-ZE2-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$16.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE2-020

COVER, HEAD

$71.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$13.99

$

In Stock, Qty 15

0

8

Honda 15721-ZE2-780

TUBE, BREATHER

$6.99

$

Usually ships in 3-6 days

0

9

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$7.49

$

In Stock, Qty 5

0

10

Honda 90042-ZE2-000

BOLT, STUD (8X123) (Honda Code 2027043).

$9.99

$

In Stock, only 1 left!

0

11

Honda 90047-ZE2-000

SEE PART DETAILS - SUP; BOLT, STUD (Honda Code 2027050).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$7.49

$

In Stock, Qty 9

0

13

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

In Stock, only 2 left!

0

14

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.99

$

In Stock, only 3 left!

0

15

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0
