HS928 K1 WAS (SAVJ) - Honda 28" Snow Blower, Made in Japan (SN: SAVJ-5000001 - SAVJ-9999999) RECOIL STARTER Parts Diagram

28" Snow Blower, Made in Japan

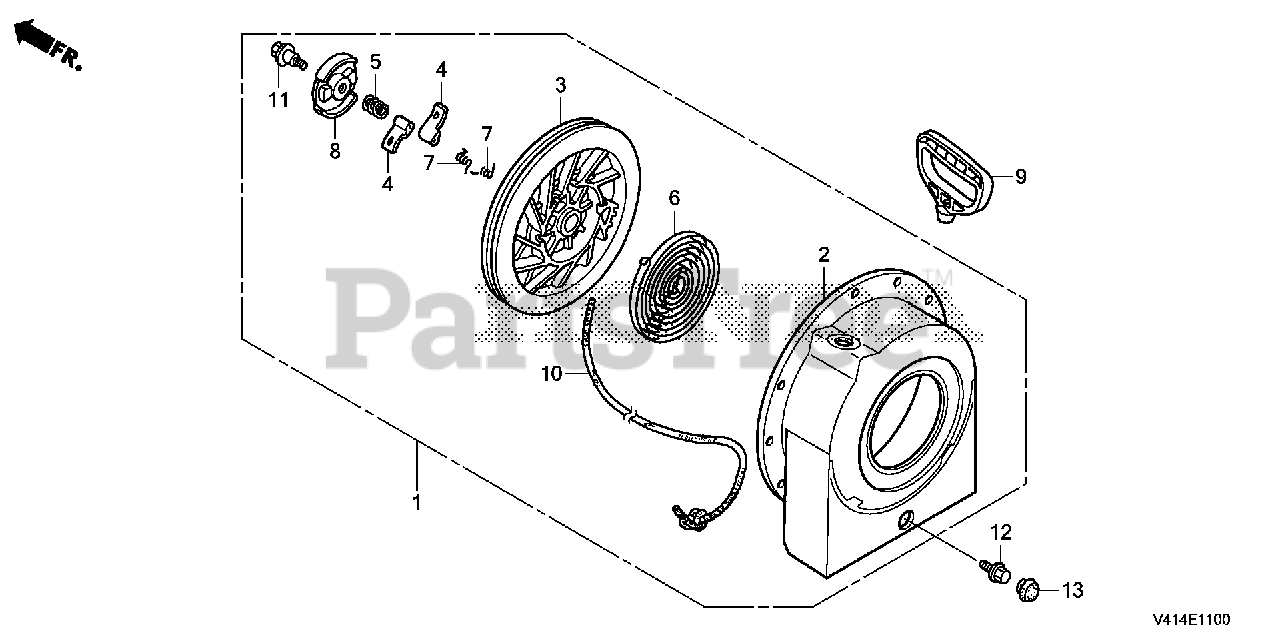

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z1C-307ZA

STARTER ASSY., RECOIL *R280* (COO) (POWER RED)

$121.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z1C-H41ZA

CASE, RECOIL STARTER *R280* (POWER RED)

$118.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE8-821

PULLEY, RECOIL STARTER

$55.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$8.99

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.99

$

In Stock, Qty 11

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$21.99

$

In Stock, Qty 5

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$6.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$16.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-H22

GRIP, STARTER

$14.99

$

In Stock, only 2 left!

0

10

Honda 28462-ZE2-H21

ROPE, RECOIL STARTER (NA USE ALT:08550-ZG921-11)

$

$

Currently unavailable

11

Honda 90004-ZE2-W01

SCREW, CENTER

$4.99

$

In Stock, Qty 9

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

13

Honda 91618-Z1D-H00

GROMMET B, CONTROL WIRE

$4.49

$

Usually ships in 3-6 days

0
